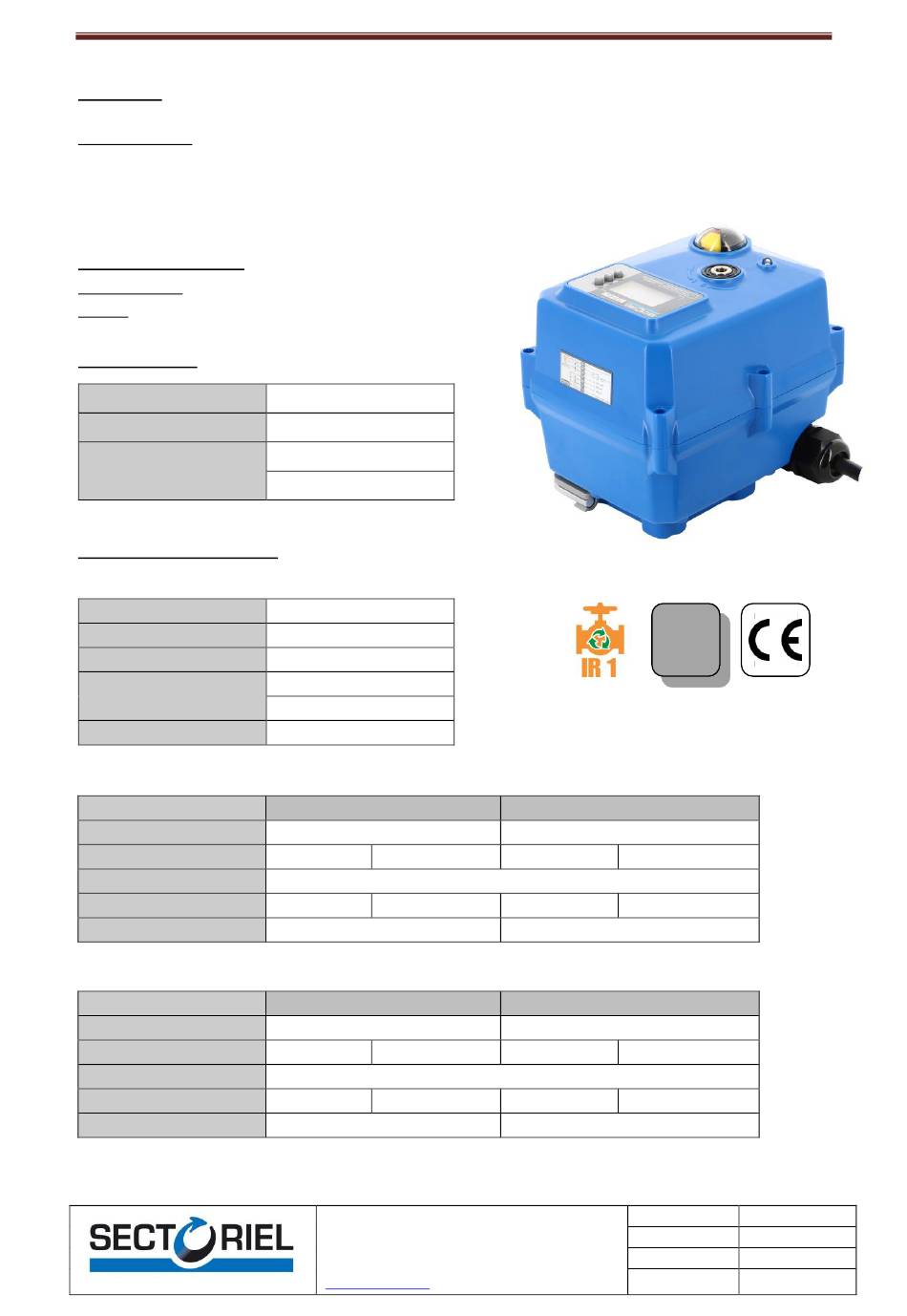

TCR-05-11-20-40T CONTROL ELECTRICAL ACTUATOR
FEATURES
The TCR-T electric actuator is intended for motorising ¼ turn valves with a torque of 50, 110, 200 or 400 Nm.
Control function: this motor is used to control the position of the valve depending upon an a 4-20mA or 0-10V input
signal. With a compact construction and plastic housing, they are especially well suited for motorising small size ball
valves. IP67 leak-tightness: to be used indoors and, possibly, outdoors under a shelter. Possible installation in parallel.
Manual control with a key. This actuator offers many functions (see § parameter setting menu) Parameter setting is done
directly on the screen.
AVAILABLE MODELS
Supply voltages : 230V AC, 24V AC/DC.
Control : 4-20mA, 0-20mA, 2-10V, 0-10V.
LIMITS OF USE
IP Code
Ambient temperature
Service factor
MECHANICAL FEATURES
Gear box
Torques
Angle of rotation
Declutching
Override control
Actuator
Torques (Nm)
Voltage
Adjustment signal
Manoeuvring time (s)
ISO 5211:
Actuator
Torques (Nm)
Voltage
Adjustment signal
Manoeuvring time (s)
ISO 5211:
Information given as an indication only, and subject to possible modifications
IP 67
- 20°C / +60°C
S4 - 50% (TCR 05-11T)
S3 - 85% (TCR 20-40T)
treated steel pinions
50 - 110 - 200 - 400 Nm
90° +/- 2°
Without (TCR 05-11T)
With (TCR 20-40T)
By key
TCR 05T
50
24V AC - DC
95-265V AC-DC
4-20mA, 0-20mA, 2-10V, 0-10V
12
12
F05/F07 - star 14
TCR 20T
200
24V AC - DC
95-265V AC-DC
4-20mA, 0-20mA, 2-10V, 0-10V
25
25
F07/F10 - star 22
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.com
/ Email: sectoriel@sectoriel.fr
IP
67
TCR 11T
110
24V AC - DC
95-265V AC-DC
10
10
F05/F07 - star 17
TCR 40T
400
24V AC - DC
95-265V AC-DC
25
25
F07/F10 - star 22
Pages
Ref.
Rev.
Date
1/10
FT2415B ENG
05
10/2023
