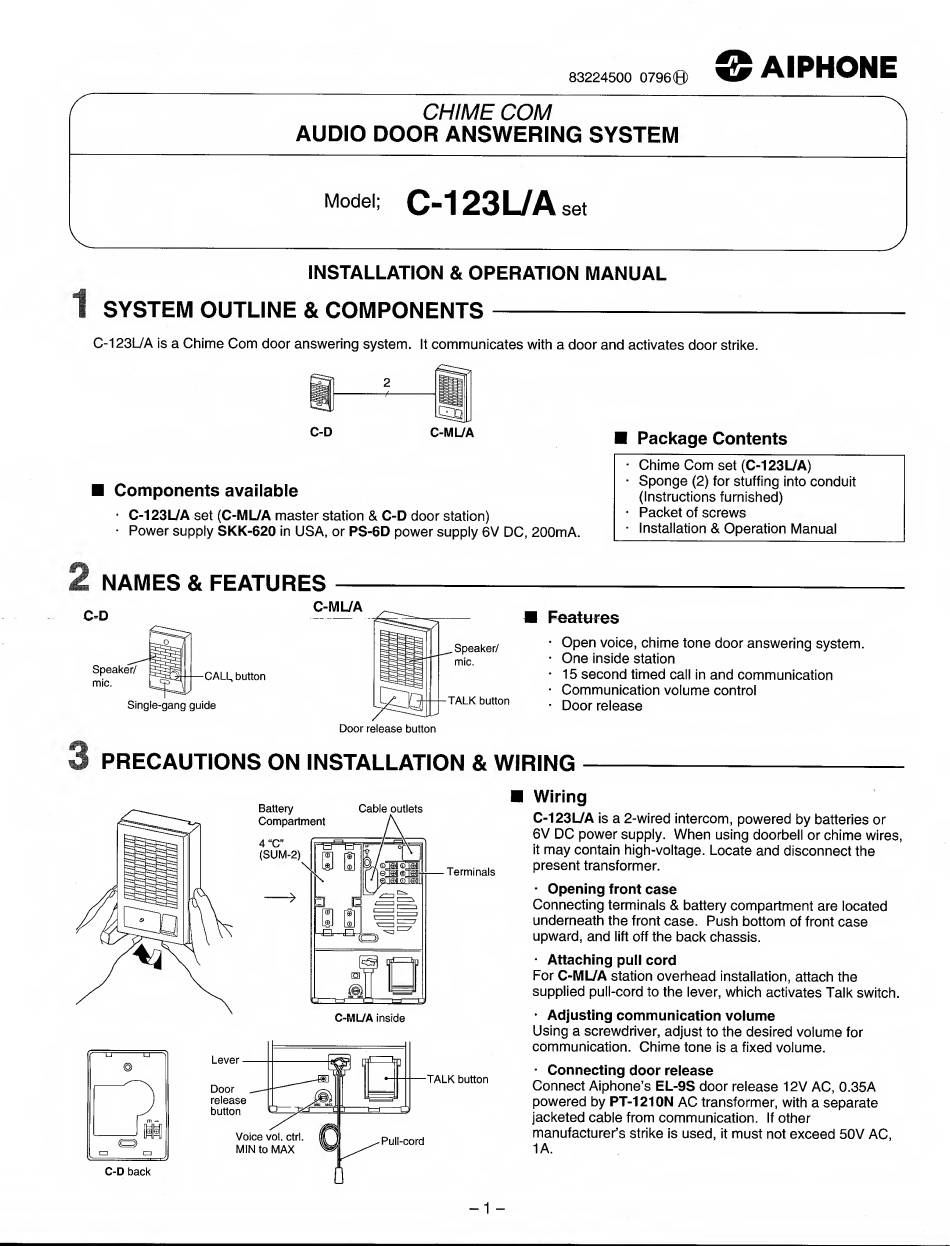

Aiphone C-123L/A set Installation & Operation Manual

83224500 0796®
O AIPHONE
CHIME COM
AUDIO DOOR ANSWERING SYSTEM
Model;
C-123L/A
set
INSTALLATION & OPERATION MANUAL
1 SYSTEM OUTLINE & COMPONENTS-
C-123L7A is a Chime Com door answering system. It communicates with a door and activates door strike.
C-D C-ML/A
■ Components available
• C-123L/A set (C-ML/A master station & C-D door station)
• Power supply SKK-620 in USA, or PS-6D power supply 6V DC, 200mA.
■ Package Contents
• Chime Com set (C-123L/A)
• Sponge (2) for stuffing into conduit
(Instructions furnished)
• Packet of screws
• Installation & Operation Manual
NAMES & FEATURES
Features
• Open voice, chime tone door answering system.
• One inside station
• 15 second timed call in and communication
• Communication volume control
• Door release
3
PRECAUTIONS ON INSTALLATION & WIRING
■ Wiring
C-123L/A is a 2-wired intercom, powered by batteries or
6V DC power supply. When using doorbell or chime wires,
it may contain high-voltage. Locate and disconnect the
present transformer.
* Opening front case
Connecting terminals & battery compartment are located
underneath the front case. Push bottom of front case
upward, and lift off the back chassis.
* Attaching pull cord
For C-ML/A station overhead installation, attach the
supplied pull-cord to the lever, which activates Talk switch.
* Adjusting communication volume
Using a screwdriver, adjust to the desired volume for
communication. Chime tone is a fixed volume.
- Connecting door release
Connect Aiphone's EL-9S door release 12V AC, 0.35A
powered by PT-1210N AC transformer, with a separate
jacketed cable from communication. If other
manufacturer's strike is used, it must not exceed 50V AC,
1 A.
-1
