- Page 1 Cronotermostato Digitale EVO.DIN Manuale d’Uso MANUAL USER DIGITAL CHRONOTHERMOSTAT...
-
Page 3: Table Of Contents
ON-OFF command from the keyboard Page Timing setting Page Telephone dialer Page Advanced programming Page Type of regulation Page Display during operation Page Technical characteristics Page Reference standards Page Winter programmes Page Summer programmes Page - 27 - Manual User EVO.DIN... -
Page 4: Safety Warnings

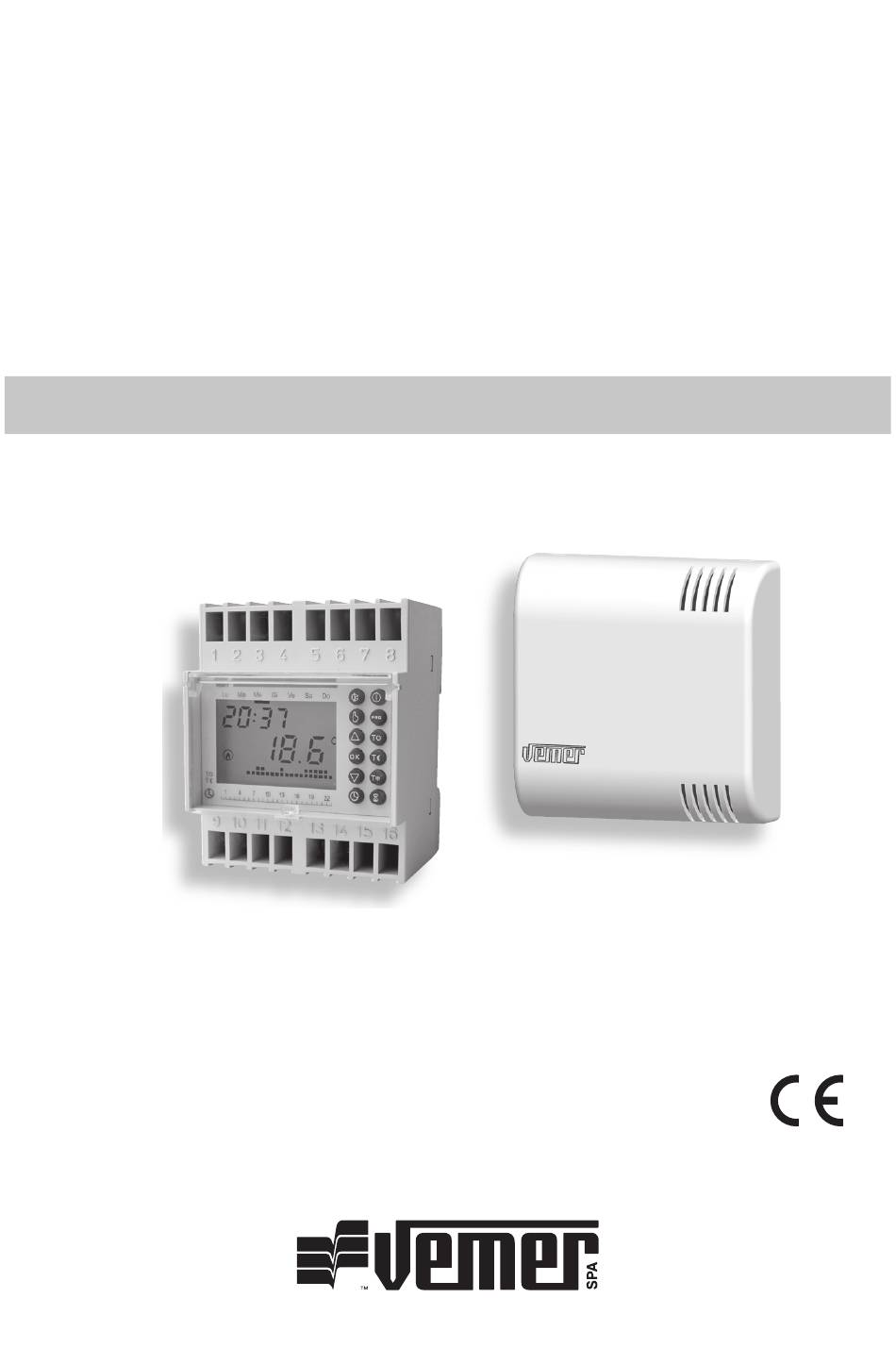

EVO.DIN is a panel mounted electronic chronothermostat in a standardised DIN 4 modules container, designed for temperature regulation both in heating (winter) and cooling (summer) mode. Code Model Description VE016200 EVO.DIN DIN-rail chronothermostat with external probe - 4 DIN modules... -
Page 5: Device Dimensions
DEVICE DIMENSIONS PROBE DIMENSIONS 15.5 - 29 - Manual User EVO.DIN... -
Page 6: Probe Installation
To remove the cover, press with a tool (screwdriver) on the holes of the base on the wall (A) and pull. To replace the cover, insert on proper spaces (B) and rotate until closing. Note: the wall-mounting probe can be replaced by the X.Temp probe, that you can buy separately. - 30 - Manual User EVO.DIN... -
Page 7: Control Elements / Indications On Display
Key " ": allows you to set a timing Key "R" (reachable from the terminal 16 only with a sharp object): it initializes the chronothermostat and cancels the programmed settings starting from Monday 00:00 and from the default programs. - 31 - Manual User EVO.DIN... -
Page 8: Connection Diagram
Display indication "Day" field "Clock" field "Timing" field "Activate cooling" field "Manual operation activated" field "Activate heating" field "Programme set" field "Alphanumeric”" field "Ambient temperature" field CONNECTION DIAGRAM - 32 - Manual User EVO.DIN... -
Page 9: Initial Start-Up / Reset
Use the keys to set the values and the key to confirm and move to the next parameter. The parameters to be entered are: seconds (only synchronization at 00), minutes, hours, year, month, day. - 33 - Manual User EVO.DIN... - Page 10 (the instrument exits the date and time setting even if no key is pressed for at least 20 seconds). On leaving in field (22), the ambient temperature will be displayed. - 34 - Manual User EVO.DIN...
- Page 11 Automatic solar-daylight saving time switching EVO.DIN automatically changes the time from daylight saving to solar on the last Sunday in March at 02:00 and from solar to daylight saving on the last Sunday in October at 03:00. This function can be disabled or the date and hour in which the time switch occurs can be changed.
-
Page 12: Programmes Setting
After selecting the correct programme, it is possible to move to the next day by pressing key If no programme satisfies the user’s requirements, select any programme and press again. At this point the segment of field (20) relative to the current hour will flash. - 36 - Manual User EVO.DIN... - Page 13 “Px” flashing in field (22). Press key to confirm the programme for that day and move on to the next day, and so on until Sunday is reached, after that the system returns to normal operation. - 37 - Manual User EVO.DIN...
-
Page 14: Temperatures Setting
“t2=” appears), the above temperature value will flash in field (22). Use keys to change the value and key to confirm the change and return to normal operation. The setting limits for these sets are shown in the technical characteristics. - 38 - Manual User EVO.DIN... -
Page 15: Manual Operation
2 keys again can change the temperature setting. You switch from the manual program to the automatic program simply by pressing the key . You switch from manual to automatic operation by pressing the key for at least 3 seconds. - 39 - Manual User EVO.DIN... -
Page 16: Summer / Winter Operation
The programme moves to the operating mode require when is pressed or 20 seconds after the last operation. The summer operating potential reflects that of winter. This means that all the parameters can be set by following the procedures described in this instruction manual. - 40 - Manual User EVO.DIN... -
Page 17: On-Off Command From The Keyboard
When this key is pressed a second time, the instrument returns to the previous status (which is automatic operation in this example). The relay is not switched on or off immediately, but at the end of the minute that follows the command. - 41 - Manual User EVO.DIN... -
Page 18: Timing Setting
“ ” to set the unit of measurement (h = hours, d= days). Finally press the key “ ” to confirm. When a timing is active the field (16) " " is on. - 42 - Manual User EVO.DIN... -
Page 19: Telephone Dialer
Proportional regulation is selectable only for operation in WINTER-HEATING. Choose: 0 = on/off with adjustable differential P08 = proportional with band 0.8°C and period 8 minutes P15 = proportional with band 1.5°C and period 15 minutes - 43 - Manual User EVO.DIN... - Page 20 Once the keyboard is locked, pressing any key “BLOC” will appear. To unlock the keyboard, hold down the keys and T for at least 3 seconds, enter the password you chose earlier and confirm with the key “ ”. - 44 - Manual User EVO.DIN...
-
Page 21: Type Of Regulation
ON If there is a change in the operating set, the regulation takes place in ON-OFF mode until the Tset is reached for the first time; this to reach the set conditions more rapidly. - 45 - Manual User EVO.DIN... -
Page 22: Display During Operation
This can be adjusted with the keys “ ” and “ ”. 20 seconds after the last operation or when is pressed the key “ ”, the values read will reappear in the temperatures fields. - 46 - Manual User EVO.DIN... - Page 23 This function is available in Automatic and Off operation, but not in Manual one. To reset Minimum or Maximum detected value, simply press the key“ ” and “ for at least 3 seconds until “---” appears. - 47 - Manual User EVO.DIN...
-
Page 24: Technical Specifications
Cable lengh: until 40 m (bipolar cable,minimum section 1 mm2) • Operating temperature: 0 °C ÷ 50 °C [32.0 °F ÷ 122.0 °F]. • Storage temperature: -10 °C ÷ 65 °C [14.0 °F ÷ 149.0 °F]. - 48 - Manual User EVO.DIN... -
Page 25: Reference Standards
– 2 x 6 mm terminals for telephone dialer. REFERENCE STANDARDS Conformity to European Community directives: 2014/35/EU (LVD) 2014/30/EU (EMCD) is declared with reference to the following standards: EN 60730-2-7, EN 60730-2-9 - 49 - Manual User EVO.DIN... -
Page 26: Winter Programmes
WINTER PROGRAMMES - 50 - Manual User EVO.DIN... -
Page 27: Summer Programmes
SUMMER PROGRAMMES - 51 - Manual User EVO.DIN... - Page 30 Vemer S.p.A. I - 32032 Feltre (BL) Via Camp Lonc, 16 Tel +39 0439 80638 Fax +39 0439 80619 e-mail: info@vemer.it - web site: www.vemer.it 06-2019...
