Hoffer Flow Controls CAT3-AC-MIL User Manual page 21

Pulse Frequency:
1, 2, 4, 8, 100 cps. (cps - cycles per second).
Note: Output pulse duty cycle is about 50%. Changing pulse frequency
sets pulse width per below table.
Pulse Frequency Hz
TTL(0-5V), 0-10V, High Level (DC In), AC Square
USER DCS
+
PULSE
INPUT
-
1
PCA180
SW2
AC Square
Sets Frequency/Pulse Width for output pulse. Select
or cps
1
2
4
8
100

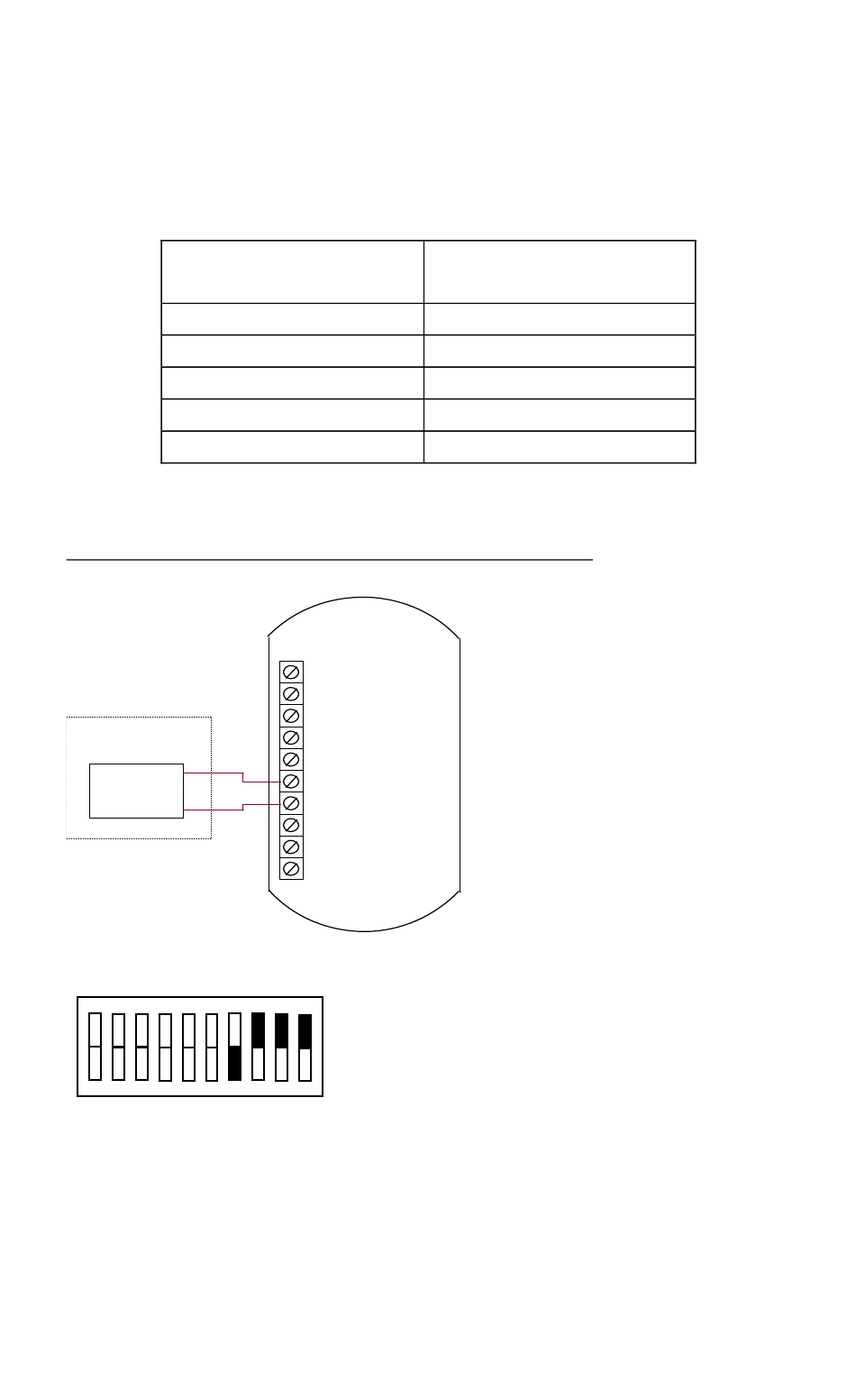

DC+
DC-
SIG+
SIG-
ANLG
PULSE+
PULSE-
N/C
N/C
N/C
Installation
Pulse Width
less than
0.5 sec
250ms
125ms
62ms
5ms
13
HP-325
