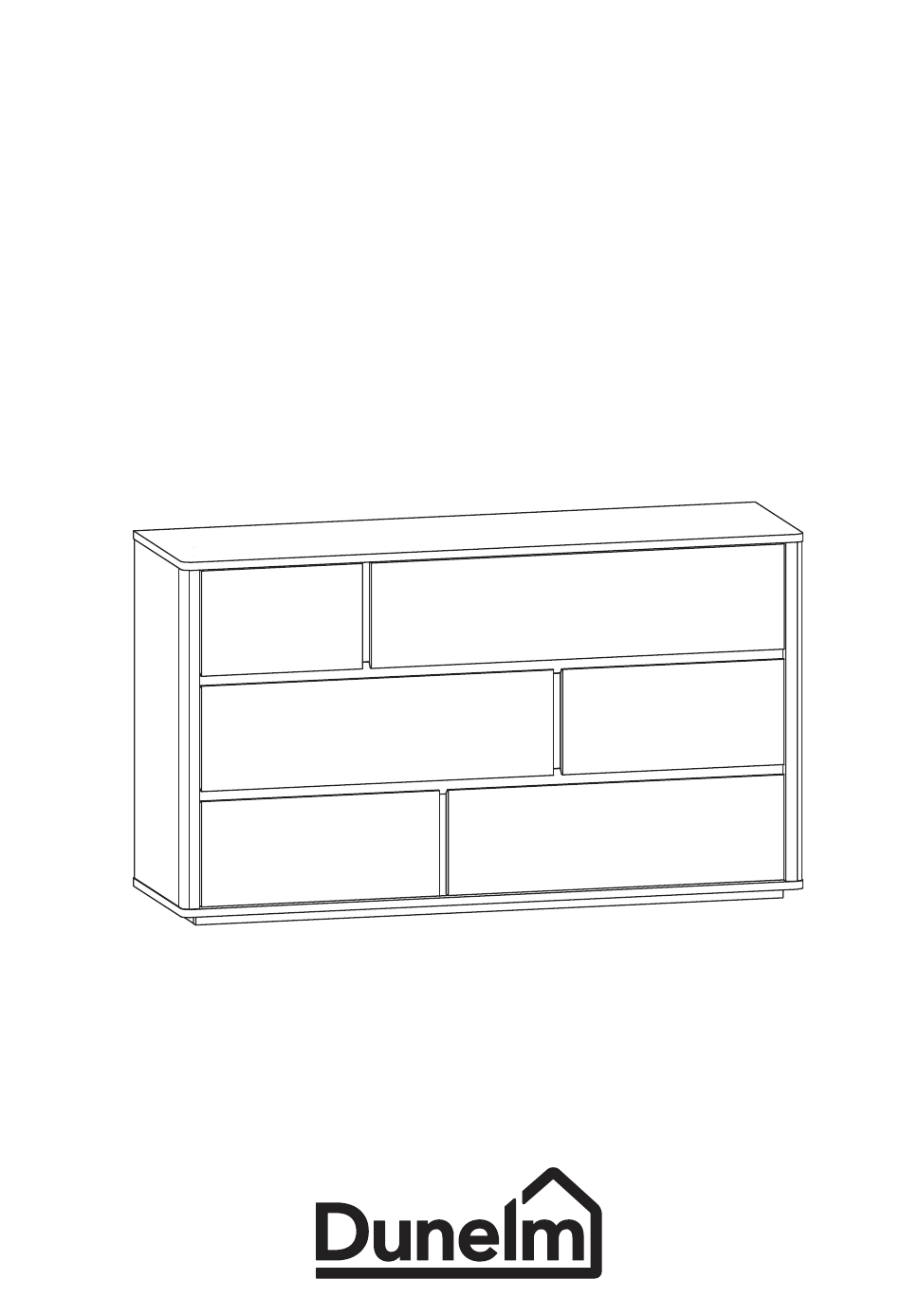

  • Page 1 Malik 6 Drawer Chest INSTRUCTIONS www.dunelm.com...
  • Page 2 Thank you Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
  • Page 3 Component parts supplied Dimensions Dimensions Visual Visual 1420x420x18 767x236x18 1420x420x42 350x180x12 760x418x41 317x180x12 1387x380x15 893x180x12 1387x380x15 754x180x12 243x364x25 456x180x12 243x364x25 493x180x12 243x364x25 717x180x12 337x60x12 1338x45x15 1387x140x15 327x346x3 903x346x3 1387x140x15 367x236x18 764x346x3 943x236x18 466x346x3 804x236x18 503x346x3 727x346x3 506x236x18 1386x15x55 543x236x18 www.dunelm.com...
  • Page 4 Parts and ttings 40pcs 70pcs M5x33 Ø 15x12 Ø8x30 32pcs 30pcs 30pcs 24pcs Ø 4x40 Ø 15x10 Ø25x1 6pcs 4pcs Ø 6x40 Ø3.5x12 Ø 6x50 2pcs 4pcs 2pcs 2pcs M Ø 16x1.5 Ø 4x19 145x25x1 www.dunelm.com...
  • Page 5 Exploded view www.dunelm.com...
  • Page 6 Step 1: C x 6 A x 2 C x 6 A x 2 A x 3 A x 3 12pcs Ø 8x30 10pcs M5x33 www.dunelm.com...
  • Page 7 Step 2: Please note that the locking cam faces outwards. Ø 15x12 Ø 15x10 B x 3 B x 3 6pcs Ø 15x12 www.dunelm.com...
  • Page 8 Step 3: C x 4 C x 4 C x 4 12pcs Ø 8x30 Step 4: Ø 15x12 Ø 15x10 Ø 15x12 www.dunelm.com...
  • Page 9 Step 5: Ø 15x12 Ø 15x10 Ø 15x12 A x 6 Step 6: C x 4 A x 6 C x 4 8pcs Ø 8x30 12pcs M5x33 www.dunelm.com...
  • Page 10 Step 7: Ø 15x12 Ø 15x10 B x 2 2pcs Ø 15x12 Step 8: Ø 6x50 Ø 6x40 B x 2 Ø 6x50 2pcs Ø 15x12 www.dunelm.com...
  • Page 11 Step 9 Ø 6x50 Ø 6x40 Ø 6x50 B x 2 2pcs Ø 15x12 Step 10: B x 2 H x 4 4pcs Ø 6x50 2pcs Ø 15x12 www.dunelm.com...
  • Page 12 Step 11: Ø 15x12 Ø 15x10 B x 6 6pcs Ø 15x12 Step 12: A x 9 9pcs M 5 x33 www.dunelm.com...
  • Page 13 Step 13: Ø 15x12 Ø 15x10 B x 9 9pcs Ø 15x12 Step 14: J x 4 A x 9 Ø 6x40 M 5 x33 9pcs www.dunelm.com...
  • Page 14 Step 15: K x 2 B x 9 Ø 3.5x12 9pcs Ø 15x12 www.dunelm.com...
  • Page 15 Step 16: A x 6 A x 4 M 5 x33 30pcs Step 17: D x 6 D x 4 30pcs Ø 15x10 www.dunelm.com...
  • Page 16 Step 18: Step 19: E x 6 E x 4 30pcs Ø 4x40 www.dunelm.com...
  • Page 17 Step 20: Step 21: Add the screw covers for those visible cams 24pcs Ø 25x1 www.dunelm.com...
  • Page 18 L x 2 2pcs 2pcs 1 45x25x1 2pcs Ø 4x19 Ø 1 6 x1.5 Seek advice from a qualified Step 23: trades person on how to attach this wall strap to your specific wall. Wall 2pcs Ø 1 6 x1.5 www.dunelm.com...
  • Page 19 fixing and that the fixing is safe and secure before using. When drilling into the walls, always ensure there are no hidden wires or pipes. If you are unsure, we recommend you consult a qulified Trades person. www.dunelm.com...
  • Page 20 Wall xings www.dunelm.com...
  • Page 21 Always follow fitting instructions carefully and retain them for future use. Always lift your furniture into place, avoid dragging it across the floor as this can cause damage to joints. Protectors are securely fitted and in place. www.dunelm.com...
