AUREL RX-2CH-HCS User Manual

2-channel receiver controlled by any transmitter with a microchip hcs keeloq encoder, programmed with aurel code.

Advertisement

Quick Links

---------------------------------------------------------------------------------------------------------------------------------------------------------------------

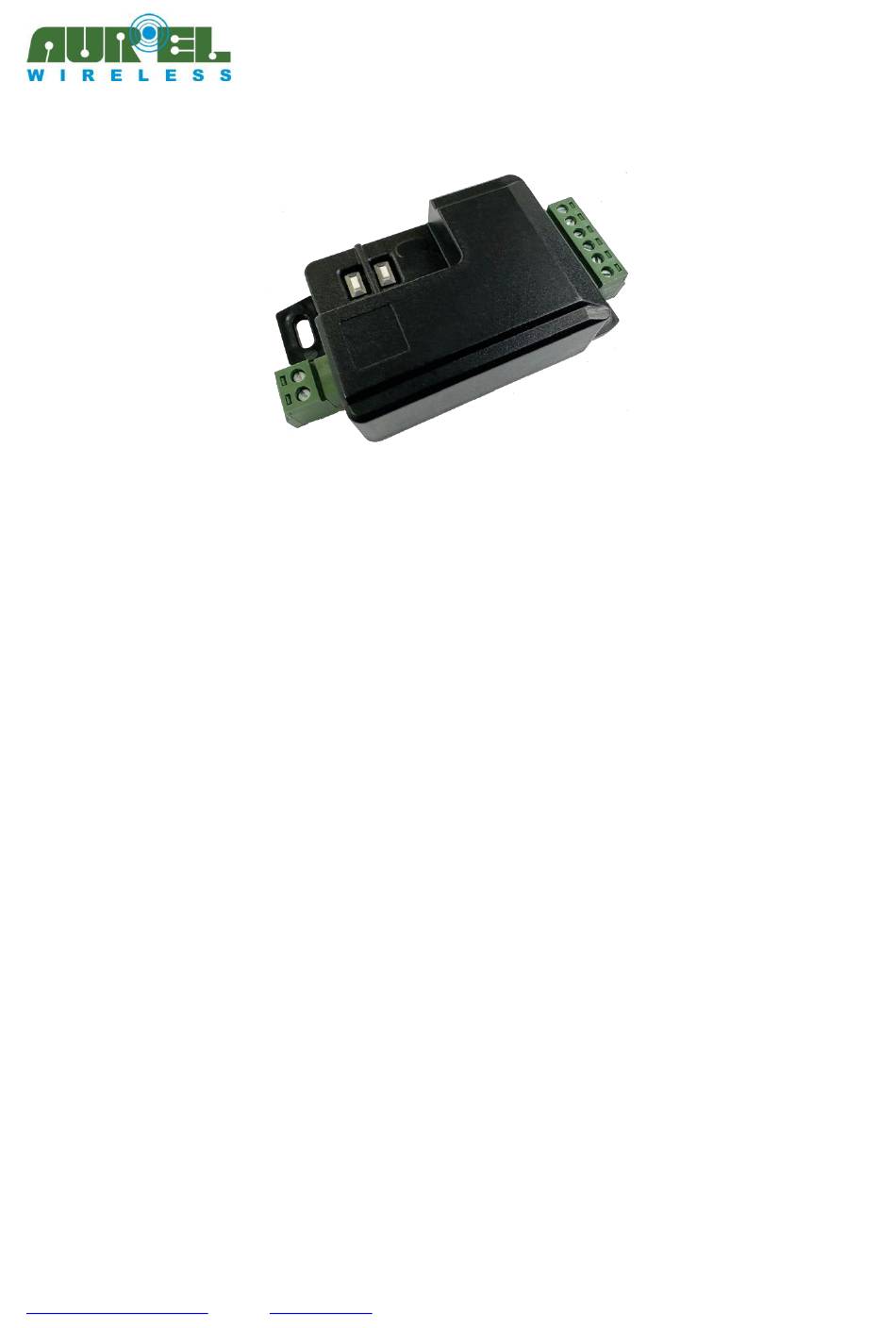

The RX-2CH-HCS is a 2-channel receiver controlled by any transmitter with a Microchip HCS Keeloq
encoder, programmed with Aurel code. HCS and Keeloq are trademarks of Microchip.
The monostable, bistable and timed modes of the two relay outputs make it ideal as a control element in
devices such as gate openers, security systems and generally in applications where channel encoding is
required.
The transmitter code is stored via auto-learning (see below).
The device stores up to 500 remote controls.
It is housed in a plastic enclosure with wall-mounting capabilities. Two buttons are accessible for
programming and two red LEDs display operating and programming states.
Connections are detachable with terminal blocks, step 3.81mm, and nominal cable section up to 1.5mm².
Compatible with AUREL transmitters: HCS-TX-1/2/3 (OVO), TX1/2/3-HCS-433 (HCS), TX-2/4/6 M-HCS, TX-12
CH.
Main Features
RF Sensitivity: -110dBm
500 Transmitters memory capacity
28-bit Serial Identification Code
32-bit Hopping Code
Auto-learning
Bistable/Monostable/Timed programming
Memory deletion
Le caratteristiche tecniche possono subire variazioni senza preavviso. AUR°EL S.p.A. non si assume la responsabilità di danni causati dall'uso improprio del dispositivo.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
(7)
(8)
- email:
rfcomm@aurel.it
RX-2CH-HCS
(6)
(1)
User Manual
Rev 1.1 17/01/2025
Pag 1 di 7
