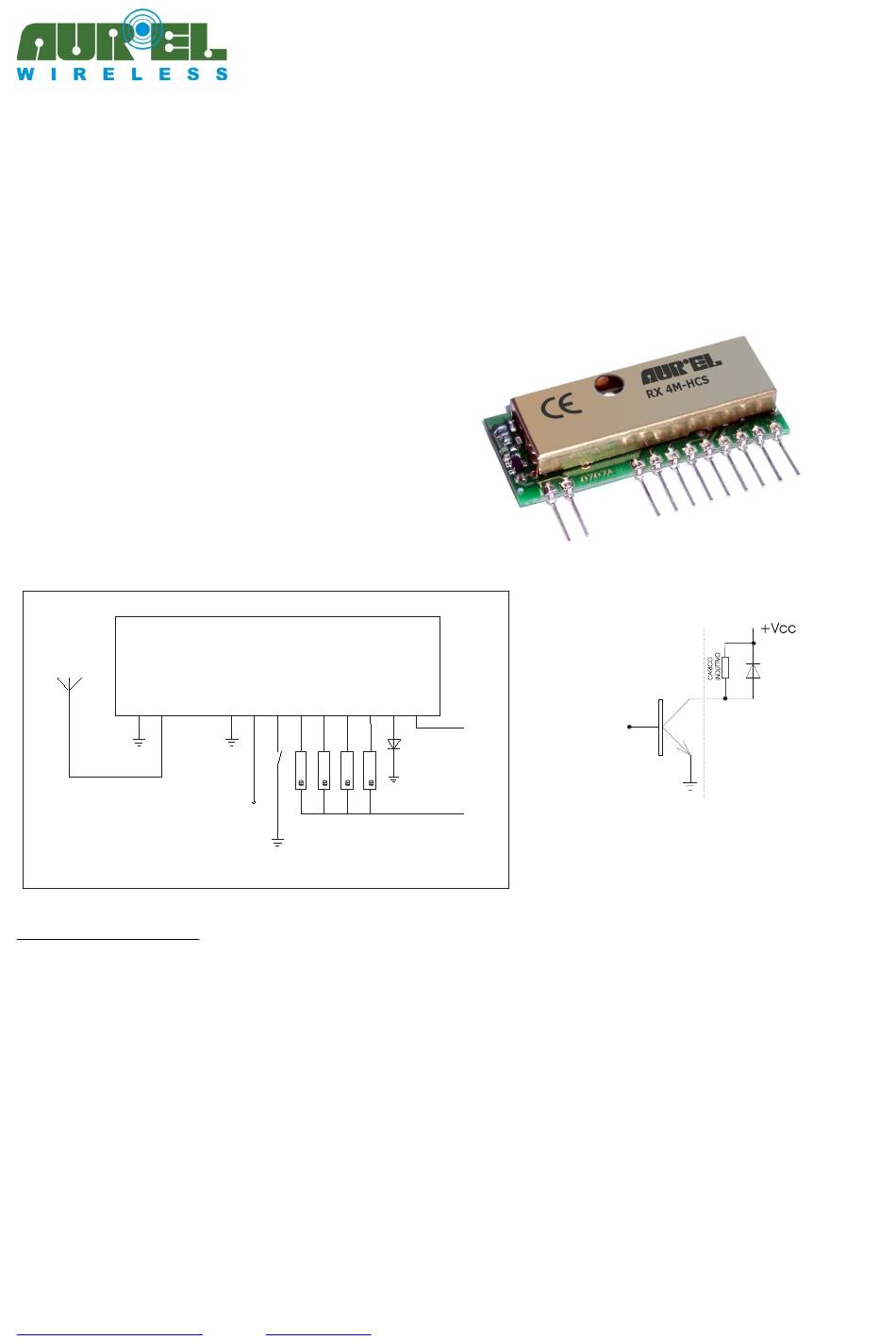

AUREL RX-4MHCS User Manual

---------------------------------------------------------------------------------------------------------------------------------------------------

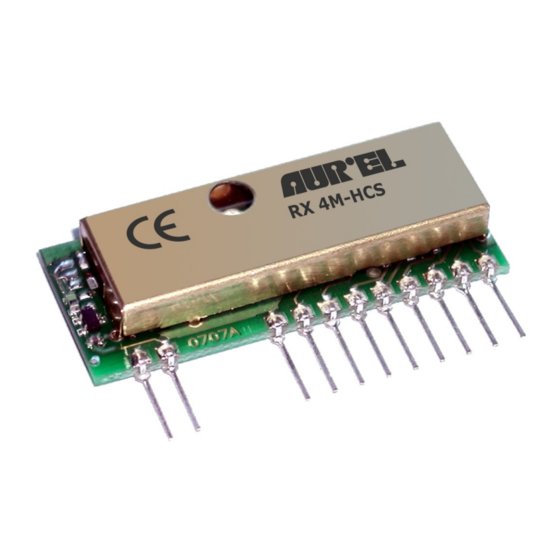

RX-4MHCS
433.92 MHz OOK (AM) Receiver - 4 output channels
Description
The mono-stable and bi-stable mode and the open
collector outputs make it ideal for telecontrol of
appliances like gate door openers, burglar alarm
systems and wherever it's requested encoding of
radio link. Furthermore it's able to learn the code of
HCS transmitters.
Compatible with AUREL keyfobs: HCS-TX-
1/2/3 (OVO), TX1/2/3-HCS-433 (HCS), TX-
2/4/6 M-HCS, TX-12 CH.
2 3

Connection Pin-Out:

2) GND
3) Antenna
7) GND
8) Test Point – RX analog output
9) Programming push button
10) Ch1 output - Open collector (Triggered by pushing button 1 in the keyfob)
11) Ch2 output- Open collector (Triggered by pushing button 2 in the keyfob)
12) Ch3 output- Open collector (Triggered by pushing button 3 in the keyfob)
13) Ch4 output- Open collector (Triggered by pushing button 4 in the keyfob)
14) LED output – Connected to anode of LED
15) Vcc (+5Volt)
Technical features are subject to change without notice. AUREL S.p.A. does not assume responsibilities for any damages caused by the device's misuse.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUREL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Phone.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
R X -4M H CS
7 10 11 12 13 14
8 9
T P
- email: rfcomm@aurel.it
15
+5V
L ED
V cc
RX-4MHCS
User Manual
16/01/2007
Page 1 of 3
