Values have been obtained by applying the test system as per Fig. 1.
The RF emission measure has been obtained by connecting the spectrum analyser directly to RX Pin 3.
Nota2:
Nota3:
By switch-on time is meant the time required by the receiver to acquire the declared characteristics from the very moment the
power supply is applied.
Nota4:
Values obtained with 10KΩ maximum load applied.
Le caratteristiche tecniche possono subire variazioni senza preavviso. La AUR°EL S.p.A non si assume la responsabilità di danni causati dall'uso improprio del dispositivo.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
http://www.aurel.it
- email:
38.1
11
13 14 15
7
2.54
GND Connections: Internally connected to a single ground plate
50Ω impedence antenna connection
Connection to the +5V ±0.5V supply positive pole
Analog output of the demodulated signal. By connecting an oscillograph
the entity and quality of the received RF signal can be seen.
Page 1

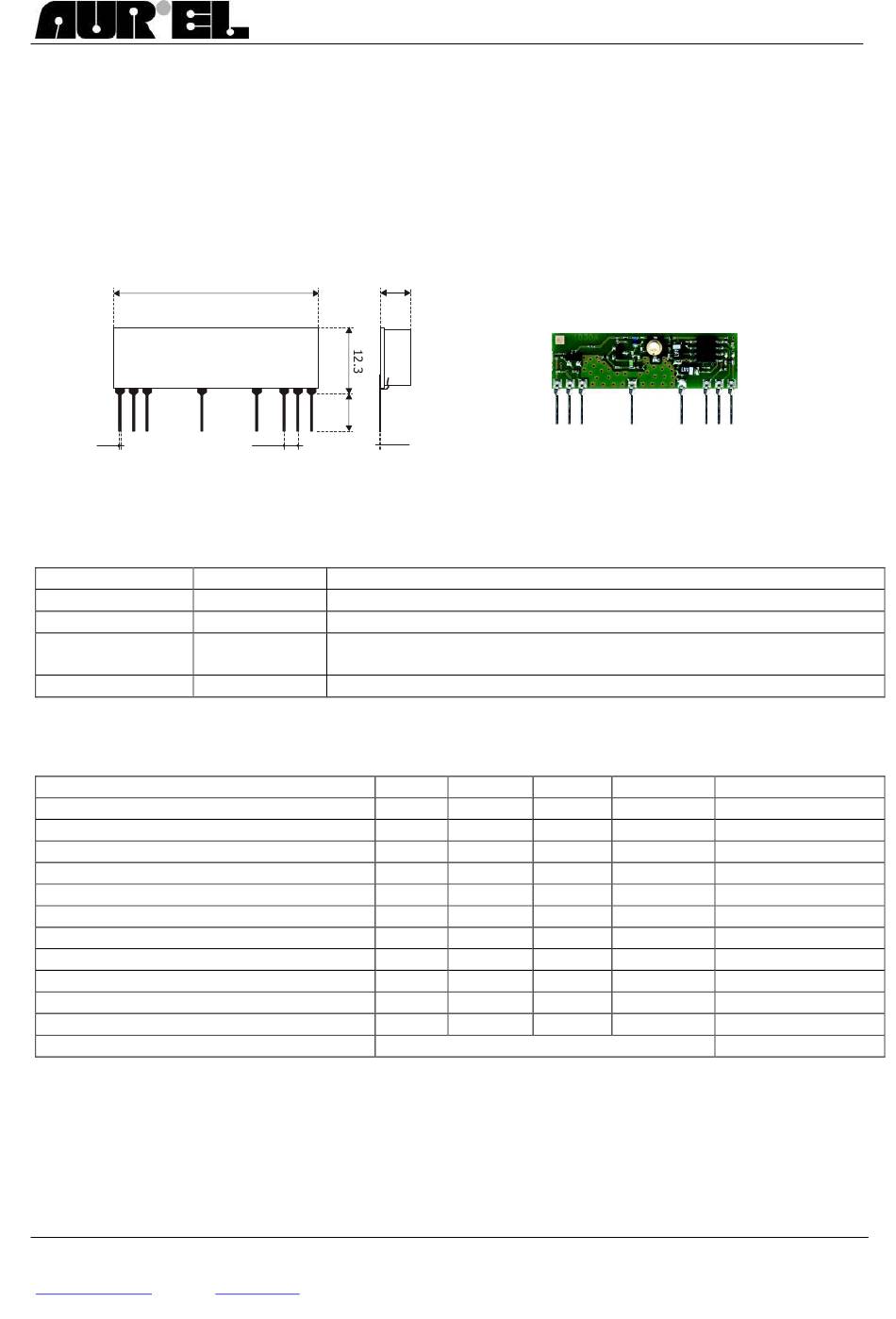

AC-RX2/CS User Manual AC-RX2/CS Receiver RF data receiver super-reactive ASK modulation, low cost and low consumption ideal for Microchip HCS KEELOQ decoder/encoder family. Pin-out 38.1 Component Side 13 14 15 0.25 2.54 Connections Pin 2-7-11 Ground GND Connections: Internally connected to a single ground plate...
Page 2
AC-RX2/CS User Manual The declared technical features have been verified by applying the following test system: Fig. 1 Device usage In order to take advantage of the performances described in the technical specifications and to comply with the operating conditions which characterize the Certification, the receiver has to be fitted on a printed...
Page 3
In case of coaxial cable connection then 5 mm radius will suffice. Reference Rules The AC-RX2/CS receiver is EC certified and in particular it complies with the European Rules ETSI EN 300 220-2 V2.3.1 (2009-12) in class 3 and EN 301-489-3 V1.4.1 (2002-08) in class 3, with max voltage supply.
Page 4
AC-RX2/CS User Manual Fig.3 Frequency - sensitivity plot Frequency [MHz] -120 -110 -100 PLOT1 Plot was obtained using the test set up as in Fig.1 with variation of frequency and output level of RF generator Temperature - sensitivity Temperature [° C] PLOT2 The declared technical features have been verified by applying the test system in FIG.1...
Page 5
AC-RX2/CS User Manual Temperature - Power Consumption Temperature ° C PLOT3 The declared technical features have been verified by applying the test system in FIG.1 Temperature - Frequency center 434,5 433,5 432,5 431,5 Temperature ° C PLOT4 The declared technical features have been verified by applying the test system in FIG.1 and frequency center detection at –3dB.
