Logitech H600 Manual

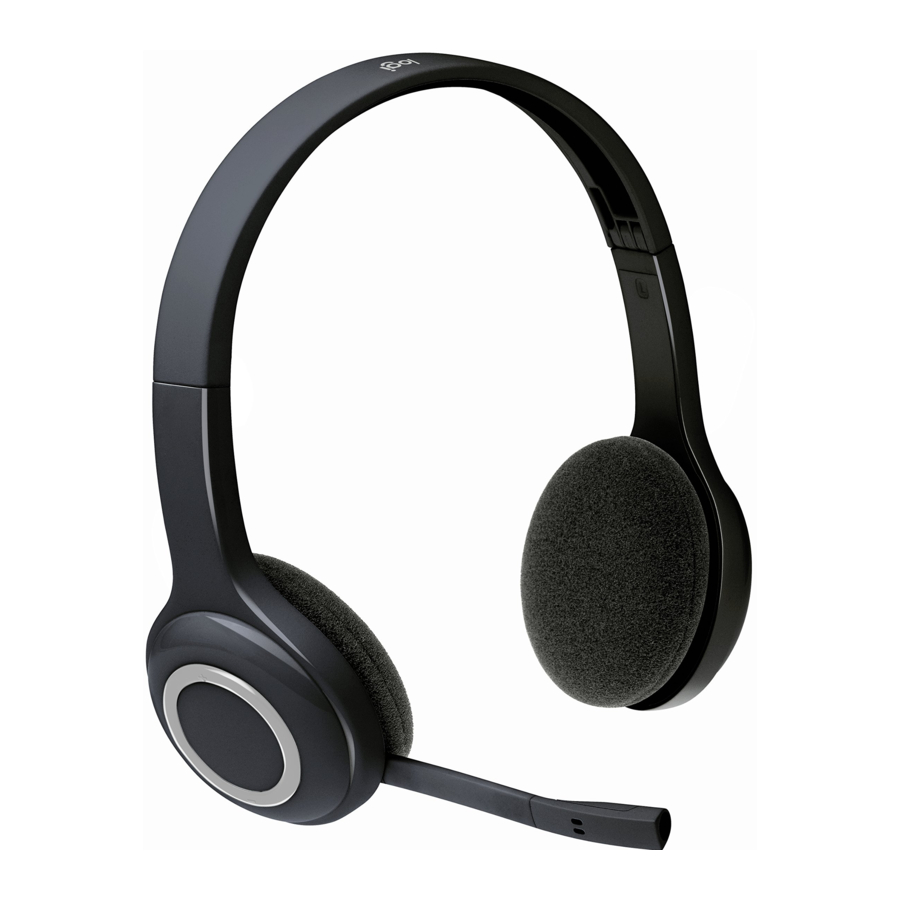

Headset features

1. Noise-canceling microphone
2. Flexible, rotating microphone boom
3. Adjustable headband
4. Charging port
5. Status light
6. Nano receiver storage
7. Volume up
8. Volume down
9. Power switch
10. Microphone mute
11. USB wireless Nano receiver
12. USB charging cable

Setting Up

Try the headset

Listen to music or make an Internet call to test the wireless connection between the headset and your audio source (laptop or smartphone). If the headset doesn't work with your computer, you may need to make an adjustment in your computer's operation system so it will recognize the headset, making the headset the default audio input/output device. Also refer to Help with setup for additional troubleshooting advice.

Windows® XP

1. Go to Start/Control Panel/Sounds and Audio devices/Audio tab.
2. In the Sound Playback/Default Device window, choose the Logitech Wireless Headset H600.
3. Select the Voice tab.
4. In the Voice tab, choose the Logitech Wireless Headset H600.
5. Click OK.
6. Restart your media application.

Windows® Vista and Windows® 7

1. Go to Start/Control Panel/Sounds/Playback Devices tab.
2. Choose Playback Devices.
3. Choose the Logitech Wireless Headset H600.
4. Click Set Default, and then click OK.
5. Select the Recording Tab.
6. Choose the Logitech Wireless Headset H600.
7. Click Set Default, and then click OK.
8. Restart your media application.

Mac® OS

1. Open System Preferences.
2. Choose the Sound/Output tab.
3. Choose the Logitech Wireless Headset H600.
4. Select the Input tab.
5. Choose the Logitech Wireless Headset H600.
6. Close window.
7. Restart your media application.

Status light indicators

Note: To charge the headset, plug the included USB charging cable into your headset and computer. When the headset battery is very low, a full charge can take up to three hours. But you don't have to stop using the headset because it charges while you talk or listen to music.

At product end of life, the battery is removable for disposal/recycling ONLY. Please see www.logitech.com/ support for more information.

Help with setup

Something not sound right? No sound at all? Not connecting?

• Try moving the headset closer to the USB wireless Nano receiver. The wireless connection status light on the headset turns solid green when the headset is in range (up to 30ft/10m) with the Nano receiver. See the wireless performance table below for Nano receiver placement tips.
• Make sure the headset is the active output audio device in both your application and operating system. For more information, see Test the Headset.
• Adjust the volume and microphone settings to an audible level in both your application and operating system.
• Quit and restart your media application.
• If you're using a USB hub (powered or un-powered), try plugging the Nano receiver directly into your computer.
• Try using the headset with another computer.

Headset not charging?

• Use the provided USB charging cable. Connect the cable to the charging port on the headset, and connect the other end of the cable to a USB port on your computer.
• I f you are using a USB hub, connect the charging cable directly to a USB port on your computer.

Controls not working?

• Some functions of the headset may not be supported depending on the tablet, smartphone and/or application.

Wireless performance

For additional assistance, please visit www.logitech.com/support.
