Logitech ZONE WIRED - Wireless Noise Canceling Headset Manual

KNOW YOUR PRODUCT

IN-LINE CONTROLLER

WHAT'S IN THE BOX

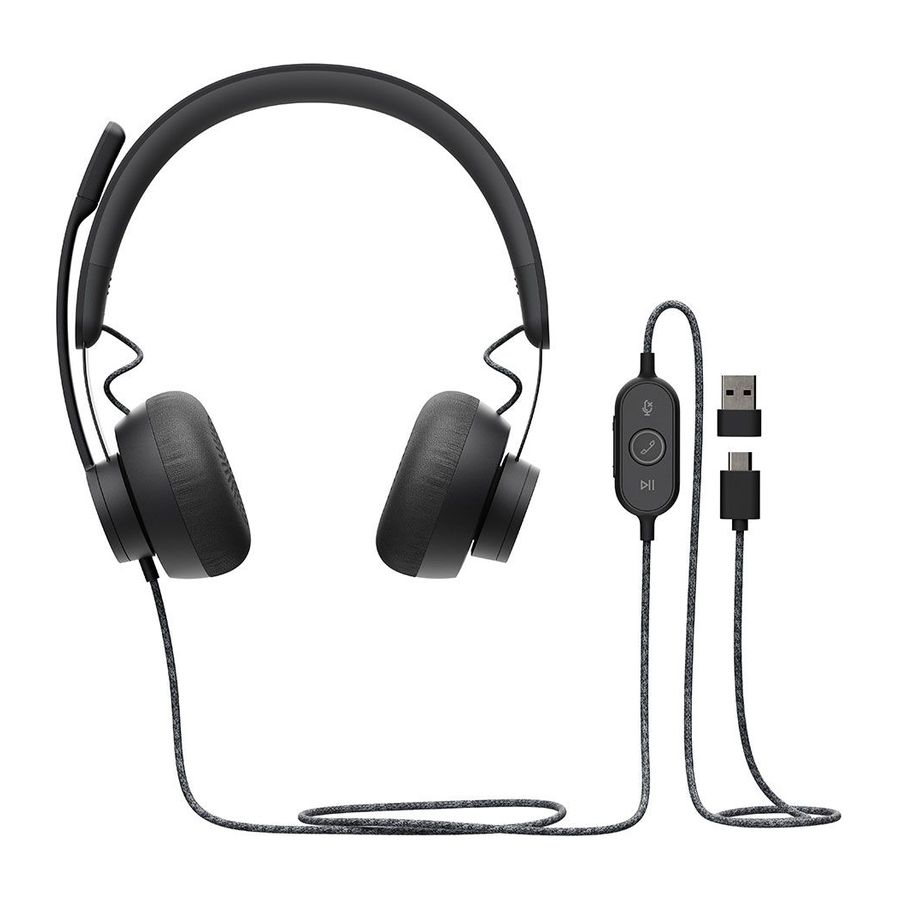

1. Headset with In-line controller and USB-C connector
2. USB-A adapter
3. Travel bag
4. User documentation

CONNECTING THE HEADSET

Connect via USB-C

1. Plug the USB-C connector into your computer USB-C port.

Connect via USB-A

1. Plug the USB-C connector into the USB-A adapter.
2. Plug the USB-A connector into your computer USB-A port.
   Note: Only use the USB-A adapter with the provided headset.

HEADSET FIT

Adjust headset by sliding headband open or closed on both sides.

ADJUSTING THE MICROPHONE BOOM

1. Microphone boom rotates 270 degrees. Wear it on either left or right side. For the best music experience, we recommend wearing the headset with the microphone on the left. Left/Right indicators can be found on the side of the headset.


2. Adjust flexible microphone boom location to capture voice better.


HEADSET IN-LINE CONTROLS AND INDICATOR LIGHT

TEAMS version
Button	Usage		Indicator Light	Action
	Mute	Mute on	Solid RED	Short press to Mute / Unmute
		Mute off	No light
	Call Controls	Incoming calls	Flashing WHITE	Short press to Answer calls
				2 second press to Reject calls
		Ongoing calls	Solid WHITE	Short press to End calls
	Teams Activities	Connecting to Teams	Pulsing PURPLE	Short press to check connection to Teams
		Failed connection to Teams	Flashing PURPLE for 10 secs then off
		Not connected to Teams	Flashing PURPLE 3 times then off
		Connected to Teams	Solid PURPLE	Short / 2 second press for Teams activities
		Teams Missed call / Voice mail / Join meeting notifications	Pulsing PURPLE	Short press to Respond to Teams notifications
	Media Controls		No light	Short press to Play / Pause
				Double press to Track forward
				Triple press to Track backward
+	Volume		No light	Short press to Volume up
-				Short press to Volume down

Note: Teams activities are only functional when Teams is running on unlocked PC or Mac.

UC version
Button	Usage		Indicator Light	Action
	Mute	Mute on	Solid RED	Short press to Mute / Unmute
		Mute off	No light
	Call Controls	Incoming calls	Flashing WHITE	Short press to Answer calls
				2 second press to Reject calls
		Ongoing calls	Solid WHITE	Short press to End calls
	Voice Assistant		No light	2 second press to Trigger voice assistant*
	Media Controls		No light	Short press to Play / Pause
				Double press to Track forward
				Triple press to Track backward
+	Volume		No light	Short press to Volume up
-				Short press to Volume down

^* Voice assistant functionality may depend on device models.

LOGI TUNE DESKTOP (PC COMPANION APP)

Logi Tune Desktop helps boost your headset performance with periodic software and firmware updates, helps you adjust what you hear with 5 band EQ customization, and helps you control how you are heard with mic gain, sidetone controls, and more. The distraction-free mini-app allows you to make audio adjustments while in an active video call.
Learn more & download Logi Tune Desktop at: www.logitech.com/tune

ADJUSTING SIDETONE

Sidetone lets you hear your own voice during conversations so you are aware of how loud you are talking. In Logi Tune, select the sidetone feature, and adjust the dial accordingly.

• higher number means you hear more external sound.
• lower number means you hear less external sound.

UPDATE YOUR HEADSET

It is recommended to update your headset. To do so, download Logi Tune from www.logitech.com/tune

DIMENSION

Headset:
Height x Width x Depth: 165.93mm x 179.73mm x 66.77mm Weight: 0.211 Kg

Ear pad dimensions:
Height x Width x Depth: 65.84mm x 65.84mm x 18.75mm

Adapter:
Height x Width x Depth: 21.5mm x 15.4mm x 7.9mm

SYSTEM REQUIREMENTS

Windows, Mac or Chrome based computer with available USB-C or USB-A port. USB-C compatibility with mobile devices depends on device models.

TECHNICAL SPECIFICATIONS

Input Impedance: 32 Ohms
Sensitivity (headphone): 99dB±3dB at 1000Hz @30mW,1cm
Sensitivity (microphone): Main mic: -48 dBV/Pa, Secondary mic: - 40 dBV/Pa
Frequency response (Headset): 20~16 kHz
Frequency response (Microphone): 100~16 kHz
Cable length: 1.9 m
