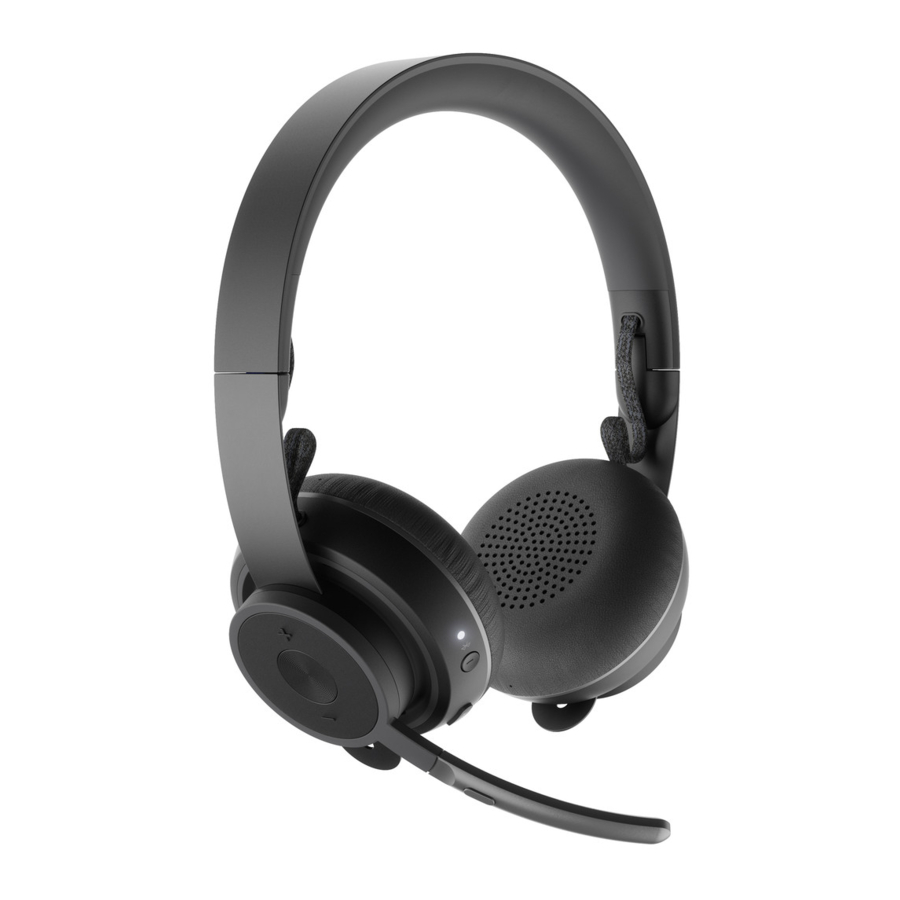

Logitech ZONE WIRELESS - Bluetooth Headset Manual

KNOW YOUR PRODUCT

WHAT'S IN THE BOX

1. Headset
2. USB-A receiver
3. USB-C to A adapter
4. USB-A to C charging cable
5. Travel bag
6. User documentation

POWER ON/OFF

1. Press power button for 1 second
2. Once powered on, light indicator turns white
   If no device is connected, it will flash white slowly

PAIRING VIA BLUETOOTH^®

1. Press power button for 2 seconds Light indicator will flash white rapidly
2. Open Bluetooth^® settings on your device
3. Select Zone Wireless in discoverable devices
4. Once successfully paired, light indicator will turn solid white

PAIRING VIA USB RECEIVER

1. USB-A
   Insert the receiver into the computer USB-A port
   USB-C
   Insert the USB-A receiver into the USB-C adapter
   Then insert the adapter into the computer USB-C port
2. Headset is already paired to the receiver it ships with Just power on the headset Once successfully paired, the light indicator on the receiver will remain solid white Light indicator on the headset will turn solid white

ADJUSTING HEADSET

1. Adjust headset by sliding earcups up and down the headband
2. It may be easier to adjust the headset on your head Move the earcups up and down the headband until they sit comfortably on your ears

ADJUSTING THE MICROPHONE BOOM

1. Microphone boom rotates 270 degrees Wear it on either left or right side Audio channel will switch automatically, depending on the direction you are wearing the microphone
2. Flexible microphone boom — adjust boom location to capture voice better

HEADSET CONTROLS

Note:

• Teams activities are only functional when Teams is running on an unlocked computer
• Media control functionality depends on type of application
• Call activities are always the first priority When two devices are connected, the Bluetooth^® connection will be prioritized over receiver When two Bluetooth^® devices are connected, the last active device will override the other

Tip: Button customizations and Music EQ controls available on Logi Tune app

MUTE

ACTIVE NOISE CANCELLATION (ANC)

ANC blocks out the noise around you to help you concentrate on the task at hand

1. Press the ANC button on the side of the earcup
2. There will be voice notifications when turning ANC on and off These can be turned off in the Logi Tune app

HEADSET LIGHT INDICATOR

RECEIVER INDICATOR LIGHT

CHARGING

Headset automatically powers off when left idle. Sleep timer can be changed in the Logi Tune App
Headset indicator light will turn RED when battery is low.

Charging via USB cable

1. Plug the USB-C cable end into the USB-C port on the bottom of the earcup
2. Plug the USB-A end into the USB-A charging port on your computer or AC adapter
3. Indicator light will be a breathing white light for charging
4. Indicator light will be solid white when fully charged
   • 2 hours will fully charge the battery
   • 5 minutes will give you 1 hour of talk time
5. Headset can be used with receiver and Bluetooth^® paired while charging

Charging via Qi wireless charger

1. Fold headset with the wireless charging icon on the earcup to the outside
2. Place earcup with wireless charging icon on top of any Qi wireless charging base *
3. Indicator light will be a breathing, white light when charging
4. Indicator light will be solid white when fully charged
   • 2 hours of charging fully charges the battery

* Qi wireless charging base is not included

LOGI TUNE APP

1. Download Logi Tune Desktop from www logitech com/tune
2. Download the Logi Tune mobile app from the Apple App Store^® or Google Play™ stores by searching for "Logi Tune"



   www.logitech.com/tune

ADJUSTING SIDETONE

Sidetone lets you hear your own voice during conversations so you are aware of how loud you are talking In the Logi Tune App, select the sidetone feature, and adjust the dial accordingly

• A higher number means you hear more external sound
• A lower number means you hear less external sound

AUTO SLEEP TIMER

By default, your headset will automatically power off when not in use for one hour Adjust the sleep timer in the Logi Tune App

UPDATE YOUR HEADSET

It is recommended to update both your headset and receiver To do so, download the Logi Tune Desktop from www logitech com/tune

RESET YOUR HEADSET

To reset your headset back to its original state, power headset on, press and hold the ANC button and volume '–' button for 5 seconds The headset is successfully reset when it powers off and indicator light turns off

DIMENSIONS

HEADSET:
Height x Width x Depth: 174 7 x 176 7 x 70 7 mm

WEIGHT:
0 1808Kg

EARPADS:
Height x Width x Depth: 70 7 x 70 7 x 16 4 mm

RECEIVER:
Height x Width x Depth: 21 5 x 13 6 x 6 0 mm

ADAPTER:
Height x Width x Depth: 25 2 x 16 5 x 9 5 mm
