Keystone Manual
Dispenser
300277 Keystone 3.0 Red, Ketchup
300278 Keystone 3.0 Yellow, Mustard
300279 Keystone 3.0 Cream, Mayonnaise
300280 Keystone 3.0 Blue, Ranch
300281 Keystone 3.0 Brown, BBQ
300282 Keystone 3.0 Dark Yellow, Honey Mustard
300283 Keystone 3.0 Green, Sweet Relish
300284 Keystone 3.0 Red, Simply Heinz

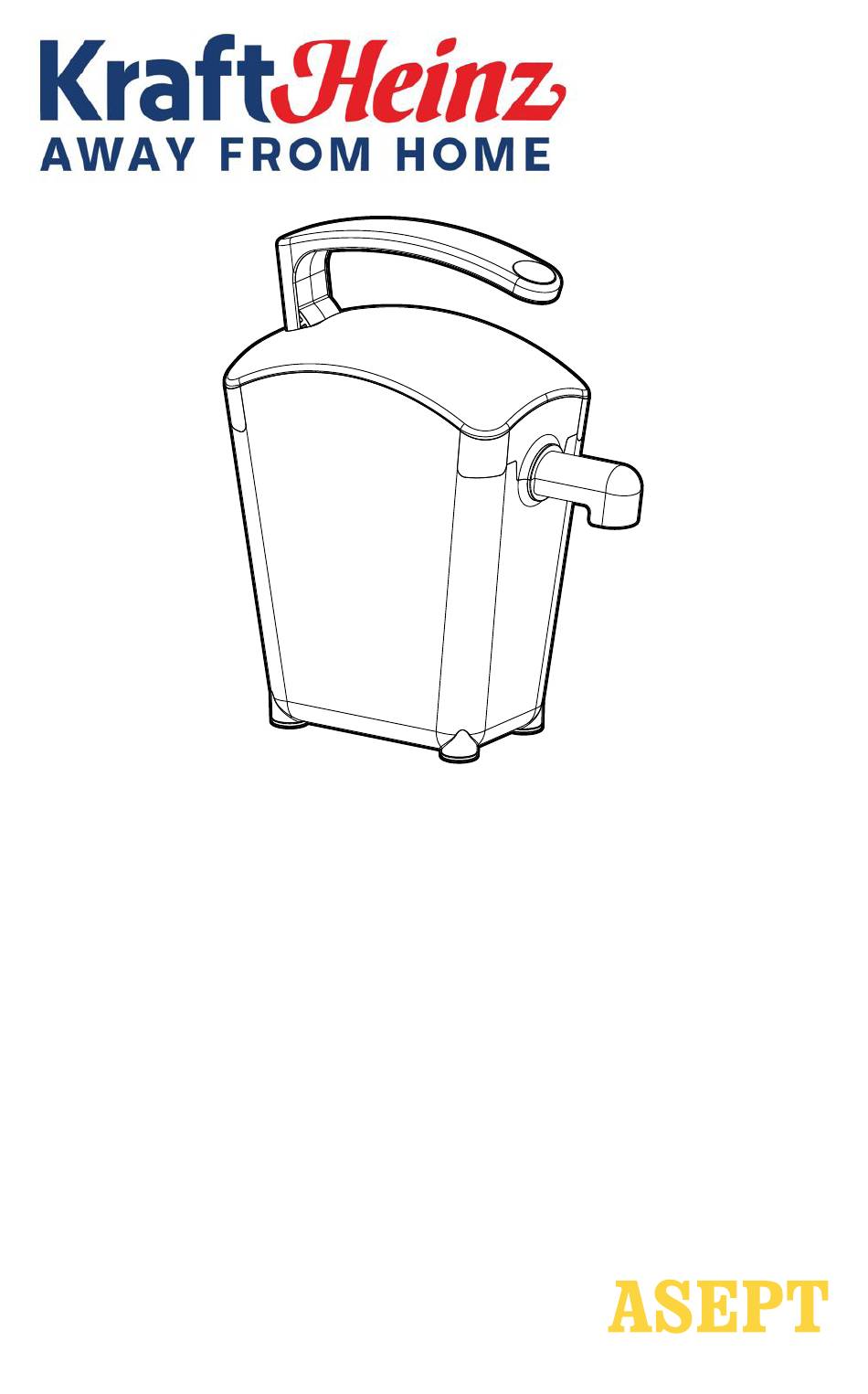

Heinz Keystone 3.0 Dispenser
Model 0000
User Manual
(with Lever)
Manufactured exclusively
for KraftHeinz by Asept Int.
Advertisement
Related Manuals for ASEPT KraftHeinz Keystone 3.0
Summary of Contents for ASEPT KraftHeinz Keystone 3.0
- Page 1 300280 Keystone 3.0 Blue, Ranch 300281 Keystone 3.0 Brown, BBQ 300282 Keystone 3.0 Dark Yellow, Honey Mustard 300283 Keystone 3.0 Green, Sweet Relish 300284 Keystone 3.0 Red, Simply Heinz Heinz Keystone 3.0 Dispenser Model 0000 User Manual Manufactured exclusively for KraftHeinz by Asept Int.
- Page 2 Heinz Keystone Dispenser Lid Assembly 0000 Dome 0000 Valve 0000 Pump Housing Nozzle 0000 0000 Inlet Valve 0000 Dispenser Housing 0000 All Pumps Include Brush 7615...
- Page 3 Safety All components must be cleaned before first use. According to food and safety regulations, most foods must be stored and/or served at certain temperatures or they could become hazardous. Check with local food and safety regulators for specific guidelines. Be aware of the product you are serving and the temperature the product is required to maintain.
- Page 4 Assembly Insert Valve into the pump housing. Press firmly until it goes into place. Insert dome into the pump housing. Press the entire dome firmly, including the top portion. Mount the nozzle onto the end of the pump housing. Bend the outer portion of the nozzle inside out.
-
Page 5: Prime The Pump
Insert valve inlet into the bottom of the pump housing. Wrap the flaps on the side of valve onto the pair of pegs on the pump housing. TIP: Lubricate parts with clean water to ease fitting. Connect pump to pouch Put a new Heinz dispenser pack on countertop with fitment facing up. - Page 6 Insert Heinz dispenser pack and pump into shroud. Hold end of pack up while lowering guide rails on the pump into the track on the pump slider inside the front of dispenser. Connect lid to dispenser shroud. Lower lid onto dispenser.
- Page 7 Setting the Portion Select portion setting Position the pin through the hole for desired portion. Refer to chart below for portion size. 1 2 3...
- Page 8 You have options for ¾ fl oz or ½ fl oz. Warranty Heinz Keystone Dispenser is backed by a twelve month limited warranty against defects in materials and workmanship. Manufactured exclusively for KraftHeinz by Asept Int. ASEPT International Inc. ASEPT International AB 5207 N. 125th St. Traktorvägen 17, SE-226 60...
