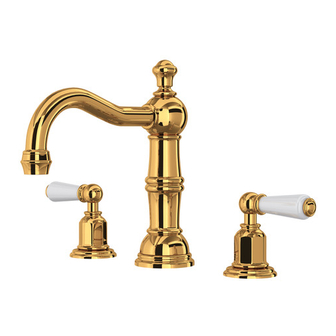

Rohl Perrin & Rowe Georgian U.3027L-2 Installation & User Manual

ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Perrin & Rowe products carry a Limited Lifetime Warranty.
ROHL LLC will provide free of charge, as its options, replacement part(s) or product (or a comparable alternative
product) to replace those which have proven defective in materials or workmanship.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com
SPARES
9.51302*
Used on
9.24194*
9.26760* U.3027L-2
and
U.3028 X-2
9.21198*/Hot
9.21198*/Cold
9.12752*
9.18380*
9.130195/Right
9.130196/Left
9.190191
9.280737
9.26400
* Where indicated please specify color
SPARE PARTS & SERVICE
Perrin & Rowe products are manufactured in the UK, using the latest
technology and built to the highest quality standards.
3 Parker We would like to thank you for purchasing a Perrin & Rowe product and
Irvine
take this opportunity to invite you to look at other luxury products by us.
CA 92618
Please contact us to recieve our latest catalogue.
(714) 557-1933
www.rohlhome.com
Perrin & Rowe is a registered trademark of Triflow Concepts Ltd.
Mixer Service Kit
9.53723
9.25552
9.17793*
9.51767*
9.18380*
9.01797*/Hot
9.12752* 9.01797*/Cold
9.130195/Right
9.130196/Left
9.26705*
9.25706*
9.18380*
9003723U
3 HOLE WIDESPREADS
3 x 1.3/8" Hole
9.20372*
• U.3027L -2
• U.3728X - 2
Max Temp : 85°C/185°F
Recommended
Working Pressure:
Min 2bar/30psi
Max 5bar/75psi
Ideal performance obtained with equal hot & cold pressures.
Issue 4
The Georgian Bathroom Collection
Installation & User Guide
1/2"NPSM
O
2 .3/8"
HOT
IN
O
1 .1/4"
Pair Georgian Lav. Sidevalves
• U.3753X-2
• U.3723L -2
• U.3724X - 2
1/2"NPSM
COLD
IN
• U.3752L-2
