PRODUCT MANUAL
LITHIUM-ION
ROTARY
HAMMER
TRHLI20228 TRHLI20228X TRHLI20228E
TRHLI20228XE TRHLI20228X-X TRHLI20228M
TRHLI20228XM TRHLI20228XA UTRHLI20228
UTRHLI20228X (X stands for 1 to 9)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRHLI20228 A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Total TRHLI20228 A Series

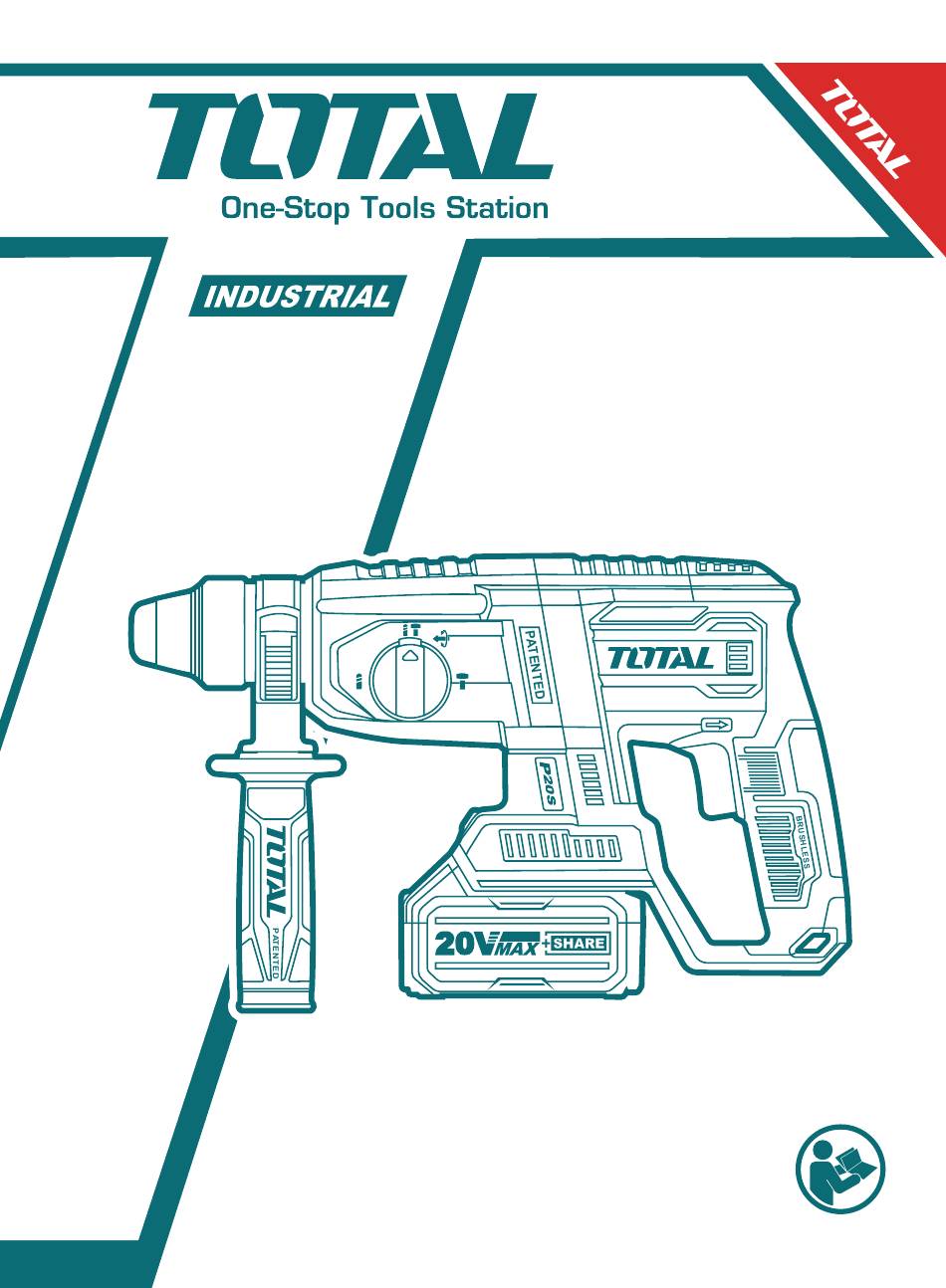

  • Page 1 PRODUCT MANUAL LITHIUM-ION ROTARY HAMMER TRHLI20228 TRHLI20228X TRHLI20228E TRHLI20228XE TRHLI20228X-X TRHLI20228M TRHLI20228XM TRHLI20228XA UTRHLI20228 UTRHLI20228X (X stands for 1 to 9)
  • Page 2: General Safety Warnings

    Original Instructions GENERAL SAFETY WARNINGS Warning! risk of electric shock if your body is earthed or grounded. Read all safety warnings and all c) Do not expose power tools to rain instructions. or wet conditions. Water entering a power tool will increase the risk of Failure to follow the warnings and electric shock.
  • Page 3 c) Prevent unintentional starting. any adjustments, changing accesso- Ensure the switch is in the off-po- ries, or storing power tools. Such pre- sition before connecting to power ventive safety measures reduce the risk source and/or battery pack, pick- of starting the power tool accidentally. ing up or carrying the tool.
  • Page 4 b)Never service damaged battery tacts eyes, additionally seek medical packs. Service of battery packs help. Liquid ejected from the battery should only be performed by the may cause irritation or burns. manufacturer or authorized service e)Do not use a battery pack or tool that providers.
  • Page 5 Important safety instruc- container with other metal objects such as nails, coins, etc. tions for battery cartridge c.Do not expose battery cartridge to 1.Before using battery cartridge, read water or rain. all instructions and cautionary mark- A battery short can cause a large ings on (1) battery charger, (2) bat- current flow, overheating, possible tery, and (3) product using battery.
  • Page 6 THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Charging the battery only below 40ºC. Always recycle batteries. Do not destroy battery by fire.
  • Page 7: Additional Safety Warnings

    Additional safety warnings 10.Keep hands away from moving parts. Cordless rotary hammer safety 11.Do not leave the tool running. Oper- warnings ate the tool only when hand-held. 1.Wear ear protectors. Exposure to 12.Do not point the tool at any one noise can cause hearing loss.
  • Page 8: Specified Conditions Of Use

    SPECIFIED CONDITIONS OF USE Warning! The machine is intended for hammer drilling and chiseling in concrete, brick. It is also suitable for drilling without This power tool produces an impact in wood, metal, ceramic and electromagnetic field during plastic. operation. This field may under some circumstances interfere with active or passive medical implants.
  • Page 9: Components List

    SPECIFICATIONS Components list 1. Tool holder locking sleeve 5. Foward and reverse 2. Dust protection cap rotation control 3. Depth gauge 6. On/off switch 4. Fuction mode selection switch Technical specifications TRHLI20228,TRHLI20228X, TRHLI20228E,TRHLI20228XE, UTRHLI20228,UTRHLI20228X Model No. TRHLI20228X-X,TRHLI20228M, (X stands for 1 to 9) TRHLI20228XM,TRHLI20228XA (X stands for 1 to 9) Rated voltage...
  • Page 10 Warning Note Only use original battery pack x (blank, 1,2,3,4,5,6,7,8,9, E, S,A,M) and battery charger as below for y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M) this power tool. Product Battery pack TFBLI2001 Model No. TFBLI20015 TFBLI2001x TFBLI2053 TFBLI2001Sy Output 20V MAX voltage Output 1.5Ah 2.0Ah...
  • Page 11 OPERATION PICTURE...
  • Page 12: Before Putting Into Operation

    Li-ion battery installed Warning! in the machine .Do not use another battery charger. The Li-ion battery pack Your new TOTAL Rotary Hammer is protected against deep discharging. Drill generates powerful forces When the battery pack is empty, the...
  • Page 13 hole/screw you wish to make. Then 7.Function mode selection (see Dia.D) clamp the depth gauge by rotating the handle clockwise. The operation of the gearbox for each 4.On/off switch(see Dia.C) application is set with the function selector dial (4). To change between Depress the On/Off switch (5) to start functions, depress the unlocking but- and release it to stop your tool.
  • Page 14: Problem Solution

    your product. If the battery pack is only 8.Overload protection partly discharged it may be re-charged When overloaded, the motor comes in less than 1 hour. If the battery pack to a stop. Relieve the load on the ma- and ambient temperature are very cold chine immediately and allow cooling then re-charging may take 1-1.5 hours.
  • Page 15: Environmental Protection

    Environmental protection store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Disposal Occasionally you may see sparks The machine, its accessories through the ventilation slots. This is and packaging materials should be normal and will not damage your pow- sorted for environmentally friendly er tool.
  • Page 16 MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure Disconnect the When the machine is ●The power cord or wiring is broken, machine from turned on, the electric power cord plug malfunction; the mains and motor does not work.
  • Page 17 TOTAL TOOLS WORLD MADE IN CHINA T0323.V03 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
