Total UTRHLI20228 Series Product Manual

Lithium-ion rotary hammer
Hide thumbs Also See for UTRHLI20228 Series:

Advertisement

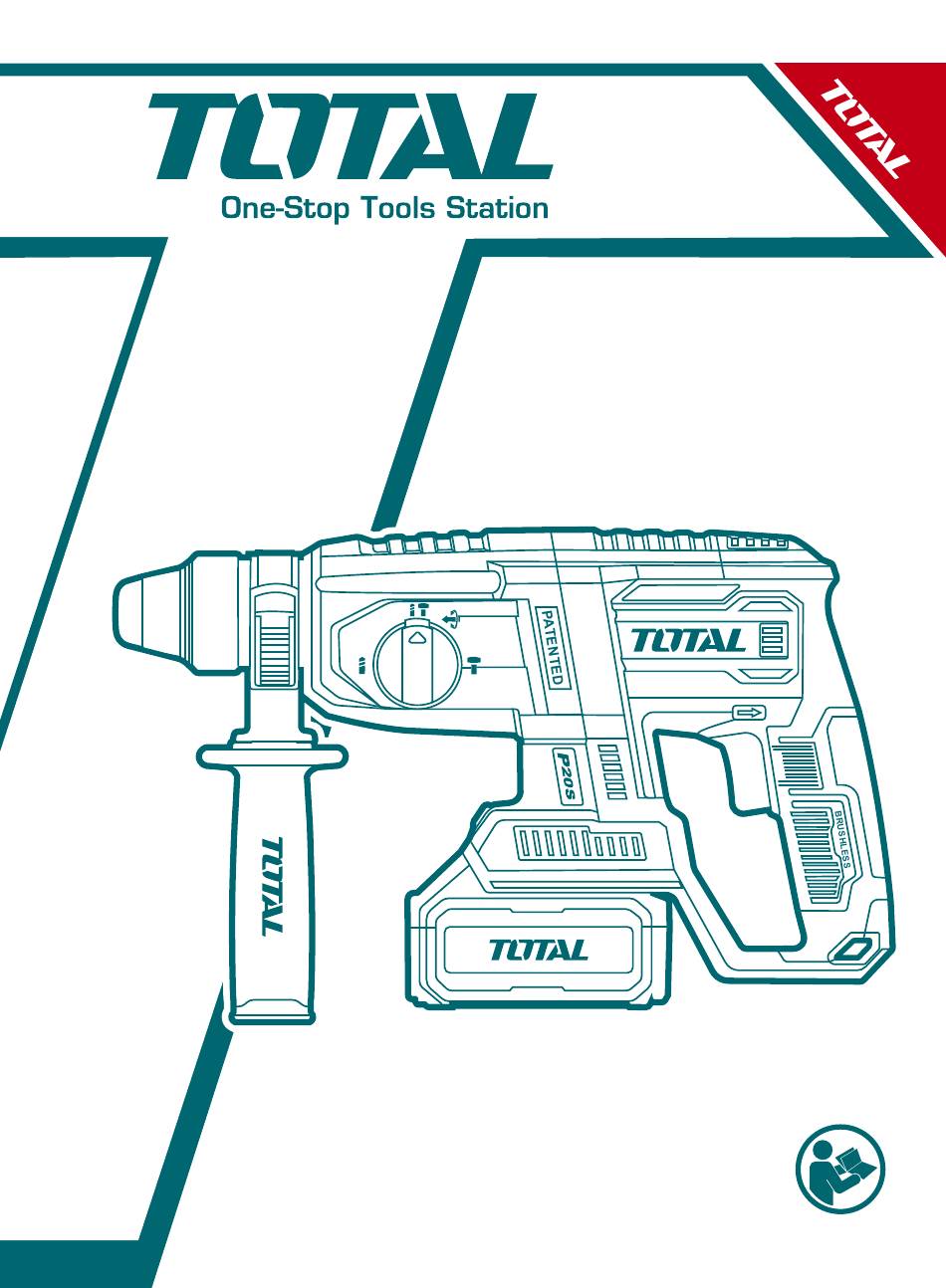

PRODUCT MANUAL
LITHIUM-ION
ROTARY
HAMMER
TRHLI20228 TRHLI2022875 TRHLI20228xy
UTRHLI20228 UTRHLI2022875 UTRHLI20228xy
x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M)
y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTRHLI20228 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Total UTRHLI20228 Series

  • Page 1 PRODUCT MANUAL LITHIUM-ION ROTARY HAMMER TRHLI20228 TRHLI2022875 TRHLI20228xy UTRHLI20228 UTRHLI2022875 UTRHLI20228xy x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M)
  • Page 2: General Power Tool Safety Warnings

    | English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
  • Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
  • Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
  • Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
  • Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
  • Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
  • Page 11: Additional Safety Warning

    | English ADDITIONAL SAFETY WARNING Cordless rotary hammer safety warnings Wear ear protectors. Exposure to noise can cause hearing loss. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
  • Page 12: Technical Specifications

    | English SPECIFICATIONS Tool holder locking sleeve Function mode selection switch Dust protection cap Forward and reverse rotation Depth gauge control On/off switch Technical specifications TRHLI2022875 UTRHLI2022875 Model No. TRHLI20228xy UTRHLI20228xy Rated voltage No load speed 0-1100r/min 0-1100r/min Impact rate 0-5000/min 0-5000/min Impact energy...
  • Page 13 | English ⚠ WARNING! Only use original battery pack and battery charger as below for this power tool: Product Battery pack Model No. Type Rated voltage Rated capacity TFBLI2001 2.0Ah TFBLI2001xy TFBLI2002 Lithium-Ion 18.5V d.c., 20V Max 4.0Ah TFBLI2002xy TFBLI2053 5.0Ah TFBLI2053xy Model No.
  • Page 14 | English OPERATION PICTURE...
  • Page 15: Function Description

    | English FUNCTION DESCRIPTION Operation guidelines ⚠ NOTE: Before using the tool, read the instruction book carefully. Before putting into operation 1.Charging the battery pack The battery pack charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. The Li-ion battery pack is protected against deep discharging.
  • Page 16 | English 2.Auxiliary handle (see Figure B) Slide the handle onto the hammer and rotate to the desired working position. To clamp the auxiliary handle rotates the handle clockwise. To loosen the auxiliary handle, rotate the handle counter-clockwise. ⚠ WARNING Always use the auxiliary handle.
  • Page 17: Working Hints For Your Tool

    | English Mode for simultaneous drilling and impacting of concrete, Masonry Mode for or drilling into steel, wood and plastics Mode for or chiseling Mode for adjust the chuck angle of chiseling ⚠ NOTE: Select this function mode first, adjust the chuck angle to desired direction.
  • Page 18 | English Problem solution 1.Reasons for different charging times Your charge time can be affected by many reasons which are not defects in your product. If the battery pack is only partly discharged it may be re-charged in less than 1 hour. If the battery pack and ambient temperature are very cold then re- charging may take 1-1.5 hours.
  • Page 19 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
  • Page 20 TOTAL TOOLS WORLD MADE IN CHINA T0224.V01 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
