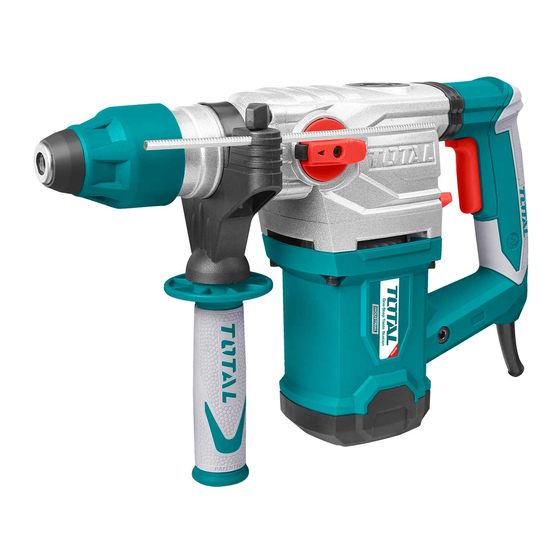

ROTARY HAMMER
v
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH115326 and is the answer not in the manual?

Questions and answers

Marcos Fuentes
January 29, 2025

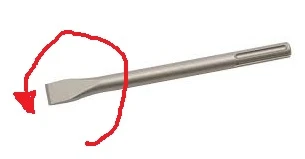

How to change the orientation of the chisel

User image 6799ae716cbc0
1 comments:
Mr. Anderson
February 10, 2025

The document does not provide specific instructions on changing the orientation of the chisel on the Total TH115326. However, it mentions turning the mode selector switch and sharpening chiseling tools for maintenance.

This answer is automatically generated

Summary of Contents for Total TH115326

  • Page 1 ROTARY HAMMER...
  • Page 2: Security Instructions

    Security instructions Caution Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Note: Save all warnings and instructions for future reference. 1) Work area safety a. Keep the work area clean and well lit to prevent accidents. b.
  • Page 3 b. Do not use the power tool if its power switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool to avoid accidental starting of the tool.
  • Page 4: Additional Security Warnings

    Additional security warnings • Wear ear protectors. Exposure to noise can cause hearing loss. • Use auxiliary handles, if supplied with the tool. Loss of control can cause personal injury. Hold power tool by insulated gripping surfaces when performing an operation •...
  • Page 5: Technical Data

    Technical data Technical sheet of the hammer drill Power 1500W Voltage 220-240V~50/60Hz No load speed 850/min Impact rate 4400/min Energy 5.5J Concrete drilling capacity 32mm Steel drilling capacity 13mm Wood drilling capacity 42mm Product description 1. Spare chuck 6. Unlock button 2.
  • Page 6 Set up Before using Watch out for hidden power lines or gas and water pipes. Check the work area with devices such as a metal detector. Always use the correct supply voltage. The power supply voltage must match the value indicated on the nameplate of the machine.
  • Page 7: Operating Modes

    Operating modes Hammer drill mode Turn the mode dial to and turn the switch to Note: When changing operating modes, please turn ON/OFF switch slightly. Chisel mode Turn the mode selector switch to and then turn the switch to the direction Drill mode Turn the mode selector switch to and then turn the switch to the direction Maintenance...
  • Page 8: Exploded View

    Should the machine fail despite the care taken in manufacturing and testing, contact your official TOTAL brand dealer. Environment Do not dispose of electrical appliances as unsorted municipal waste, use •...
  • Page 9 ROTARY HAMMER...
