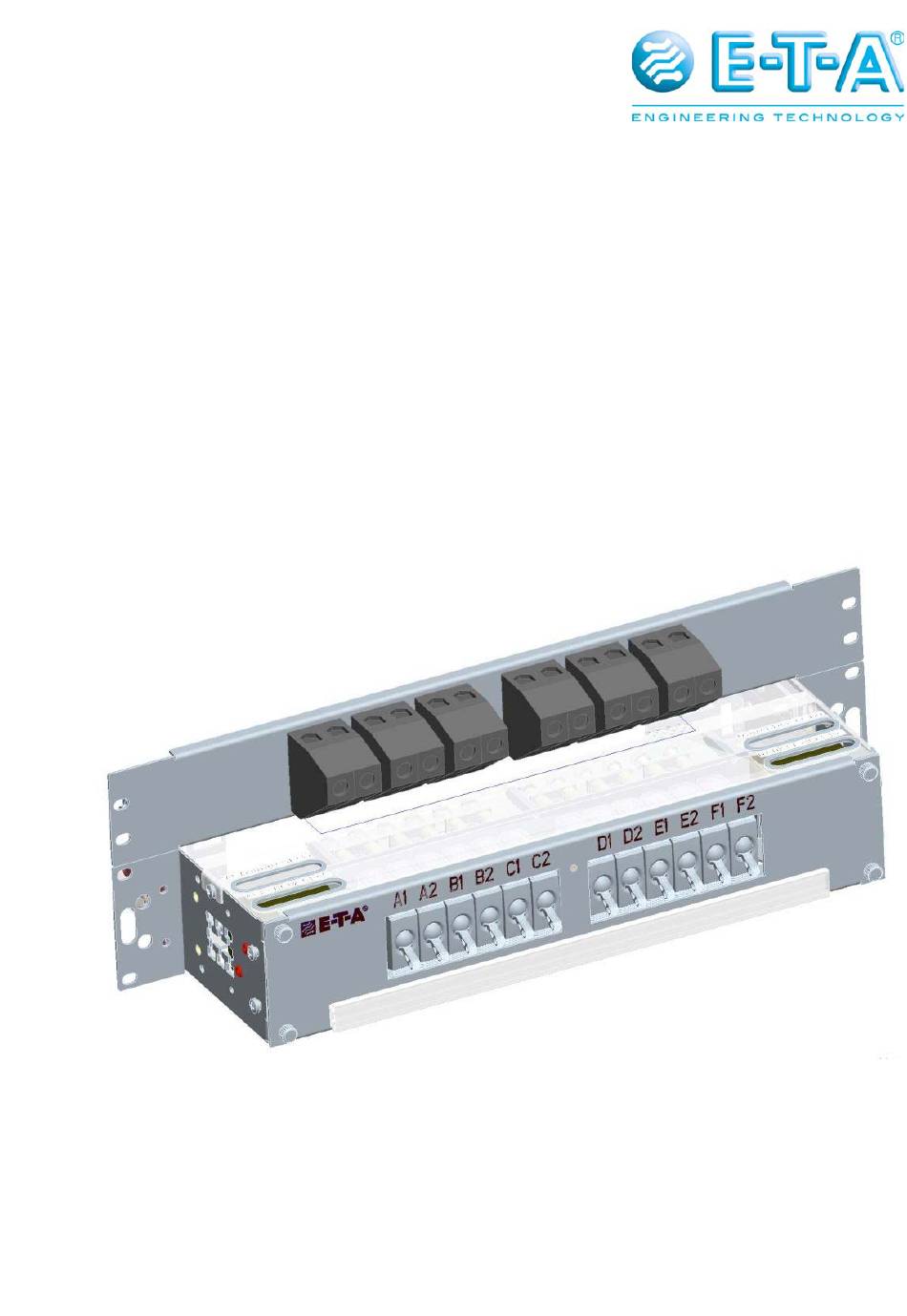

- Page 1 Installation Guide Power-D-Box 19BGT-2-X8345-12R4SW-B0-S422...
- Page 2 CAUTIONS! • PDU must be located in restricted access locations only. • Installation and service must be performed by qualified and electrically instructed personnel and meet local electrical codes or operating company guidelines. The use of protective equipment, including insulated tools, is recommended during installation or service at all times.
- Page 3 Load connections via front screw terminals (minus und plus). • Load cable cross sections up to 10 mm². • Cable feed from top, cable attachment from front. • Front plate with labeling for CBEs A1/A2, B1/B2, C1/C2, D1/D2, E1/E2, F1/F2. • Circuit Breakers E-T-A type 8345-C01A-R0T1-DB1B1B-40A included.
-
Page 4: Product Specifications
65 A per feed Max. Load Current per Channel 40 A Number of Circuit Breakers Up to 12 Circuit Breakers E-T-A Type 8345-C01A-R0T1-DB1B1B-40A (included) Operating Ambient Temperature 5 °C…+55 °C Storage Temperature -20 °C...+70 °C Mechanical Data Height: 155,58 mm incl. supply front connection panel (3,5U) - Page 5 Principle Wiring Diagram Fig. 1- Principle Wiring Diagram...
- Page 6 Product Illustrations and Dimensions Fig. 2 Front View Load cable strain relief Fig. 3 Side View...
- Page 7 Supply and Load Connections M8 Grounding Bolt M8 Grounding Bolt Supplies internal wiring, cable cross section 16 mm² Supplies 1 - 6, cable cross section up to 50 mm² Load connections A - C Load connections D - F Cable cross sections 10 mm² Cable cross sections 10 mm²...
-
Page 8: Important Note
The manufacturer is unable to accept responsi-bility for customer or third party liability, warranty claims or damage caused by incorrect installation or improper hand-ling resulting from non-observance of these instructions E-T-A Elektrotechnische Apparate GmbH Industriestrasse 2-8 · D-90518 ALTDORF GERMANY Phone: +49 9187 10-0 ·...
