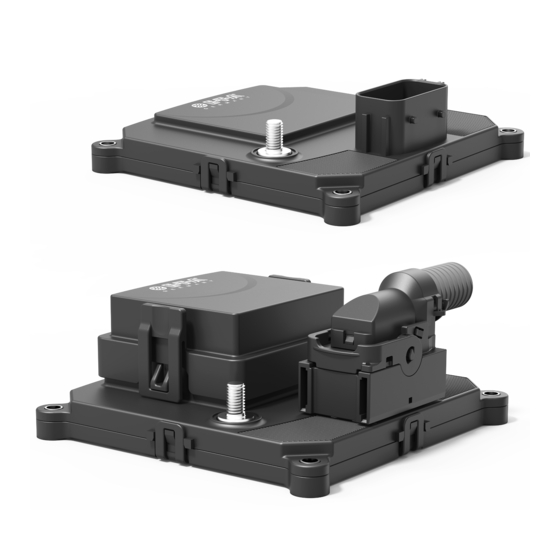

E-T-A SCS200 User Manual

Smart control systems – intelligent power distribution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
®
SCS
Smart Control Systems –
SCS200 intelligent power distribution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCS200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for E-T-A SCS200

Summary of Contents for E-T-A SCS200

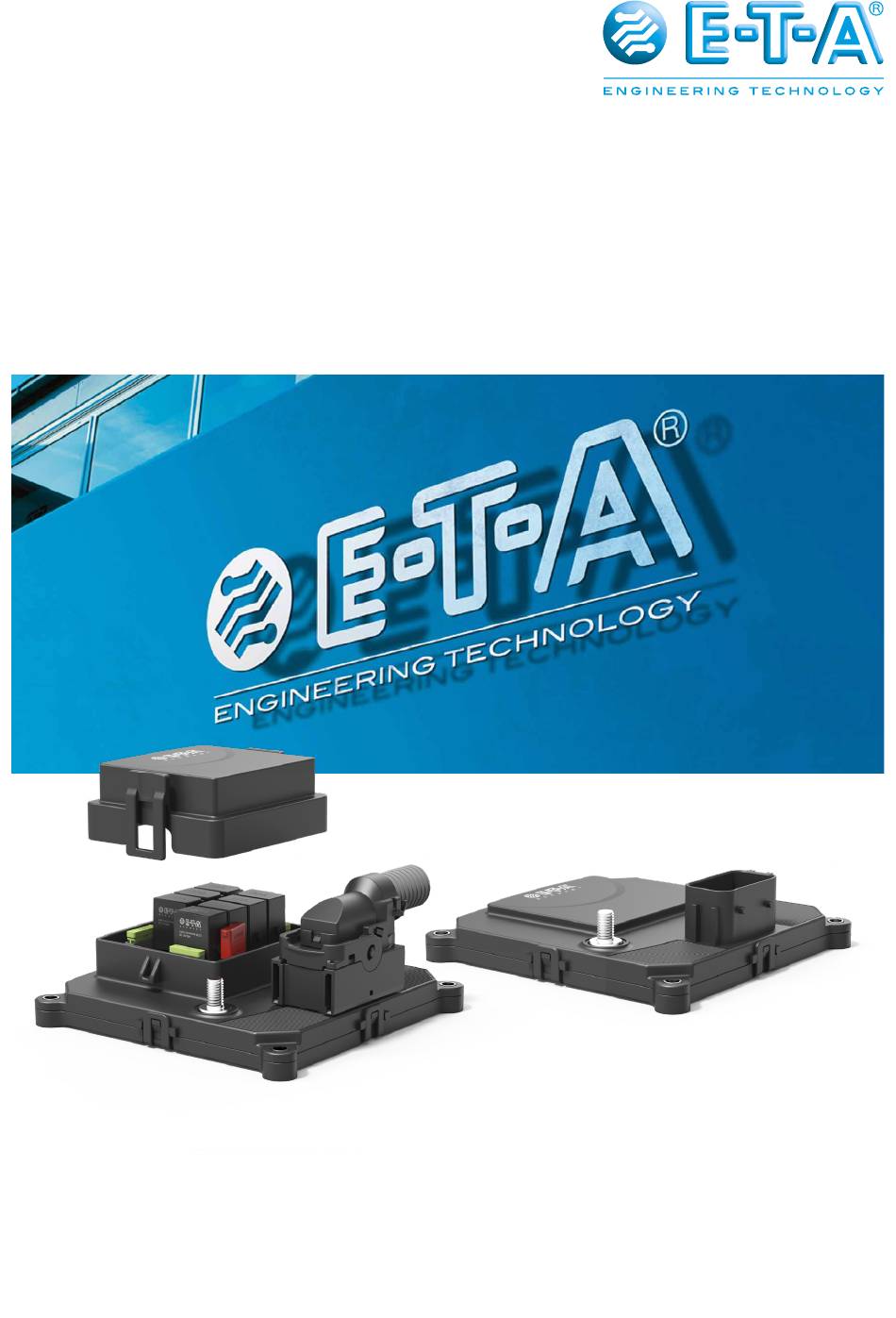

  • Page 1 User Manual ® Smart Control Systems – SCS200 intelligent power distribution...

  • Page 2: Table Of Contents

    Semi-conductor version SCS200-SC… 4.1.1 Dimensions SCS200-SC… 4.1.2 Pin assignment SCS200-SC08-... 4.1.3 Pin assignment SCS200-SC12-… Relay version SCS200-RC… 4.2.1 Recommended relays and fuses for SCS200-RC… 4.2.2 Dimensions SCS200-RC08-… 4.2.3 Pin assignment SCS200-RC08-… 4.2.4 Relay assignment SCS200-RC08-… 4.2.5 Visual LED indication SCS200-RC…...
  • Page 3 7.3.1 Address claiming 7.3.2 Manufacturer ID Overview of CAN messages 7.4.1 Initialisation/configuration 7.4.1.1 Change of SCS200 node address 7.4.1.2 Adjustment of current rating per channel 7.4.1.3 Adjustment of delay periods per channel 7.4.1.4 Deactivation of fast disconnection trip 2 7.4.1.5 Default configuration 7.4.1.6...

  • Page 4: General Information

    2 General information 2.1 Safety instructions 2.2 Qualified personnel This manual points out possible danger This user manual must exclusively be for your personal safety and gives used by qualified personnel, who are able instruction how to avoid property damage. –...

  • Page 5: Introduction

    More intelligent and complex systems as well as the electrification of loads currently play a decisive role in the development of on-board electrical systems. The SCS200 is the right answer to these requirements. It is an intelligent power distribution system, allowing decentralised control and monitoring of loads via the CAN bus.

  • Page 6: Hardware Options

    4 Hardware options There are two main versions of the SCS200 which superficially can be distinguished by the version of switching elements installed.The two versions are the semi-conductor version and the relay version, which are described in more detail in the following.

  • Page 7: Pin Assignment Scs200-Sc08

    4.1.3 Pin assignment SCS200- SC12-... The following table shows the pin assignment of the fully The following table shows the pin assignment of the fully electronic SCS200 version with 8 load outputs. electronic SCS200 version with 12 load outputs. Ampacity of outputs:...

  • Page 8: Relay Version Scs200-Rc

    A wake pin allows waking the module via the hardware from the sleep mode. The SCS200 version with relay and fuse blocks in an IP66/67 enclosure is a12/24 VDC device and available with 8 load outputs. 4.2.1 Recommended relays and fuses for SCS200-RC…...

  • Page 9: Dimensions Scs200-Rc08

    4.2.2 Dimensions SCS200- RC08- ® =4 Nm ø6,4±0,2 (4x) for screw M6. T=6 Nm 21 pole socket, =8 Nm suitable connector: AMP LEAVYSEAL part no. 1-1534127-1 fig. 3: Dimensions SCS200- RC08-...

  • Page 10: Pin Assignment Scs200-Rc08

    CAN bus via analog inputs. Cable lengths can thus be reduced and so can ECU inputs. LOAD_6 10 A load The analog inputs of the SCS200 cover a voltage range of 0 - IN_A_2 Analogue input 2 10 VDC.

  • Page 11: Mounting

    5 Mounting Please ensure sufficient space for the mating plugs of the load terminals (fig. 5). For the relay version, this must also be observed for removing the cover. required space for plugging in the TYCO mating plug (80) 98.8 required space for plugging in the TYCO mating plug fig.

  • Page 12: Software And Diagnostic Functions

    The product is a slave module which is controlled by a superordinate control unit or ECU via the CAN bus. The SCS200 receives commands for switching the load outputs as CAN frames and, in the event of a change or upon request, provides diagnostic data and measuring values.

  • Page 13: Configuration Of The Current Rating Per Channel

    2: 25 ms (default) 6.2.3 Overload disconnection total current and U In the event of excess total current across the module, the load outputs of SCS200 are disconnected. This is the case with the following current values: SCS200-SC12-…: disconnection at a total current of >...

  • Page 14: Diagnostic Information

    Measuring accuracy cannot be guaranteed for the entire life span of the device. 6.3.3 Output status and troubleshooting The SCS200 provides feedback on the switching status of the channels and the status or error on the load itself in the form of CAN frames.

  • Page 15: Open Load

    6.3.3.1 Open load If a channel is switched on, but no or only very low load current flows, the SCS200 detects this condition as open load. A corresponding CAN message is sent off cyclically every 100 ms. The open load message is sent from the following current ratings: SCS200-SC…:...
  • Page 16 7 CAN communication The CAN communication of the SCS200 is based on the CAN 2.0B specification and supports the SAE J1939. The product can be integrated into a corresponding CAN system with other standard components. 7.1 Physical layer For a reliable communication, the CAN physical layer should be built up to the specifications of ISO 11898-2 or SAE J1939-1x.
  • Page 17 7.3.1 Address claiming The SCS200 is assigned an unambiguous node address. Upon delivery, this SCS200 ID is set to 0xA0 by default. The node address of the module can manually be changed per CAN message. Additionally, the SCS200 supports address claiming as per J1939-81 to independently claim an unambiguous source address on the bus.
  • Page 18 Adjustment of these values is via CAN messages. The superordinate control unit or ECU can directly send these CAN frames. The SCS200 can therefore be called a plug-and-play module. However, the SCS200 can also be addressed via the PC using standard CAN monitoring software.
  • Page 19 Byte Description Value Byte 4 new node address 0x01...0xFD Byte 5 not used 0x00 Byte 6 not used 0x00 Byte 7 not used 0x00 Byte 8 not used 0x00 7.4.1.2 Adjustment of current rating per channel CAN data Byte Description Value bits 8 –...
  • Page 20 The delay period to be adjusted per channel is calculated according to the following scheme: basic delay (s) multiplier (0 – 10) delay periods (s) Coding the basic delay within the CAN message Value ON delay / OFF delay (s) 1000 7.4.1.4 Deactivation of fast disconnection trip 2 CAN data...
  • Page 21 0x63 0xD8 0x02 0x0A 0x06 0x00 0x00 0x00 7.4.2 Save and query the configuration The current configuration of the SCS200 is saved in the EEPROM of the module. Thus, all settings persist even after disconnection from the supply voltage or ON/OFF operation of the device.
  • Page 22 0x00 Byte 8 not used 0x00 The SCS200 responds to the requirement of a configuration query with the following four Proprietary B messages which reflect the configuration values stored in the EEPROM. PGN 65296 – Proprietary B Transmission Rate: as requested by the user, max. 100 ms...
  • Page 23 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Byte 8 Contents Contents Contents Contents Contents Contents Contents Contents Contents EEPROM EEPROM EEPROM EEPROM EEPROM EEPROM EEPROM EEPROM address address address address address address...
  • Page 24 Data Length: 8 bytes data page PDU Format: PDU Specific: Default Priority: Parameter Group Number: 65297 (FF11h) CAN-ID: 0x18FF11xx xx node address SCS200 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7...
  • Page 25 Data Length: 8 bytes data page PDU format PDU Specific: Default Priority: Parameter Group Number: 65298 (FF12h) CAN-ID: 0x18FF12xx xx Node address SCS200 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7...
  • Page 26 Data Length: 8 bytes Data page: PDU format PDU Specific: Default Priority: Parameter Group Number: 65299 (FF13h) CAN-ID: 0x18FF13xx xx Node address SCS200 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7...
  • Page 27 Contents Byte 8 EEPROM address 0x7F Example: For channel 3 of the SCS200, an OFF delay of 15 s and a current rating of 25 A was configured. Node-ID SCS200: 0xA0 CAN-ID CAN data 0x18FF10A0 0x00 0x00 0x00 0x00 0x00 0x23 0x00 0x00...
  • Page 28 Coding the current rating within the CAN message no change switch on channel switch off channel Example switch on channels 5 and 7 Node-ID SCS200: 0xA0 Source address of sender: 0x64 CAN-ID CAN data 0x18EFA064 0x03 0xD8 0x00 0x00 0x10 0x10 0x00 0x00 7.4.3.1.2 Query current and voltage measuring values per channel...
  • Page 29 4 – 1 query current & voltage channel 12 0x0…0x1 The SCS200 responds to the particular request with Proprietary B messages (PGNs 65288 to 65293, also see 7.4.4.3 and 7.4.4.4). 7.4.3.2 Queries of load conditions and diagnosis PGN 61184 – Proprietary A...
  • Page 30 The SCS200 responds to the particular request with Proprietary B messages (PGNs 65294 and 65295, also see 7.4.4.5 and 7.4.4.6). If an error was detected by the module, the diagnosis bits must be reset or acknowledged by sending the corresponding...
  • Page 31 Byte 5 0x00 Byte 6 not used 0x00 Byte 7 not used 0x00 Byte 8 not used In order to put all SCS200 modules on the bus simultaneously into sleep mode, the following Proprietary B broadcast message must be used.
  • Page 32 Transmission Rate: N/A (only Rx) Data Length: 8 bytes Data Page: PDU format PDU Specific: Destination Address (SCS200 node address) Default Priority: Parameter Group Number: 65281 (FF01h) CAN-ID 0x18FF01yy yy: optional source address of sender Overview set-up CAN data Byte 1...
  • Page 33 Byte 8 7.4.4 SCS200 broadcast information (CAN Tx) In the event of changes of the measured values and as a response to commands and queries, the SCS200 sends of Proprietary B CAN messages. On start-up, the module first responds with the 'Message for Address Claimed' message defined in SAE J1939 as a start-up message, as already described in 7.3.1.
  • Page 34 7.4.4.2 Voltage values at analog inputs The measured voltage levels are sent by the SCS200 within two different CAN messages list in the following: The messages are sent as a response to the corresponding transmission request and upon change of the corresponding voltage value.
  • Page 35 7.4.4.3 Voltage values per channel The measured voltage levels are sent by the SCS200 within three different CAN messages as listed in the following: The messages are sent as a response to the corresponding transmission request and upon change of the corresponding voltage...
  • Page 36 Data Length: 8 bytes Data page: PDU format PDU Specific: Default Priority: Parameter Group Number: 65288 (FF08h) CAN-ID 0x18FF08xx xx Node address SCS200 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7...
  • Page 37 Byte 8 If no loads are connected to the channels of the SCS200, the outputs are “floating” or without defined potential. Upon query of the values, a low voltage value will therefore be shown at the output although the corresponding channel is not...
  • Page 38 7.4.4.4 Load current per channel The measured load currents and are sent by the SCS200 within three different CAN messages as listed in the following: The messages are sent as a response to the corresponding transmission request and upon change of the corresponding voltage value.
  • Page 39 Data Length: 8 bytes Data page: PDU format PDU Specific: Default Priority: Parameter Group Number: 65293 (FF0Dh) CAN-ID 0x18FF0Dxx xx Node address SCS200 Overview set-up CAN data Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7...
  • Page 40 7.4.4.5 Load status and troubleshooting Status and error messages are sent by the SCS200 within the CAN message mentioned below. If a failure occurs, the diagnostic message will be sent off cyclically every 100 ms. The message will also be transmitted as a re- sponse to the corresponding transmission request.
  • Page 41 0x01 0x00 0x20 0x00 0x00 0x00 0x00 0x00 7.4.4.6 Switching status of load outputs The switching status of the output channels are sent by the SCS200 within the CAN message mentioned below. The message will be transmitted as a response to the corresponding transmission request.
  • Page 42 Coding the current rating within the CAN message channel OFF channel ON 8 Tests and technical data 8.1 Environmental testing and approvals The following approval test was carried out for all SCS200 versions: Name Chapter/section Comments Directive R-10, regulatory status 5...
  • Page 43 ISO 16750-5 Chemical loads After a free fall, all relays and fuses of the SCS200-RC... version must be pushed in again into the socket. The impact may have loosened the tight fit of the components. High vibration values may lead to a deterioration of the internal resistance values in the sockets over the entire life span.
  • Page 44 Fig. 9 shows the derating of the max. total current of 12-channel semi-conductor version over the ambient temperature. ambient temperature [ ºC ] fig. 9: Derating of max. total current (SCS200-SC12-...) Fig. 10 shows the derating of the ampacity per load output at max. total current over the ambient temperature.
  • Page 45 [ ºC ] fig. 11: Derating of max. total current (SCS200- RC08-...) Fig. 12 shows the derating of the ampacity per load output at max. total current for 12 VDC. The ampacity of the single channels can be increased by a reduced total current.
  • Page 46 5-8 fig. 13: Derating of the ampacity per channel, at max. total current (SCS200- RC08-..., 24 VDC) Cable cross sections must be adjusted to the actual current and the operating temperature conditions. The temperature behaviour of the device improves with larger cross sections.
  • Page 47 Notes...
  • Page 48 E-T-A Elektrotechnische Apparate GmbH Industriestraße 2-8 . 90518 Altdorf GERMANY Bedienungsanleitung/Instruction manual B_SCS200_ENG_03082020 Phone +49 9187 10-0 . Fax +49 9187 10-397 Bestell-Nr./Ref. number Y31359402 - Index: - E-mail: info@e-t-a.de . www.e-t-a.de Ausgabe/Issue: 07/2020 Alle Rechte vorbehalten/All rights reserved...
