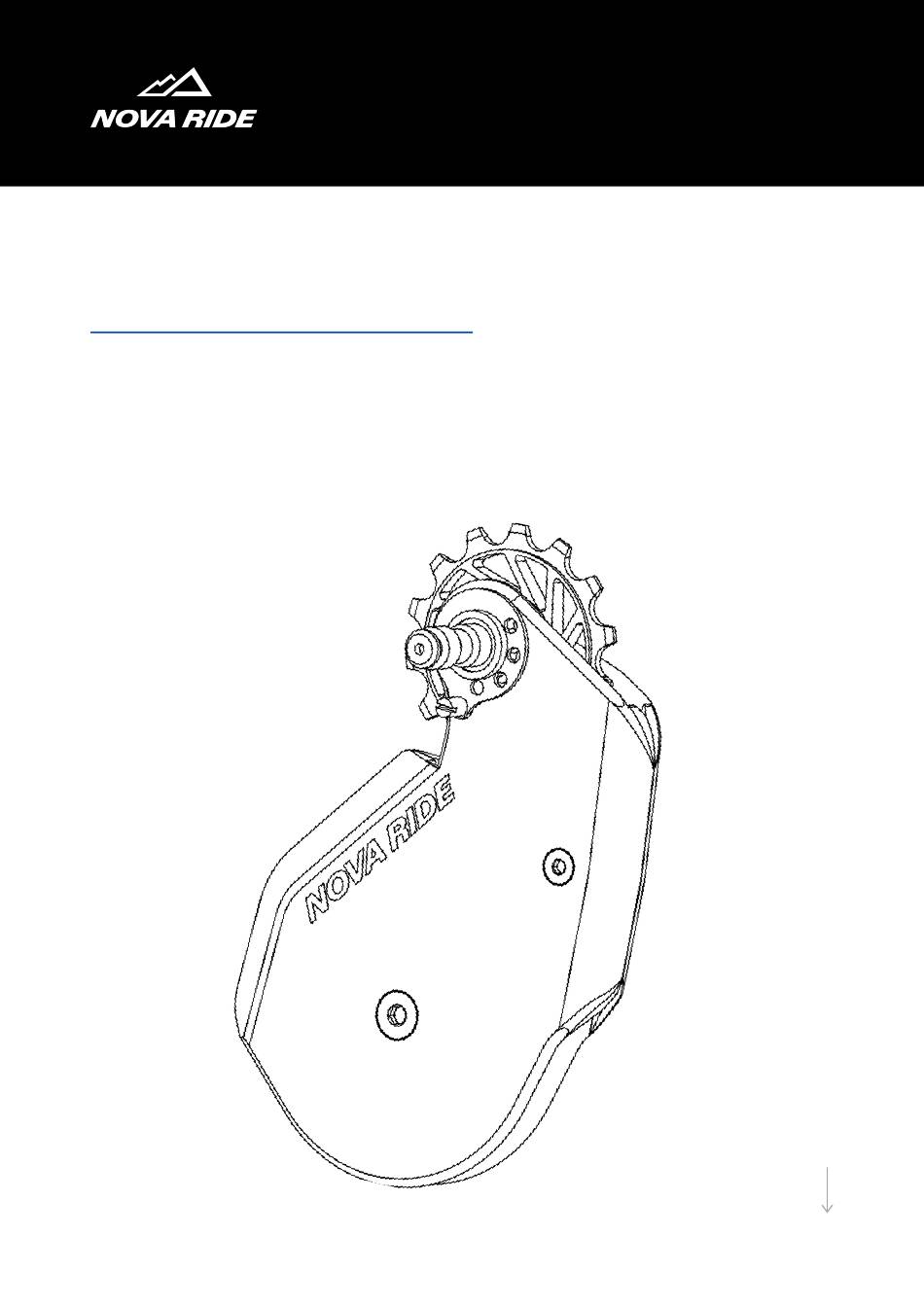

- Page 1 Installation guide CARBON CERAMIC DERAILLEUR AERO ULTEGRA R8100 & 8150 DURA-ACE R9200 & 9250...
-
Page 2: Tools Needed
4. A new chain INSTALLATION VIDEO Follow the instructions in the video "How To Install your Carbon Ceramic Derailleur for Shimano | Nova Ride" to properly mount your new cage on our Nova Ride Youtube channel. Scan this QR Code to access our... -
Page 3: Installation Step By Step
INSTALLATION STEP BY STEP 1. Remove your chain using a chain remover. Remove the rear wheel from your bike. 3. Place your derailleur on the largest cog. - Page 4 4. Unscrew the stopper while holding your original cage firmly. Hold the original yoke firmly and rotate it clockwise. 6. Then, unscrew the derailleur screw using the T10 Torx key.
- Page 5 Take your Nova Ride derailleur hanger and unscrew the stopper circled in white using a flathead screwdriver. 9. Take your Nova Ride derailleur hanger and insert the spring into the middle tension hole as pictured. Top hole = Better shifting.
- Page 6 Place the Nova Ride derailleur cage into the derailleur and tighten the derailleur screw using the T10 Torx key. 12. Rotate the Nova Ride derailleur cage counterclockwise until you notice the stopper thread circled in white. Then, screw the Nova Ride stopper back in using a flat screwdriver.
- Page 7 Shift to the smallest chainring on your crankset. In this configuration, the stopper of your Nova Ride cage should not be in contact with the body of the derailleur. Be sure to leave about minimum 2 to 3 mm...
-
Page 8: Maintenance
LAST IMPORTANT SETTINGS To ensure the best riding performance make sure that your new Nova Ride Carbon Ceramic Derailleur cage is mounted correctly. NOVA RIDE CCD CAGE AND DERAILLEUR ADJUSTMENT STEPS: 1. Shift your derailleur to the largest cog. 2. Set with the tension screw the derailleur b-limit gap so that the teeth of the biggest cassette gear is around 5 mm from the upper wheel’s teeth of your Nova Ride CCD. - Page 9 If a defect is found, our sole liability and your sole remedy will be, at our option, the repair or replacement of the Nova Ride product free of charge. Return shipping to the user is handled by Nova Ride and is automatically to the address indicated on your order form.
- Page 10 READY TO PUSH YOUR LIMITS. www.novatoride.com 2025 © Nova Ride. All rights reserved.
