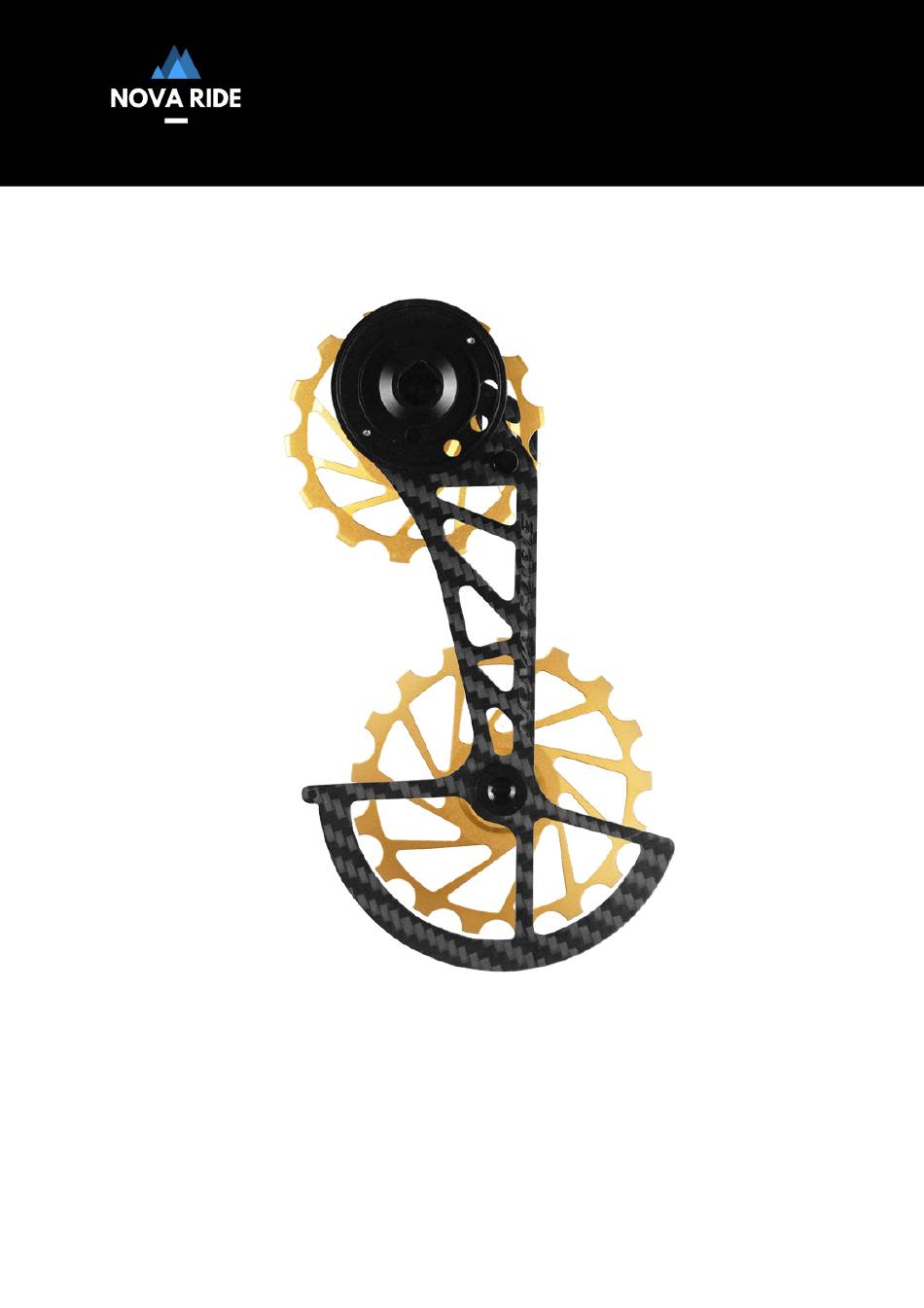

- Page 1 INSTALLATION MANUAL CARBON CERAMIC DERAILLEUR FOR SRAM AXS 12 SPEED RIVAL VERSION RED/FORCE VERSION...
-
Page 2: Tools Needed
5. New chain INSTALLATION VIDEO For installation tutorial video, please follow the instructions in the "How To Install your Nova Ride Sram AXS 12 Speed Oversize carbon pulley cage" video to properly mount your new cage on our Nova Ride Youtube channel. - Page 3 Sram derailleur cage with a 3 millimeters allen key. 5. Loosen remove completely the main central nut with the Nova Ride tool and a 5 millimeters hex key. PLEASE NOTE, the cage is under tension, so you have to hold it well.
- Page 4 3. Position the "D" interface, with the flat side on your left, as in the photo. 4. Refit the SRAM spring in the derailleur body. 5. Disassemble the Nova Ride cage by using the 2.5mm Allen key. M4x8 screw 14T Pulley wheel Carbon back...
- Page 5 (M) or high (H) tension adjuster on the cage. 4. Mount the "Carbon front" on the central screw and screw the central mounting nut by using the Nova Ride tool provided. 5. Tighten the nut by hand until the screw touching cage without forcing, then back off 180 degrees (1/2 turn).
- Page 6 STEP 4 1. Rotate the cage clockwise until you feel the cage interlocking with interface D. 2. Once the cage is fitted, continue to turn it until the stopper (circled in red) is no longer in abutment. 3. By using the tool provided, finish fixing the central nut to a torque of 6 Nm.
- Page 7 STEP 5 1. Then install the 14T pulley wheel on the upper part of the cage and the 17T pulley wheel on the lower part. M4x8 screw 2. Align the rear cage on the pulley 14T Pulley wheel wheels. Carbon back 17T Pulley wheel M4x10 screw 3.
- Page 8 Chain Length and Set-up the Gear Shifting": https://www.youtube.com/watch?v=r1z0D6rfHJA CHAIN LENGTH ADJUSTMENT STEPS : 1. The chain length changes because the Nova Ride pulley wheels are bigger. So, it is strongly recommended to use a new chain. We recommend adding 3 to 5 links to your previous chain.
-
Page 9: Maintenance
Any Nova Ride product found to be defective in materials and/or workmanship will be repaired or replaced at the discretion of Nova Ride. It is the sole responsibility of the product's user to inspect and examine the product on a regular basis to determine the need for correct maintenance or replacement. - Page 10 CONTACT Email for After Sales Service sav@novatoride.com Email for Product info info@novatoride.com Instagram nova2ride Facebook novaridecomponents YouTube Nova Ride LinkedIn Nova Ride...
- Page 11 HAVE A NICE RIDE REV 2.0 - 2023 / 01.09...
