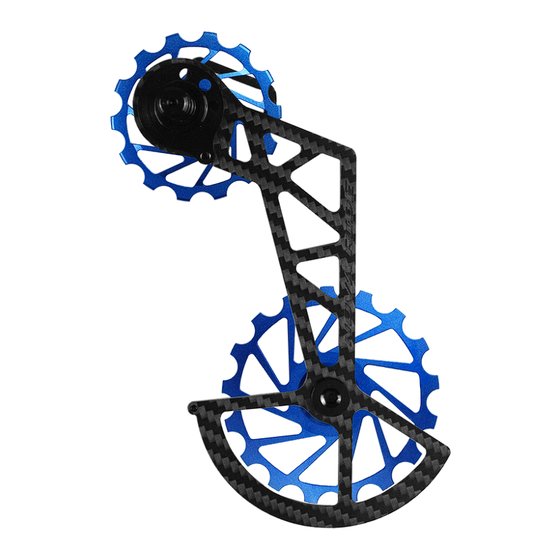

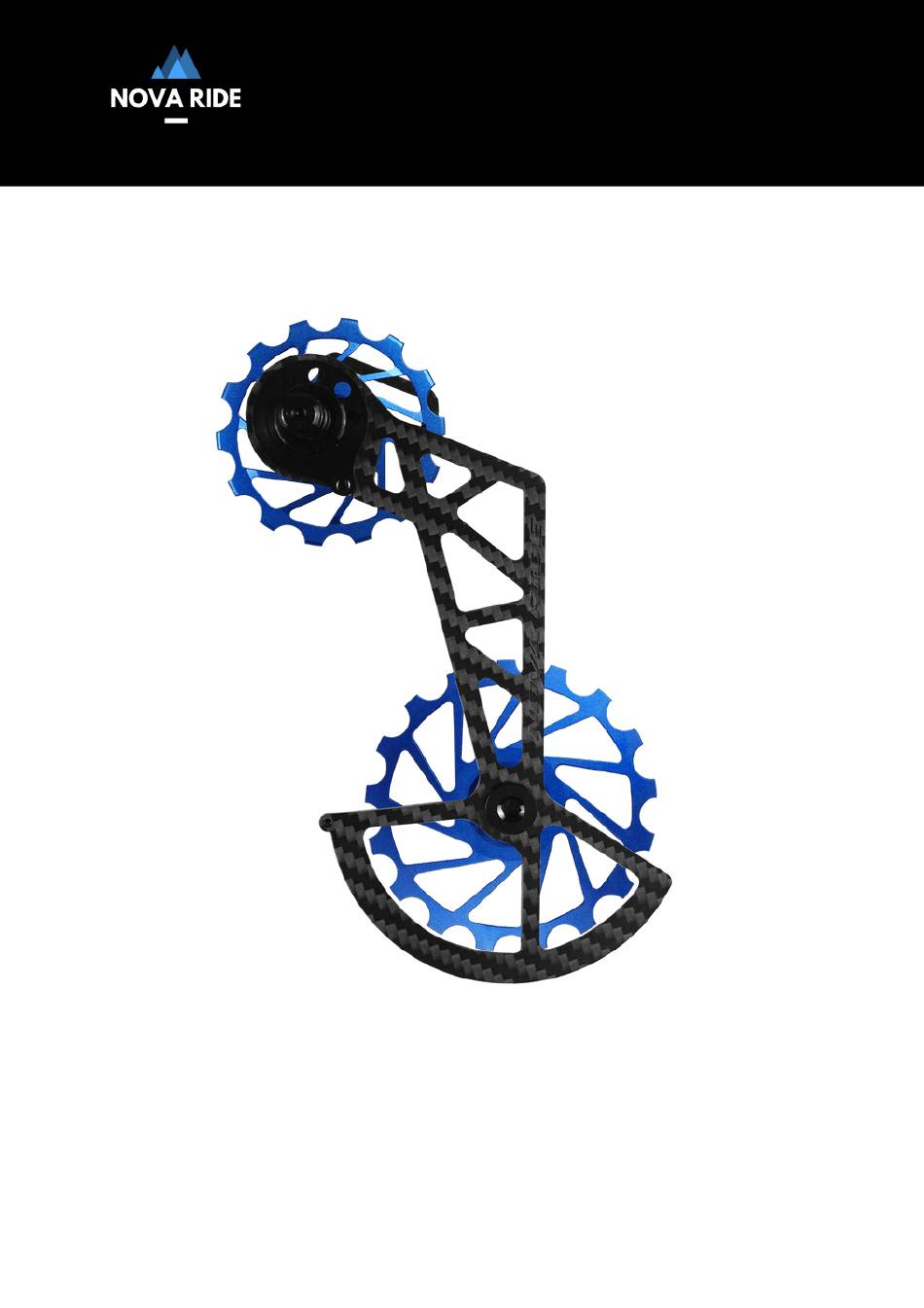

- Page 1 INSTALLATION MANUAL CARBON CERAMIC DERAILLEUR FOR SHIMANO 105 DI2 12 SPEED 105 R7150...
-
Page 2: Tools Needed
4. New chain INSTALLATION VIDEO For installation tutorial video, please follow the instructions in the "How To Install your Nova Ride Shimano 12 Speed Oversize carbon pulley cage" video to properly mount your new cage on our Nova Ride Youtube channel. - Page 3 STEP 1 Remove the rear wheel of your bike. 2. Remove the chain by using the chain remover. Shift your derailleur to the biggest sprocket. 4. Unscrew the derailleur screw by using the T10 Torx key. 5. Hold the Shimano cage firmly and twist it clockwise to remove it.
- Page 4 3. L Low = Increases performance and lower chain tension Middle Recommended tension hole H High = Better shifting and higher chain tension 4. Take the Nova Ride cage and insert the spring in the hole you choose, as in the photo.
- Page 5 STEP 3 1. Put the seal on the spring as in the photo. 2. Put the Nova Ride CCD in the derailleur rotate counterclockwise as pictured. 3. Rotate the Nova cage until you see the stopper screw pitch (circled in red).
- Page 6 STEP 4 1. Reinstall the original derailleur screw by using the Torx key. 2. Screw the stopper back on, with a little of Loctite, by using the flat screwdriver. 3. Shift your derailleur back down to the smallest sprocket. 4. Reinstall your rear wheel. 5.
- Page 7 Chain Length and Set-up the Gear Shifting": https://www.youtube.com/watch?v=r1z0D6rfHJA CHAIN LENGTH ADJUSTMENT STEPS : 1. The chain length changes because the Nova Ride pulley wheels are bigger. So, it is strongly recommended to use a new chain. We recommend adding 3 to 5 links to your previous chain.
-
Page 8: Maintenance
Any Nova Ride product found to be defective in materials and/or workmanship will be repaired or replaced at the discretion of Nova Ride. It is the sole responsibility of the product's user to inspect and examine the product on a regular basis to determine the need for correct maintenance or replacement. - Page 9 CONTACT Email for After Sales Service sav@novatoride.com Email for Product info info@novatoride.com Instagram nova2ride Facebook novaridecomponents YouTube Nova Ride LinkedIn Nova Ride...
- Page 10 HAVE A NICE RIDE REV 2.0 - 2023 / 11.09...
