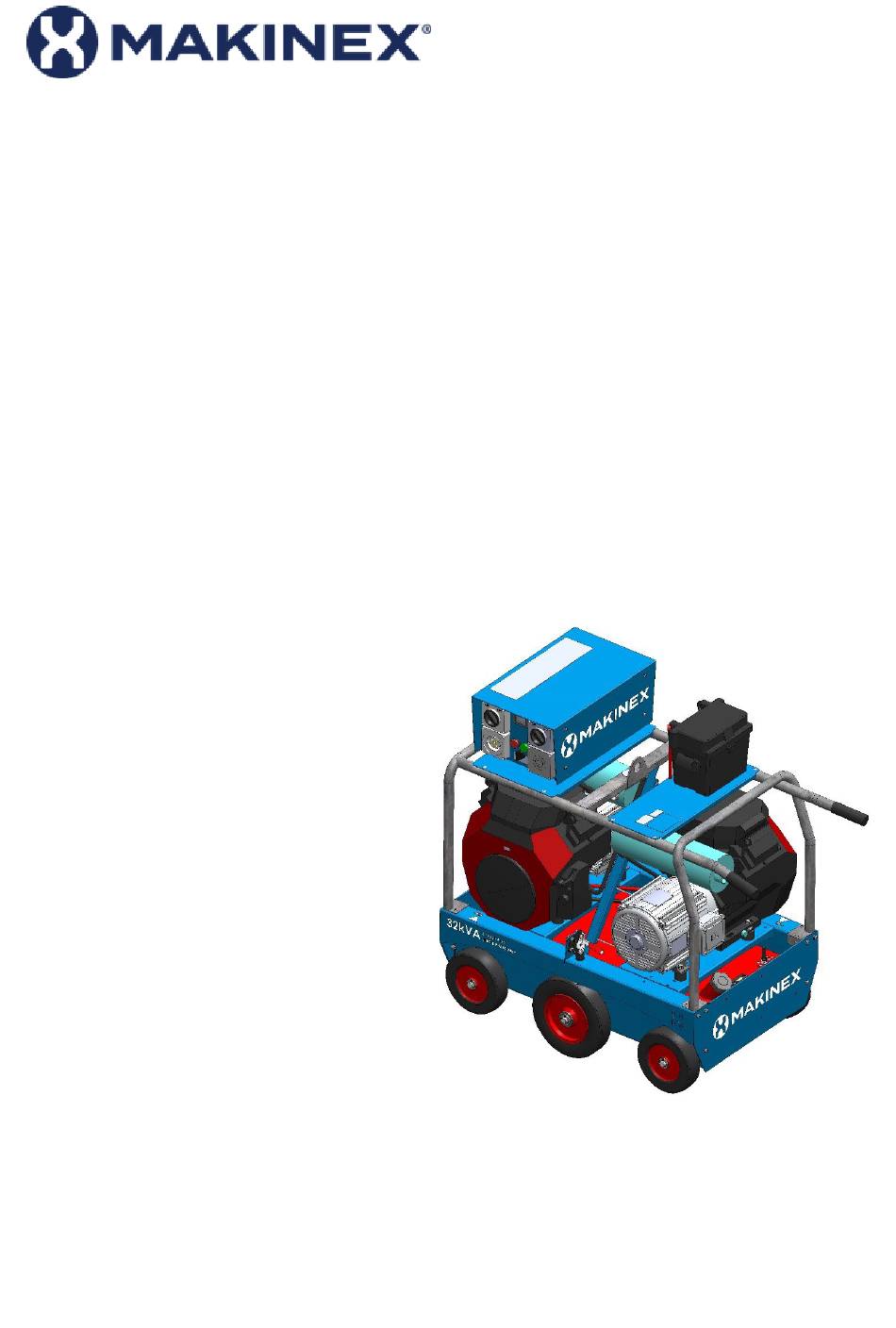

- Page 1 Generator GEN-32P-AU-V2 OPERATOR’S MANUAL Rev 0125...
-
Page 2: Table Of Contents
Contents ............................... 1 INTRODUCTION ..........................4 DISCLAIMER ..........................4 ABOUT THIS MANUAL ....................... 5 KEY TERMS .................................. 5 SAFETY INFORMATION ......................6 GENERATOR POSITIONING FOR SAFE USE ........................8 ELECTRICITY RELATED SAFETY PRECAUTIONS......................8 FIRE -RELATED SAFETY PRECAUTIONS ........................9 EARTHING OF GENERATOR .................... - Page 3 LIMITED WARRANTY ......................25 WARRANTY: (Ex-factory/ Reseller premise) ..............Error! Bookmark not defined. WARRANTY EXCLUSIONS ...................... 25 OWNER’S RESPONSIBILITY UNDER THIS LIMITED WARRANTY ........26 Claim Procedure: ..............................27 CONTACT INFORMATION ....................... 28 APPENDIX A – RISK ASSESSMENT ..................29...
-
Page 4: Introduction
Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact MAKINEX. This machine is designed and built with user safety in mind; however, it can present hazards if improperly operated and serviced. Please follow the operating instructions carefully. -
Page 5: About This Manual
ITED These safety warnings do not eliminate all possible hazards that could occur therefore it is es- sential to use common sense and to strictly follow any instructions to prevent accidents. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 5 of 30... -
Page 6: Safety Information
• NEVER allow the generator to run out of fuel when a load is connected • NEVER use accessories or attachments not recommended by MAKINEX • NEVER alter or tamper with the internal wiring of the generator • NEVER operate in wet conditions MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125... -
Page 7: Risk Of Hot Surfaces
• Use of generator can create puddles and slippery surfaces. WARNING • Kick back from spray gun can cause you to fall. • Keep operating area clear of all persons, pets and obstacles. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 7 of 30... -
Page 8: Generator Positioning For Safe Use
• NEVER use the generator outdoor when it is raining or snowing or in wet or damp conditions. • NEVER use water or any other liquids to clean the unit while it is running. • NEVER use any damaged electrical cord sets with the generator. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 8 of 30... -
Page 9: Fire -Related Safety Precautions
FAILURE TO PROPERLY CONNECT THE EQUIPMENT TO THE EARTHING CONDUCTOR WILL RESULT IN A RISK OF ELECTROCUTION. CONSULT WITH A QUALIFIED ELECTRICIAN INCASE OF DOUBT WITH THE EARTHING OF THE UNIT. WARNING MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 9 of 30... - Page 10 ANY OTHER GROUNDING INSTALLATION MUST BE CARRIED OUT BY A LICENSED ELECTRICIAN AND ALL LOCAL CODES MUST BE FOLLOWED. READ CAREFULLY We strongly recommend that all applicable federal, state, and local regulations relating to grounding/earthing specifications be checked and followed. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 10 of 30...
-
Page 11: Safety Decals
SAFETY DECALS There is a safety and information panel provided on the Parallel box (see images below) of the GEN-32P-AU-V2 to alert the user of potential safety risks/hazards. Please read and adhere to all instructions on the Unit. It is forbidden to remove any safety or instructional stickers or panels from the GEN-32P-AU-V2. -
Page 12: Product Specification
2 X 32A 3 PHASE (MAX 23kW) protection) (3 phase with RCCB B type protection) EQUIPMENT RATED WITH 25A OR MORE US- AGE TO USE B TYPE OUTLET WITH LABEL No. 18 SHOWN IN GENERAL SAFETY DECAL MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 12 of 30... -
Page 13: Overall Machine Dimension
OVERALL MACHINE DIMENSION MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 13 of 30... -
Page 14: Alternatior Specification
ALTERNATIOR SPECIFICATION MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 14 of 30... -
Page 15: Controls And Features
Compact Design for Easy Storage and Transport Lifting Point for Transportation RFL Permanent Magnet Alternator HONDA Electric Key Start Motor Engine Syncing Switch Outlet Sockets protected by RCBO or RCCB 6 Wheel Design for Easy Maneuverability MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 15 of 30... -
Page 16: Instructions For Use
INSTRUCTIONS FOR USE NEVER operate the GEN-32P-AU-V2 without wearing the appropri- ate personal protective equipment (PPE) including appropriate foot- wear. WARNING Assess the surrounding area for hazards. ALWAYS seek appropriate First Aid if Injury, Poisoning or Irritation occurs due to contact with Materials and Substances. -
Page 17: Refueling
NOTE: New machines will be pre-oiled from MAKINEX with: Honda Power Equipment Engine Oil – SAE 10W-30, API SJ REFUELING FAILURE TO USE FUEL AS RECOMMENDED IN THIS MANUAL WILL VOID WARRANTY WARNING • DO NOT use unapproved gasoline such as ethanol-based fuel. -
Page 18: Operating Generator
The power output will be 16kVA. For parallel mode (combining power of both generators): 1. When both engines are running the RED LIGHT on the electrical panel will begin flashing. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 18 of 30... -
Page 19: Connecting Electrical Devices
3. Set the fuel supply valve to OFF if the fuel tank equipped with. NOTE: To stop the generator in an emergency simply turn the ignition key to the off position. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 19 of 30... -
Page 20: Maintenance
CAREFULLY Should you have questions about replacing components on your generator, please contact dealer for assistance. MAKINEX dealers have access to all the special tools, technical information, parts and training required to maintain your MAKINEX product in peak operating condition. -
Page 21: General Troubleshooting
AC OUTPUT Fault in generator Contact authorised Makinex dealer UNIDENTIFIED Contact authorised Makinex dealer for assistance. For other engine problems or further instructions, refer to the provided Honda GX690 user manual. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 21 of 30... -
Page 22: Engine Frequency Adjustment
3. Using a Phillips screwdriver, adjust the governor adjustment screw accordingly to bring the frequency of the engines as close as possible to 52.5Hz. Use the display as a guide, once completed, turn off and repeat for engine 2. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 22 of 30... - Page 23 6. If unit takes too long to sync into parallel mode, repeat step 1 to 5 to ensure the en- gines are within 2Hz of each other. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 23 of 30...
-
Page 24: Storage With Fuel In Tank
1. Check the key ignition is in the OFF position. 2. Check the battery isolator is in the OFF position by turning anti-clockwise to release. MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 24 of 30... -
Page 25: Limited Warranty
MAKINEX dealer or MAKINEX service technician. You are free to have your MAKINEX product serviced by any suitably qualified persons and this will not affect your statutory warranties, however, failure by the owner to have the recommended servicing carried out by an authorised MAKINEX dealer/service technician means that you cannot take advantage of the MAKINEX limited warranty. -
Page 26: Other Exclusions
Accessory parts such as starting batteries, and storage covers. • Failures due to acts of God and other force majeure events beyond the manufac- • turer’s control. Problems cause by parts that are not original MAKINEX parts. • Maintenance service cost • Freight costs •... -
Page 27: Claim Procedure
Claim Procedure: • Contact MAKINEX by phone or email informing us of your machines problem or de- fect. Once the extent of the claim has been assessed, we retain the right to compensate • the consumer for such defect, or repair (parts & labour), or replace the machine under warranty. -
Page 28: Contact Information
CONTACT INFORMATION For sales, service, warranty and parts for all MAKINEX products; please refer below. SALES, SERVICE, SPARE PARTS & WARRANTY SALES TEL 1300 795 953 or +61 2 9460 8071 WEB www.makinex.com.au AUSTRALIA SERVICE, SPARE PARTS & WARRANTY EMAIL service@makinex.com.au... -
Page 29: Appendix A - Risk Assessment
APPENDIX A – RISK ASSESSMENT MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 29 of 30... - Page 30 MAKINEX GEN-32P-AU-V2 Operator’s Manual REV0125 Page 30 of 30...
