Summary of Contents for MAKINEX MKX-10

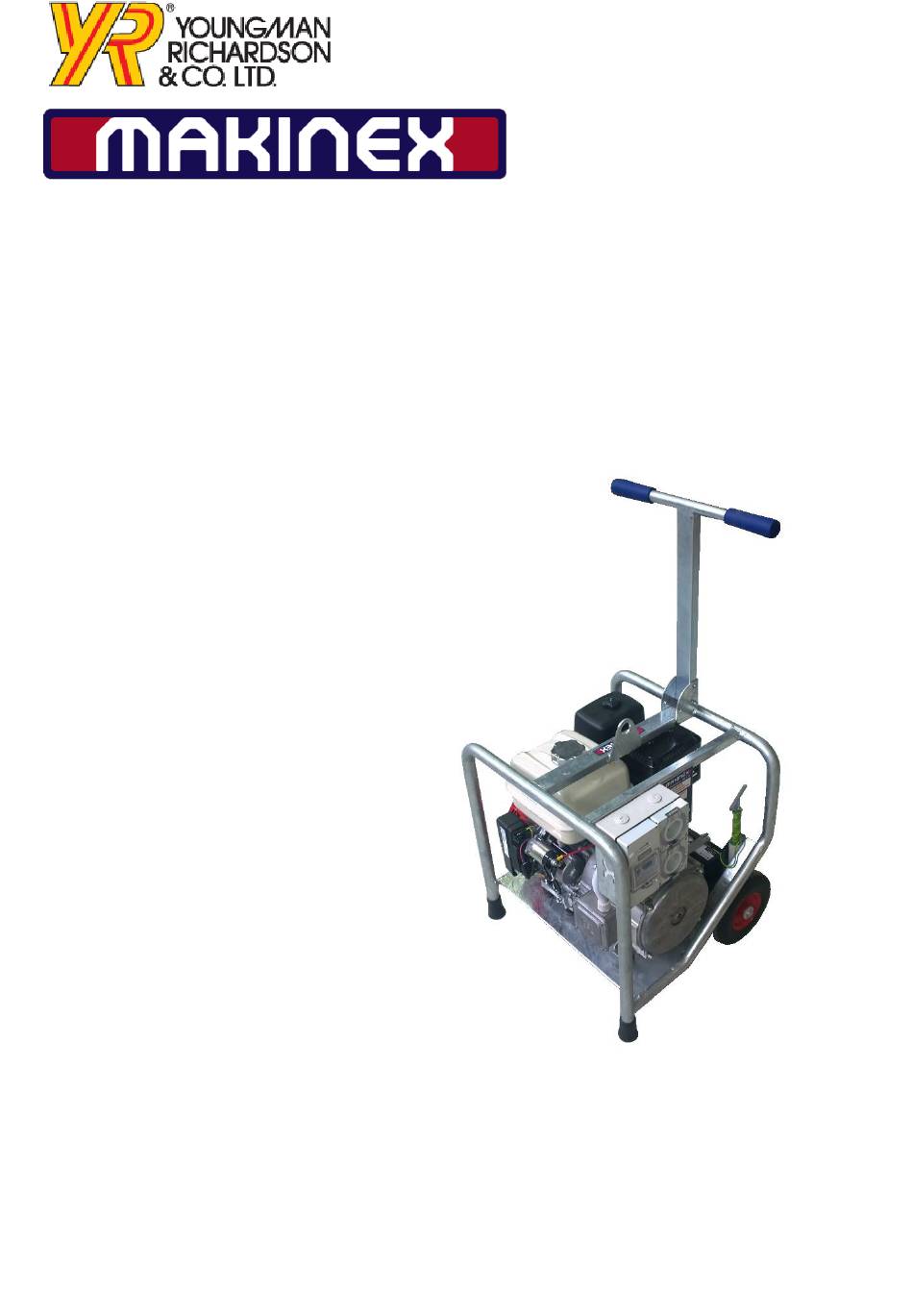

- Page 1 10KVa Generator MKX-10 -2x15A Outlets -2x15A + 1x20A 3P Outlets OPERATOR’S MANUAL...
-
Page 2: Table Of Contents
PRODUCT INFORMATION ............................5 SAFETY INFORMATION ............................5 SAFETY DECALS ..............................8 MKX-10 WITH 2X15A + 1X20A 3P OUTLETS WITH RCBO PROTECTION .............. 8 MKX-10 WITH 2X15A OUTLETS WITH RCBO PROTECTION ................. 8 PRODUCT SPECIFICATIONS ............................. 9 MKX-10 WITH 2X15A + 1X20A OUTLET WITH RCBO PROTECTION ..............9 MKX-10 WITH 2X15A OUTLET WITH RCBO PROTECTION ................. -
Page 3: Disclaimer
Thank you for purchasing a MAKINEX product. This manual provides information and procedures to safely operate and maintain the MKX-10 Generator. For your own safety and protection from injury, carefully read, understand and observe the safety instructions described in this manual. -
Page 4: About This Manual
MAKINEX SUPPORT +61 2 9460 8071 MODEL NO. MKX-10 SERIAL NO. DATE OF PURCHASE PURCHASE LOCATION ABOUT THIS MANUAL This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. -
Page 5: Product Information
Read this manual thoroughly before operating your generator. Failure to follow instructions could result in WARNING serious injury or death MAKINEX MKX 10 Generator designed for professional operators only, instruct operators in care WARNING and use of the machine before use! -
Page 6: Risk Of Explosion Or Fire
RISK OF EXPLOSION OR FIRE Fuel and its vapours are extremely flammable and explosive DANGER Fire or explosion can cause severe burns or death ALWAYS switch the engine OFF when refuelling. ALWAYS refuel away from any source of heat. ... -
Page 7: Risk Of Electrical Shock
RISK OF ELECTRICAL SHOCK Risk of electrocution. WARNING ALWAYS store the generator undercover when not in use and away from damp or wet conditions. NEVER use the generator outdoor when it is raining or snowing or in wet or damp conditions. -
Page 8: Safety Decals
SAFETY DECALS MKX-10 WITH 2X15A + 1X20A 3P OUTLETS WITH RCBO PROTECTION MKX-10 WITH 2X15A OUTLETS WITH RCBO PROTECTION Page 8 of 26... -
Page 9: Product Specifications
PRODUCT SPECIFICATIONS MKX-10 WITH 2X15A + 1X20A OUTLET WITH RCBO PROTECTION GENERATOR: MAX OUTPUT 10kVA FREQUENCY 50Hz VOLTAGE 240V RATED OUTPUT 6400W MAX OUTPUT 8000W 2 X 15A SINGLE PHASE + 1 X 20A 3PHASE SOCKETS WITH SOCKETS RCBO PROTECTION... -
Page 10: Mkx-10 With 2X15A Outlet With Rcbo Protection
MKX-10 WITH 2X15A OUTLET WITH RCBO PROTECTION GENERATOR: MAX OUTPUT 10kVA FREQUENCY 50Hz VOLTAGE 240V RATED OUTPUT 6400W MAX OUTPUT 8000W 2 X 15A SINGLE PHASE SOCKETS WITH RCBO SOCKETS PROTECTION WEIGHT 100 kg NOISE LEVEL (7M) NO LOAD - 72dB... -
Page 11: Overall Machine Dimensions
OVERALL MACHINE DIMENSIONS FEATURES FEATURES Durable Galvanised frame Multi cushion isolators for vibration reduction Compact design for easy storage and transport Lifting point for transportation RFL permanent magnet alternator Page 11 of 26... -
Page 12: Alternator Specifications
ALTERNATOR SPECIFICATIONS RFL Alternators http://www.rflalternators.com Fram e TypeRF2 - 12.5 Enclosure IP23 PM Brushless Alternator Poles Phase 3000 Volts Frequency 50 Hz Am ps 15.5 Pow er 10.0 kW 14.0 M o t o r S t a rt k V A Weight (kg) 46.5 S ho rt C ir A m ps... -
Page 13: Operation
OPERATION BEFORE USE 1. Add Engine Oil (New machines will be pre-oiled from MAKINEX) 1.1 Place generator on a flat, level surface. 1.2 Clean area around oil fill and remove oil fill cap. 1.3 Using oil funnel (optional), slowly pour contents into oil fill opening. - Page 14 WHEN ADDING FUEL TO GENERATOR, OBSERVE THE FOLLOWING STEPS: 2.0 Always ensure that fuel tanks are filled outdoors. 2.1 Turn generator OFF and let it cool for at least two minutes before removing fuel cap. 2.2 Loosen fuel cap slowly to release pressure. 2.2 Slowly add unleaded gasoline to fuel tank.
-
Page 15: Operating Generator
OPERATING GENERATOR STARTING THE ENGINE 1. Remove all connections from the AC sockets. 2. Turn ON the fuel supply valve. 3. If you are starting the generator ‘cold’ set the choke lever to the ON position. If the generator is warm skip this step. 4. -
Page 16: Maintenance
MAINTENANCE GENERAL RECOMMENDATIONS: Regular maintenance will improve the performance and extend the life of the GENERATOR. The generator’s warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the generator as instructed in this manual and in the engine manual, including proper storage. -
Page 17: Storage
STORAGE Long term storage instructions (fuel in tank) Gasoline fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or crucial carburettor parts. To keep fuel fresh, add a fuel stabiliser liquid additive to fuel. The fuel stabiliser is available at most auto parts stores. -
Page 18: Limited Warranty
LIMITED WARRANTY In order to take advantage of the MAKINEX limited warranty, you must have maintenance performed according to the schedule (contained in relevant owner’s manual supplied with this product), by an authorised MAKINEX dealer or MAKINEX service technician. You are... - Page 19 Failures due to acts of God and other force majeure events beyond the manufacturer’s control. Problems cause by parts that are not original MAKINEX parts. Responsibility of the consumer under this Limited Warranty: Strict adherence to the maintenance checks and schedule with proof of scheduled maintenance service required by an authorised agent or qualified mechanic.
- Page 20 All warranties will be carried out by MAKINEX authorised staff or appointed agents at a premises to be determined by the Manufacturer. It is the responsibility (and cost) of MAKINEX or our appointed agent to return the machine to be repaired or replaced under warranty to the consumer- this is valid for domestic territories only (e.g.
-
Page 21: Warranty Contact Information
AUS: 1300 795 953 or +61 2 9460 8071 USA: 407-446-1996 EUROPE: +31 (0)6 24881203 or +31 (0)6 50841849 Or your nearest MAKINEX distributor We have very knowledgeable, experienced staff to assist you with help and advice. Page 21 of 26... -
Page 22: Contact Information
CONTACT INFORMATION AUSTRALIA/ NEW ZEALAND UNITED STATES OF AMERICA EUROPE W makinex.com E sales@makinex.com Page 22 of 26... -
Page 23: Appendices
APPENDICES APPENDIX A- GENERAL EXPLODED PARTS DIAGRAM APPENDIX B- WIRING CIRCUIT DIAGRAM (2x15A) APPENDIX C- WIRING CIRCUIT DIAGRAM (2x15A + 1x20A 3P) APPENDIX D- RISK ASSESSMENT APPENDIX A – GENERAL EXPLODED PARTS DIAGRAM Page 23 of 26... -
Page 24: Appendix B- Wiring Circuit Diagram (2X15A)
APPENDIX B- WIRING CIRCUIT DIAGRAM (2x15A) -
Page 25: Appendix C- Wiring Circuit Diagram (2X15A + 1X20A 3P)
APPENDIX C- WIRING CIRCUIT DIAGRAM (2x15A + 1x20A 3P) Page 25 of 26... -
Page 26: Appendix D- Risk Assessment
APPENDIX D- RISK ASSESSMENT PRODUCT RISK / HAZARD ASSESSMENT TABLE PRODUCT NAME: MKX 10 Generator Assessment Carried Out By: Thomas Barna MANUFACTURER: MAKINEX Document Revision Number: 001 OPERATOR COMPETENCY: PLANT LICENCE NOT REQUIRED Date Created: 05/04/2014 TYPE / NATURE OF RISK or HAZARD...
