Summary of Contents for MAKINEX GEN-23P-MS-240

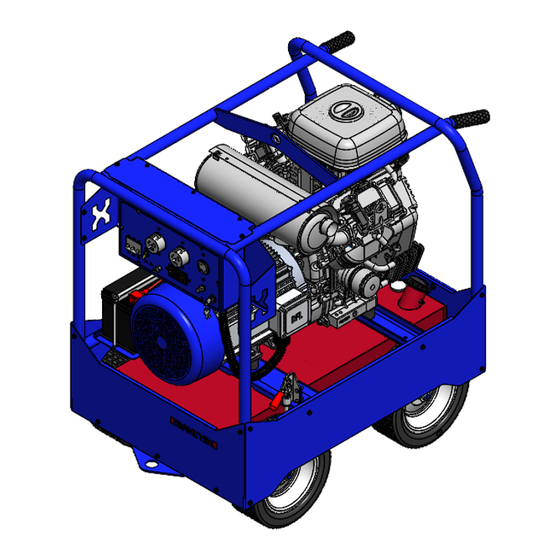

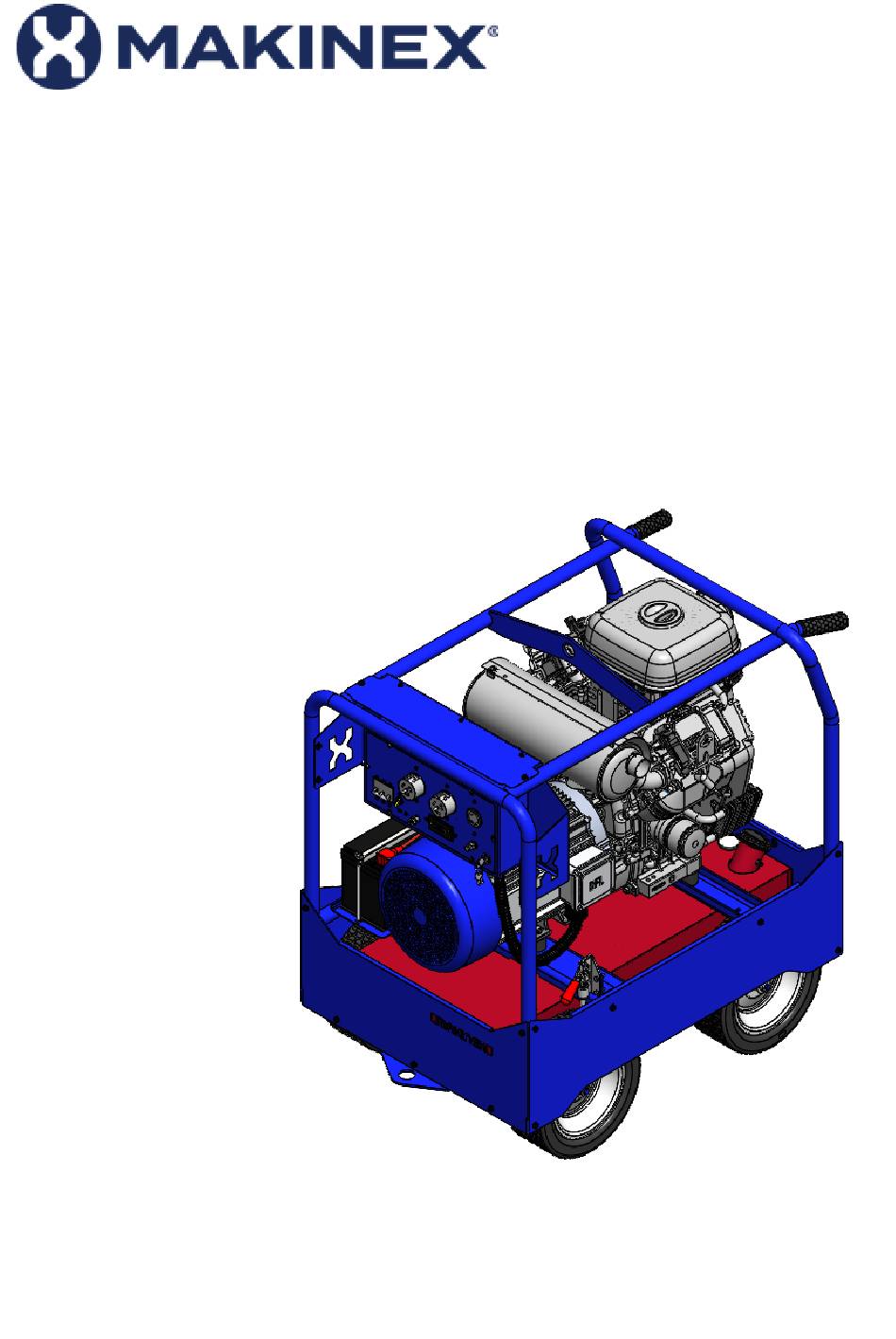

- Page 1 Makinex 23kW Generator GEN-23P-MS-240 OPERATOR’S MANUAL Rev 0524...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..............................1 DISCLAIMER ..............................1 ABOUT THIS MANUAL ............................2 KEY TERMS ..............................2 SAFETY INFORMATION ............................3 GENERAL SAFETY INFORMATION ........................3 GENERATOR POSITIONING FOR SAFE USE ....................4 ELECTRICITY RELATED SAFETY PRECAUTIONS ..................5 FIRE -RELATED SAFETY PRECAUTIONS .................... -
Page 3: Introduction
DISCLAIMER MAKINEX and its affiliates take no responsibility for any damage, injury or death resulting from the incorrect or unsafe use of this product. Use of this product should be undertaken by competent persons only. It is the operator’s responsibility to ensure that the following safety procedures are followed. -
Page 4: About This Manual
ABOUT THIS MANUAL This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 5: Safety Information
• NEVER allow the generator to run out of fuel when a load is connected. • NEVER use accessories or attachments not recommended by MAKINEX. • NEVER alter or tamper with the internal wiring of the generator. • NEVER operate in wet conditions. -
Page 6: Risk Of Hot Surfaces
RISK OF HOT SURFACES • Contact with hot surfaces, such as engine’s exhaust components, could result in serious burns. DANGER • During operation, touch only the control surfaces of generator. • NEVER touch any part of the engine, alternator, or exhaust when the generator is in use or immediately after use, as these get hot and could burn. -
Page 7: Electricity Related Safety Precautions
ELECTRICITY RELATED SAFETY PRECAUTIONS RISK OF ELECTRICAL SHOCK • Risk of electrocution WARNING ELECTRICAL HAZARD • ALWAYS store the generator undercover when not in use and away from damp or wet conditions. • ALWAYS disengage the battery when performing any maintenance. •... -
Page 8: Earthing Of Generator
EARTHING OF GENERATOR Earthing of generators helps protect the user from electric shock or electrocution which may be caused due to malfunction or breakdown. This threat to the user is prevented by creating a path of least resistance for the electrical current to travel to the ground which inherently absorbs the over-current or short circuit. -
Page 9: General Safety Decal
GENERAL SAFETY DECAL GEN – 23P-MS-240 – User Manual Page 7 of 22... -
Page 10: Product Specifications
PRODUCT SPECIFICATIONS GENERATOR: GEN-23P-MS-240 MAX OUTPUT 23kW RATED FREQUENCY 60Hz RATED POWER FACTOR 1 x 50A 250V Receptacle 3 Phase 1 x 50A 125V/250V Receptacle OUTLET SOCKETS 1 x 30A 125/250V Receptacle 1 x 20A 125V GFCI Receptacle DRY WEIGHT 260KG (573 lbs) 1083 (42.6) x 691 (27.2) x 1039 (40.9) mm (inch) -
Page 11: Overall Machine Dimensions (Mm, See Previous Page For Inches)
OVERALL MACHINE DIMENSIONS (mm, see previous page for inches) Dimensions in mm ALTERNATOR SPECIFICATIONS GEN – 23P-MS-240 – User Manual Page 9 of 23... -
Page 12: Instruction For Use
6. Reinstall the oil level dipstick and oil filler cap NOTE: New machines will be pre-oiled from MAKINEX with: Power Equipment Engine Oil – SAE 10W-30, API SJ GEN –... -
Page 13: Refueling
REFUELING FAILURE TO USE FUEL AS RECOMMENDED IN THIS MANUAL WILL VOID WARRANTY WARNING • DO NOT use unapproved gasoline such as ethanol-based fuel. DO NOT mix oil with gasoline. • • DO NOT modify engine to run on alternate fuels. Fuel and fuel vapour are extremely flammable and explosive. -
Page 14: Operating Generator
OPERATING GENERATOR Read and adhere to all safety and operation instructions. WARNING Always have the brake down while it is stationary. CAUTION STARTING THE GENERATOR 1. Remove all connections from the AC sockets. If the fuel tank is equipped with a valve, be sure the fuel valve is in the OPEN or ON position before attempting to start the engine. -
Page 15: Maintenance
Should you have questions about replacing components on your generator, please contact dealer for assistance. MAKINEX dealers have access to all the special tools, technical information, parts and training required to maintain your MAKINEX product in peak operating condition. -
Page 16: General Troubleshooting
AC OUTPUT Fault in generator Contact authorised Makinex dealer UNIDENTIFIED Contact authorised Makinex dealer for assistance. For other engine problems or further instructions, refer to the provided Vanguard 61E377 user manual. GEN – 23P-MS-240 – User Manual Page 14 of 23... -
Page 17: Storage
STORAGE STORAGE WITH FUEL IN TANK Gasoline fuel can become stale when stored over 30 days. Stale fuel causes acid and gum deposits to form in the fuel system or crucial carburettor parts. To keep fuel fresh: 1. Add a fuel stabiliser liquid additive to fuel. 2. -
Page 18: Limited Warranty
(contained in Vanguard 61E377 owner’s manual supplied with this product), by an authorised MAKINEX dealer or MAKINEX service technician. You are free to have your MAKINEX product serviced by any suitably qualified mechanic or electrician (depending on the mechanical or... -
Page 19: Warranty Exclusions
• Accessory parts such as starting batteries, and storage covers. • Failures due to acts of God and other force majeure events beyond the manufacturer’s control. • Problems cause by parts that are not original MAKINEX parts. • Maintenance service cost • Freight costs GEN –... -
Page 20: Owner's Responsibility Under Limited Warranty
Maintenance services are not covered under warranty. Claim Procedure: Contact MAKINEX by phone or email informing us of your machines problem or defect. • •... -
Page 21: Contact Information
CONTACT INFORMATION For sales, service, warranty and parts for all MAKINEX products; please refer below. SALES, SERVICE, SPARE PARTS & WARRANTY SALES TEL 1300 795 953 or +61 2 9460 8071 www.makinex.com.au AUSTRALIA SERVICE, SPARE PARTS & WARRANTY EMAIL service@makinex.com.au... -
Page 22: Appendix A - Risk Assessment
APPENDIX A – RISK ASSESSMENT GEN – 23P-MS-240 – User Manual Page 20 of 23... -
Page 23: Appendix B - Wiring Diagrams
APPENDIX B – WIRING DIAGRAMS GEN – 23P-MS-240 – User Manual Page 21 of 23... -
Page 24: Appendix C - Alternator Diagrams
APPENDIX C – ALTERNATOR DIAGRAMS Generator – 23kW 240V RF2-27.5-3 GEN – 23P-MS-240 – User Manual Page 22 of 23... - Page 25 GEN – 23P-MS-240 – User Manual Page 23 of 23...
