Power Tech Generators PTS-25 Operator's Manual page 32

POWER TECHNOLOGY SOUTHEAST, INC.
634 STATE ROAD 44
LEESBURG, FL 34748-8103
(352) 365-2777 FAX (352) 787-5545

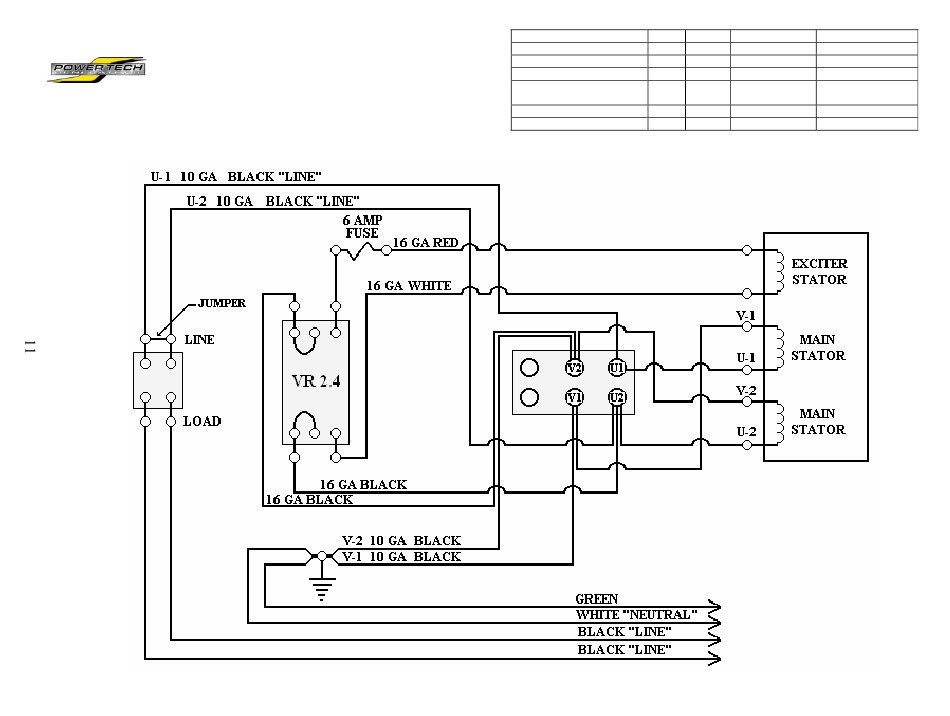

AC ELECTRICAL CIRCUIT FOR "K" SERIES GENERATORS 120 VOLTS LINE TO NEUTRAL. VR2.4
RESISTANCE CHART
KW 16
MAIN STATOR 0.20
MAIN ROTOR 3.1
EXCITER STATOR 145
EXCITER ROTOR / DIODE
1.462 1.334
PLATE ASSEMBLY
AUX. WINDING 0.20 Jumper
SENSING WINDING 0.20
NOTE: THESE READINGS WILL VARY DEPENDING ON AMBIENT TEMPERATURE
21 MARKS COLOR
0.20 U1-V1 or U2-V2 10 GA Black / Black
3.3 N/A N/A
145 F1-F2 Red / White
N/A N/A
AW Black / Black
0.20 N/A 16 GA Black / Black
