Summary of Contents for Pressol 12693

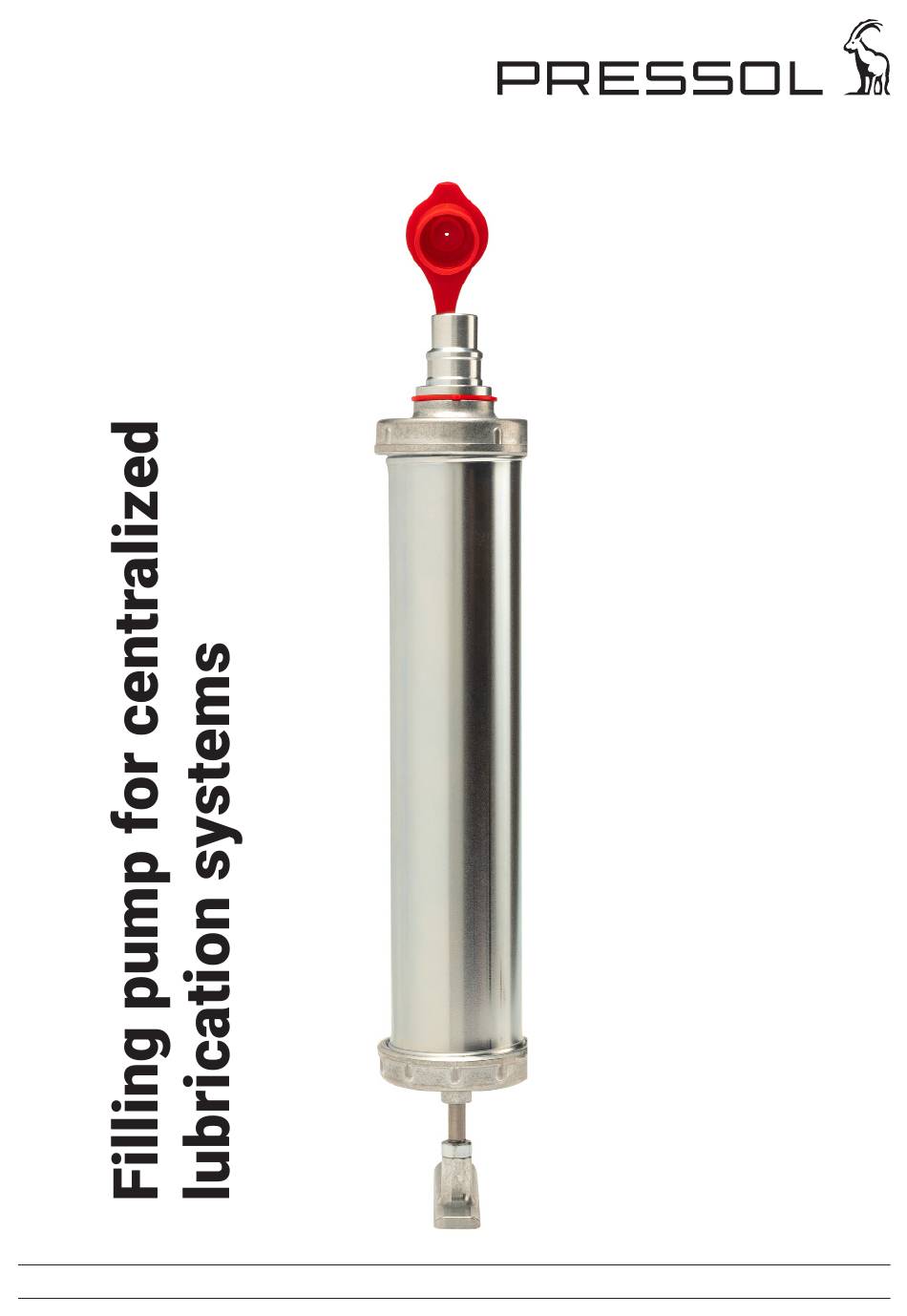

- Page 1 Operating instructions and safety notes 93990 930 A401 GB...
-
Page 2: Table Of Contents
PRESSOL Schmiergeräte GmbH This documentation is exclusively intended for the operating company and their staff. Without our written consent, the content of this documentation (textes, figures, drawings, charts, diagrams etc.), must not be duplicated or distributed, neither in full or in part, utilized for the purpose of competition or passed on/made availabe to third parties. -
Page 3: Introduction
Please carefully read these operating instructions and observe in particular all safety notes! Our staff will be pleased to provide support if you have any questions about the product. Yours sincerely, Pressol Schmiergeräte GmbH 1.2. Obligations of the personnel Before they start work, all persons who are entrusted with work with the filling pump, are obliged: –... -
Page 4: Hazard Sysmbols
1.3.2. Hazard symbols Symbol Meaning General hazard symbol. The warning note marked in this way contains supple- mentary information on the type of hazard. This symbol warns of an explosive atmosphere. 1.3.3. General symbolS Symbol Meaning ■ A small black square indicates the work you have to perform. –... -
Page 5: Technical Data
Technical data Filling pump for centralized lubrication systems Item number 12693 4103810126932 Discount group Technical data Capacity (cm³) Refilling options 400 g grease cartridge, DIN 1284, or bulk grease using a spatula Piston actuation with T-grip Connection diameter (mm) Wall thickness of grease gun tube (mm) 1 Dimensions ØxL (mm) -
Page 6: Operation
Take off the lid of the grease cartridge according to DIN 1284. Insert the cartridge. Screw the lid back on. The filling pump is ready for use. Operation Connect the filling pump to the appropriate coupler of the centralized lubrication system. Now, the plunger rod can be pushed to fill grease into the centralized lubrication system. -
Page 7: Care/Maintenance
The filling pump was developed and manufactured under compliance with the highest quality standards. If in spite of all quality measures a problem occurs, please get in touch with our service contact partners: PRESSOL Schmiergeräte GmbH Telefon +49 9462 17-246 +49 9462 1063 service@pressol.com... -
Page 8: Spare Parts/Accesories
10. Spare parts/ Accesories Pos. Item number Description 92302 Lid with thread M26x1,5 92304 Dust protection cap 00019 Hexagon nut M8 00018 Hexagon nut DIN 934 00432 Washer 24x8,4x1,5 91124 Washer cupped 92305 Plunger rod 85623 T-grip 00402 Iron lid 92303 Filling adapter 00442... - Page 9 Accesories Connecting couplers for centralized lubrication systems Filling connection with cap M 20x1,5 Item number 12693 100 Filling connection with cap M 22x1,5 Item number 12693 101 Operating instructions - Filling pump for centralized lubrication systems...
- Page 10 PRESSOL Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein | Germany Telefon +49 9462 17-0 +49 9462 17-208 info@pressol.com www.pressol.com Operating instructions and safety notes...
