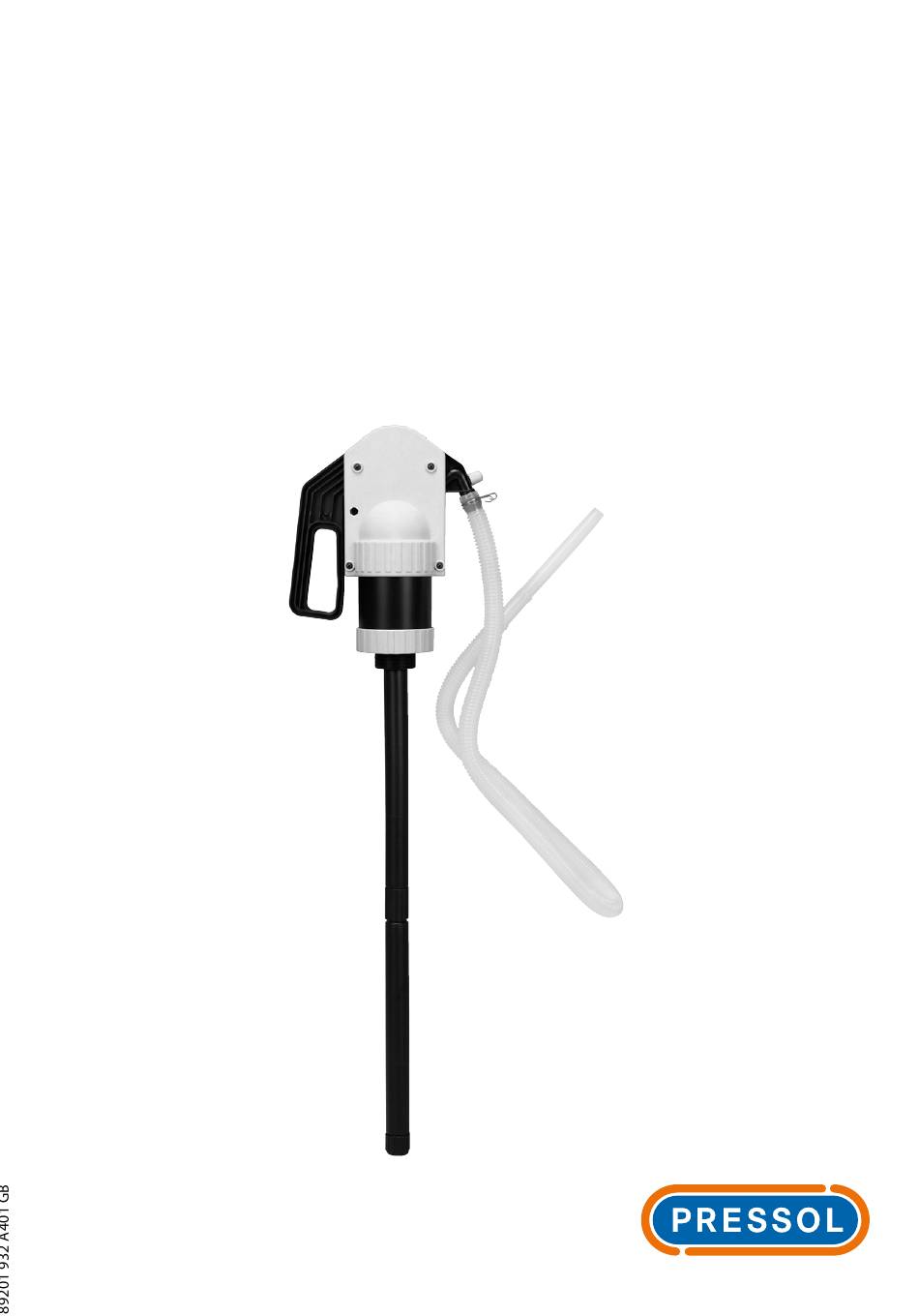

- Page 1 OPERATING INSTRUCTIONS AND SAFETY NOTES Barrel pump for AdBlue®...
- Page 2 Operating Instructions - Barrel pump for AdBlue® Pressol Schmiergeräte GmbH This documentation is exclusively intended for the operating company and their staff. Without our written consent, the content of this documentation (textes, figures, drawings, charts, diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose of competition or passed on/made availabe to third parties.
- Page 3 ■ ■ Our staff will be pleased to provide support if you have any questions about the product. Yours sincerely, Pressol Schmiergeräte GmbH Obligations of the personnel Before they start to work, all persons who are entrusted with work with the barrel pump for AdBlue®...
- Page 4 Container, for 60 / 200 / 220 l Discharge 13 004/13 004 960: detachable transparent discharge hose, 1,5 m 13 004 950: Mechanical control nozzle for AdBlue® with swivel (ZVMUD) (23 161 878), Discharge hose, 6 m (25 191) Length, three-part suction pipe 1000 mm...
- Page 5 Operating Instructions - Barrel pump for AdBlue® Barrel screw coupling 13 004/13 004 950: G 2“ m 13 004 960: G 2‘‘ f and M 56 x 4 m Materials of parts in contact with liquid Pump body Seals Suction pipe Assembly Check and prepare all parts before assembly.
- Page 6 Only qualified personnel is authorized to disassemble and dispose of the AdBlue® barrel pump. Repair/Service The barrel pump was developed and produced according to the highest quality standards. Should a problem develop, despite all quality controls, please contact our customer service: PRESSOL Schmiergeräte GmbH Tel.: +49 9462 17-216 Fax: +49 9462 1063 service@pressol.com Exploded view of the barrel pump for AdBlue®...
- Page 7 Disc Clamp Discharge hose Fig. 9.-1: Overview of components for fig. 9.-1 Accessories 13 004 950 Mechanical control nozzle for AdBlue® with swivel (ZVMUD) (23 161 878) Discharge hose, 6 m (25 191) Accessories 13 004 960 Barrel screw coupling, for plastic container, connecting thread G 2“...
- Page 8 Pressol Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein | Germany Tel. +49 9462 17-0 Fax +49 9462 17-208 info@pressol.com www.pressol.com...
