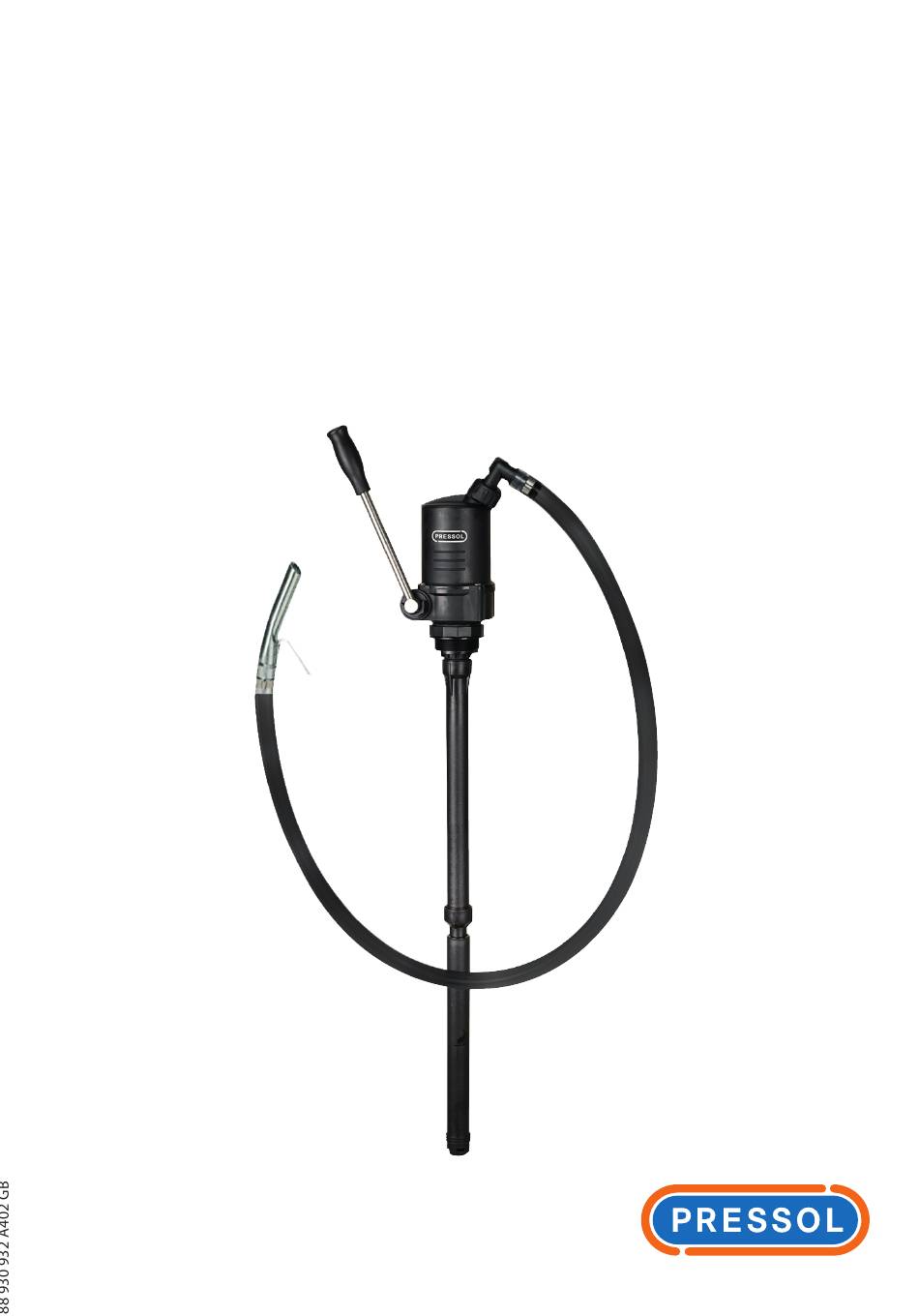

- Page 1 OPERATING INSTRUCTIONS AND SAFETY NOTES Barrel pump G2“ for diesel and heating oil...
- Page 2 Operating Instructions - Barrel pump for diesel and heating oil Pressol Schmiergeräte GmbH This documentation is exclusively intended for the operating company and their staff. Without our written consent, the content of this documentation (textes, figures, drawings, charts, diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose of competition or passed on/made availabe to third parties.
- Page 3 ■ ■ Our staff will be pleased to provide support if you have any questions about the product. Yours sincerely, Pressol Schmiergeräte GmbH 1.2. Obligations of the personnel Before they start to work, all persons who are entrusted to work with the barrel pump are obliged: –...
- Page 4 Operating Instructions - Barrel pump for diesel and heating oil 1.3.3. General symbols Symbol Meaning A small black square indicates the work you have to perform. ■ – The dash denotes lists. Intended conditions of use The barrel pump may only be used to discharge oils, upt to SAE 50, diesel, petroleum, kerosene, ■...
- Page 5 The barrel pump for diesel and heating oil was developed and produced according to the highest quality standards. Should a problem develop, despite all quality controls, please contact our customer service: Pressol Schmiergeräte GmbH Tel.: +49 9462 17-246 Fax: +49 9462 1063...
- Page 6 Operating Instructions - Barrel pump for diesel and heating oil 9. Exploded view of the barrel pump with discharge spout Fig. 9.-1: Exploded view of the barrel pump for diesel and heating oil with discharge spout...
- Page 7 Connecting rod 87 347 Lockingring 82 862 Lever 87 348 Hose for diesel-DN 19 80 371 Immersion tube 81 618 Piston pin 87 345 Angle 90°-straight-black 82 861 002 PRESSOL-Logo 90 956 Tab. 9.-1: Overview of components for fig. 9.-1...
