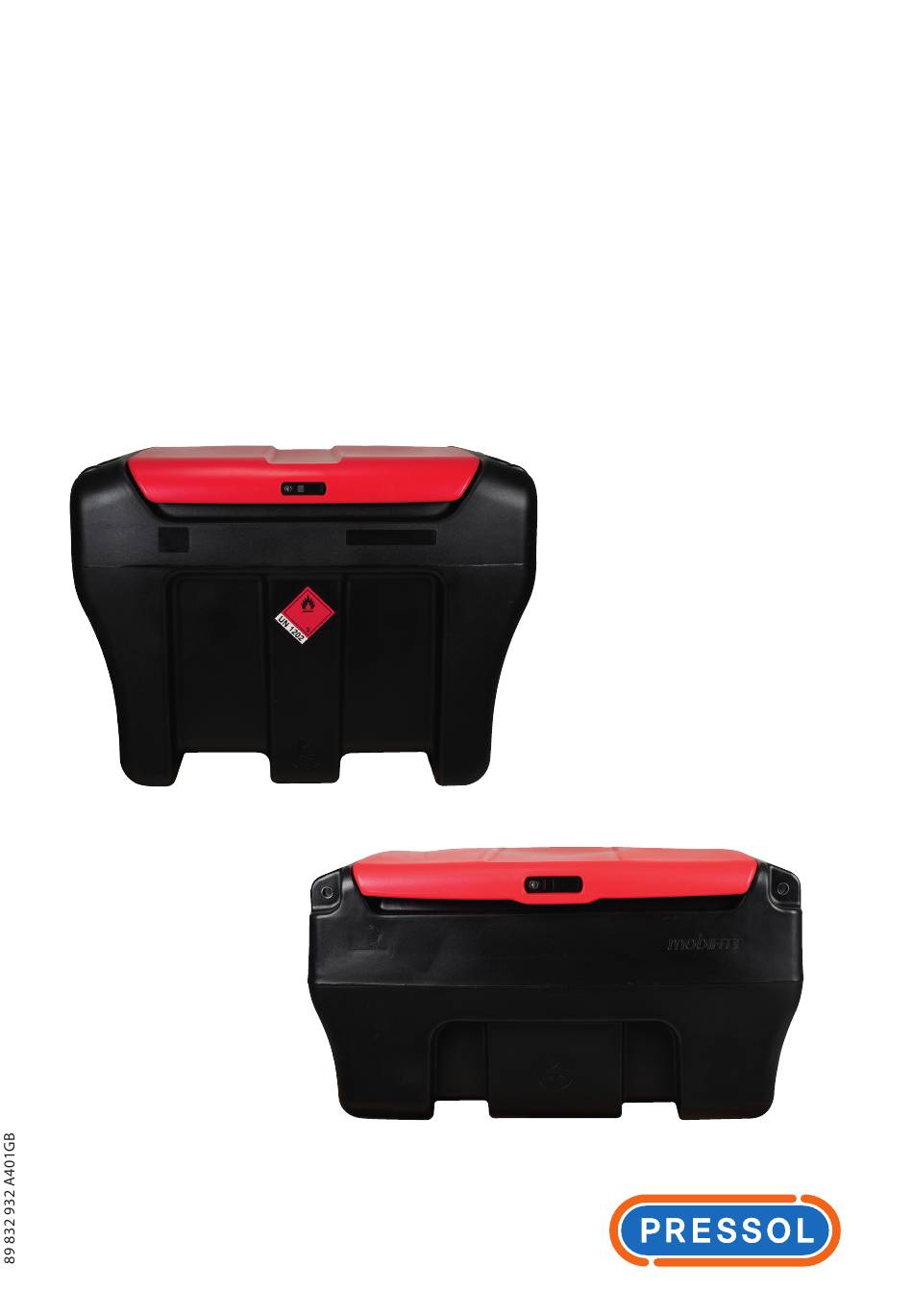

- Page 1 OPERATING INSTRUCTIONS AND SAFETY NOTES mobiMASTER and mobiFITT 230 V • 12 V DC • 24 V DC...
-
Page 2: Table Of Contents
Operating Instructions - mobiMASTER and mobiFITT Pressol Schmiergeräte GmbH This documentation is exclusively intended for the operating company and their staff. Without our written consent, the content of this documentation (textes, figures, drawings, charts, diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose of competition or passed on/made availabe to third parties. -
Page 3: Introduction
Yours sincerely, Pressol Schmiergeräte GmbH Obligations of the personnel Before they start to work, all persons who are entrusted with work with the mobiMaster and the mobiFITT, are obliged: – to follow all applicable regulations on occupational safety and accident prevention. -
Page 4: Hazard Symbols
Operating Instructions - mobiMASTER and mobiFITT Depending on the danger level, different signal words are used: Signal word Danger level Consequences of non- compliance DANGER Imminent threat of Death or serious bodily injury danger WARNING Possible threat of Death or serious bodily injury... -
Page 5: Safety Notes
The mobiMASTER and the mobiFITT are mobile tanks and have been exclusively designed for the delivery of and the refuelling with heating oil or diesel fuel. The mobiMASTER with an internal volume of 450 l is available with a diesel pump with a 12 V DC or a 24 V DC motor. -
Page 6: Transport And Storage
Operating Instructions - mobiMASTER and mobiFITT The mobiMASTER and the mobiFITT can also be used as a stationary tank for storing and dispensing diesel. In this case, it is the owner‘s responsibility that national directives relating to installation and use of this product are complied with. -
Page 7: Equipment Of Transport Vehicles
Hand lamp ■ ■ ATTENTION Escape of fluid The mobiMASTER or mobiFITT tanks must not be damaged during transport ■ ■ or storage. The tank‘s equipment is to be maintained in a usable condition at all times! Training of the driver The driver of the transport vehicle must be trained in the handling of dangerous goods as per the ■... -
Page 8: Technical Data
Operating Instructions - mobiMASTER and mobiFITT Technical data Tank volume mobiMASTER (l) 450 l 450 l 450 l 450 l 450 l Motor variant pump 230 V 12 V DC 12 V DC 24 V DC 24 V DC 60 l/min... -
Page 9: Equipment
With or without built-in digital gear meter depending on the model ☞■☞■ Value variable depending on the built-in pump Equipment The mobiMASTER and the mobiFITT are equipped with following components: – Single-walled tank – Universal fixation loops for shackles on site – Lockable protection cover –... - Page 10 Operating Instructions - mobiMASTER and mobiFITT Tank equipment: Separating wall Suction hose Foot valve Lockable protection cover Airing and venting valve Discharge hose Level indicator Built-in meter, digital Filler neck Diesel pump Automatic nozzle valve Fig. 8-1: Various views of the tank; equipment depends on the model...
-
Page 11: Operation
The mobile fuel tank was designed and constructed in such a way that it is as robust, safe, and low maintenance as possible. All mobiMASTER and mobiFITT tanks are completely checked for proper function and tightness prior to shipment. After delivery, it should be confirmed that the tank‘s equipment is complete, and that there is no transport damage. -
Page 12: Installed Components
– Defects which arise from repairs or constructional modifications carried out by an unauthorised service provider – Change of the purpose of the product Pressol Schmiergeräte GmbH is not liable for damage arising from incorrect use nor contraventions to the operating instructions or regulations. 12. Maintenance Regular maintenance helps to reduce the risk of product failure and premature component failure. -
Page 13: Tests
Fax +49 9462 1063 service@pressol.com 15. Disposal The operating company is responsible for the proper disposal of the mobiMASTER and mobiFITT. Hereby, the industry-specific and local regulations must be observed when disposing the different materials. Only qualified personnel is authorized to disassemble and dispose of the mobiMASTER and mobiFITT. -
Page 14: Control And Operating Reports
Operating Instructions - mobiMASTER and mobiFITT 16. Control and operating reports Dates Approval Manufacturer Owner Owner holder Company / PRESSOL SWIMER First name Tschechien s.r.o. and surname Address 326 00 Plzeň 87-100 Toruń post code, city/ Czech Republic Polska country Street and house Nepomucká... -
Page 15: Damage And Repair Report
Operating Instructions - mobiMASTER and mobiFITT 17. Damage and repair report Date, signature Errors and actions taken Table 3: Damage and repair report... -
Page 16: Exploded View Mobimaster
Operating Instructions - mobiMASTER and mobiFITT 18. Exploded view mobiMASTER Fig. 18-1: Exploded view mobiMASTER... - Page 17 04 402 mobiMASTER-450 l tank 45 314 155 O-ring-NBR 70-29x2,5 89 111 Positioning fitting-Al NW 25-G 1“ male-G 1“ fem 23 218 Tab. 18-1: Overview of components for fig. 18 -1 ** or alternative assembly option to the presented mobiMASTER model...
- Page 18 Operating Instructions - mobiMASTER and mobiFITT 19. Exploded view mobiFITT Fig. 19-1: Exploded view mobiFITT...
- Page 19 Operating Instructions - mobiMASTER and mobiFITT Pos. Quantity Designation Item no. Nut M6 00 044 Hexagon head screw M 6x16 89 481 Flat washer DIN 9021 87 126 NBR-vibration damper 83 019 MOBIFIxx diesel pump 35 l/min - for mobiFITT 23 404 964 Adapter G 1"...
-
Page 20: Ec Declaration Of Conformity Mobimaster
Operating Instructions - mobiMASTER and mobiFITT 20. EC Declaration of Conformity mobiMASTER Manufacturer: Pressol Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein / Germany Declares under his sole responsibility that the machine: Model 450 l 450 l 450 l 450 l 450 l... -
Page 21: Ec Declaration Of Conformity Mobifitt
Operating Instructions - mobiMASTER and mobiFITT 21. EC Declaration of Conformity mobiFITT Manufacturer: Pressol Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein / Germany Declares under his sole responsibility that the machine: Modell 125 l 200 l 300 l mobiFITT 12 V DC / 24 V DC... - Page 22 Operating Instructions - mobiMASTER and mobiFITT...
- Page 23 Operating Instructions - mobiMASTER and mobiFITT...
- Page 24 Pressol Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein | Germany Tel. +49 9462 17-0 Fax +49 9462 17-208 info@pressol.com www.pressol.com...
