USER MANUAL
ENGLISH
V1.0

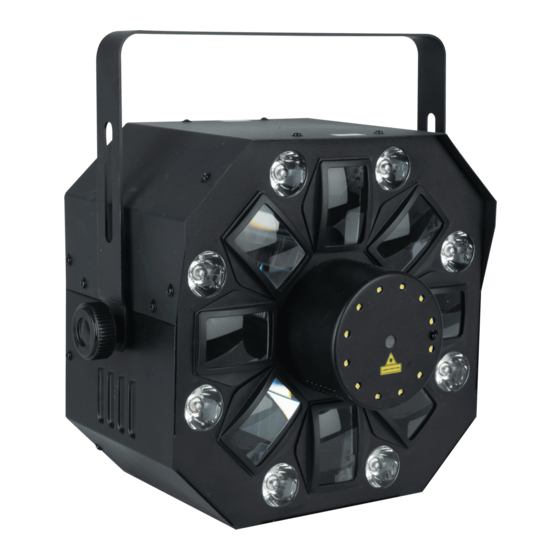

Firestorm 4-in-1 Light Effect
Product code: 43173
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Firestorm 4-in-1 Light Effect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SHOWTEC Firestorm 4-in-1 Light Effect

Summary of Contents for SHOWTEC Firestorm 4-in-1 Light Effect

  • Page 1 USER MANUAL ENGLISH V1.0 Firestorm 4-in-1 Light Effect Product code: 43173...
  • Page 2 Firestorm 4-in-1 Light Effect Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Firestorm 4-in-1 Light Effect Table of contents 1. Introduction ............................
  • Page 4 Firestorm 4-in-1 Light Effect 6.8.3. Remote Control Operation ....................

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Showtec Firestorm 4-in-1 Light Effect • • Schuko to IEC power cable (1,5 m) • •...

  • Page 6: Text Conventions

    Firestorm 4-in-1 Light Effect 1.5. Text Conventions Throughout the user manual the following text conventions are used: • • Buttons: All buttons are in bold lettering, for example "Press the UP/DOWN buttons" • • References: References to parts of the device are in bold lettering, for example: "turn the adjustment handle (05)".

  • Page 7: Laser Hazard Labels

    Firestorm 4-in-1 Light Effect 1.7. Laser Hazard Labels The device is a class 3R laser device and is provided with the following labels and hazard warnings. The position of the labels is indicated on the drawings. WARNING Laser radiation – Rayonnement laser...

  • Page 8: Safety

    Firestorm 4-in-1 Light Effect Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1.
  • Page 9 Firestorm 4-in-1 Light Effect CAUTION Laser radiation Avoid direct eye exposure. This device is a class 3R laser device according to the classification in NEN-EN-IEC 60825-1:2014. It emits visible radiation in the wavelength range 400–700 nm. Accidental exposure to the direct or reflected laser beam presents a low risk.

  • Page 10: Requirements For The User

    Firestorm 4-in-1 Light Effect Attention Before each use, examine the device visually for any defects. Make sure that: • • All screws used for installing the device or parts of the device are tightly fastened and are not corroded. •...

  • Page 11: Laser Safety

    Firestorm 4-in-1 Light Effect 2.3. Laser Safety CAUTION Use of controls or adjustments, or performance of procedures other than those specified in this user manual, may result in hazardous radiation exposure. Check all applicable national and international regulations concerning laser safety before operating this device.

  • Page 12: Description Of The Device

    Description of the Device The Showtec Firestorm 4-in-1 Light Effect is a device that features 8 RGBUV wash LEDs, 8 RGBAW rotating derby LEDs, 12 SMD strobe LEDs and a 130 mW RG laser module. All 4 effects can be selected separately in auto or music-controlled programs.

  • Page 13: Product Specifications

    Firestorm 4-in-1 Light Effect 3.3. Product Specifications Model: Firestorm 4-in-1 Light Effect Source: Light source type LED  Light source quantity (spot) 8  Light source power (spot) 1,5 W LED strobe quantity 12  LED strobe power 1 W Life expectancy 50000 h Laser source DPSS ...

  • Page 14: Dimensions

    Firestorm 4-in-1 Light Effect Product Compliance: NOHD 62 m MPE (for exposure duration of 0,25 s) 25 W·m⁻² 3.4. Dimensions Figure 4 3.5. Optional Accessories The remote interlock is not supplied with the device. Contact your Highlite International dealer for more information.

  • Page 15: Installation

    Firestorm 4-in-1 Light Effect Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. • • Make sure that the device is rigidly mounted to prevent movement due to vibration or jarring.

  • Page 16: Personal Protective Equipment

    Firestorm 4-in-1 Light Effect Attention Make sure that there is enough space for ventilation around the device. • • Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal components may overheat. This can result in product damage.

  • Page 17: Angle Adjustment

    Firestorm 4-in-1 Light Effect 4.5. Angle Adjustment You can adjust the angle of the device with the adjustment screw (03). 01) Turn the adjustment screw (03) counterclockwise to loosen it. 02) Tilt the device to the desired angle. 03) Turn the adjustment screw (03) clockwise to tighten it. Make sure that the device cannot move freely after the adjustment screw (03) is tightened.

  • Page 18: Power Linking Of Multiple Devices

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 12 devices Firestorm 4-in-1 Light Effect • • at 200–240 V: 24 devices Firestorm 4-in-1 Light Effect...

  • Page 19: Setup

    Stand-alone Setup When the Firestorm 4-in-1 Light Effect is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel and the manual controls or via an optional remote control.

  • Page 20: Dmx Cables

    Figure 9 5.3.3. Master/Slave Setup The Firestorm 4-in-1 Light Effect supports master/slave control mode. To connect multiple devices in a master/ slave setup, follow the steps below: 01) Connect the DMX OUT connector of the 1 device to the DMX IN connector of the 2 device with a 3-pin DMX cable.

  • Page 21: Dmx Linking

    In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Firestorm 4-in-1 Light Effect has 2 personalities: 2 Ch (2 channels), 18 Ch (18 channels). If you want to connect multiple devices on one data link and use them in 18-channel mode, for example,...

  • Page 22: Operation

    Firestorm 4-in-1 Light Effect Operation 6.1. Safety Instructions for Operation CAUTION Laser radiation Avoid direct eye exposure. This device is a class 3R laser device according to the classification in NEN-EN-IEC 60825-1:2014. It emits visible radiation in the wavelength range 400–700 nm. Accidental exposure to the direct or reflected laser beam presents a low risk.

  • Page 23: Control Modes

    Firestorm 4-in-1 Light Effect 6.3. Control Modes The Firestorm 4-in-1 Light Effect can be controlled as a stand-alone device, in master/slave mode and with a DMX controller. The Firestorm 4-in-1 Light Effect supports the following control modes: • • Stand-alone: Auto mode, sound-controlled mode, IR remote control •...

  • Page 24: Control Panel

    Firestorm 4-in-1 Light Effect 6.4. Control Panel Figure 12 A) DMX LED indicator (red) B) 7-segment display C) AUTO LED indicator (blue) D) Built-in microphone E) Audio sensitivity control F) SLAVE LED indicator (yellow) G) ENTER button H) DOWN button...

  • Page 25: Menu Overview

    Firestorm 4-in-1 Light Effect 6.6. Menu Overview Level 1 Level 2 Level 3 Aut (see 6.7.1. Auto Mode on page 24) AP 1–AP15 S 1–S 99 Sou (see 6.7.2. Sound Mode on page 25) SP 1–SP15 2 Ch d001–d511 DMX (see 6.7.3.

  • Page 26: Sound Mode

    Firestorm 4-in-1 Light Effect 6.7.2. Sound Mode In this menu you can activate sound-controlled mode and select the sound-controlled programs. Press the UP/DOWN buttons to scroll through the 15 available options. Note: You can adjust the music-sensitivity of the built-in microphone (D) with the audio sensitivity control (E).

  • Page 27: Display Backlight

    Firestorm 4-in-1 Light Effect 6.7.5.1. Display Backlight In this submenu you can adjust the behavior of the display. 01) Press the UP/DOWN buttons to select one of the 2 options: • • The display does not return to the start screen and the backlight remains on •...

  • Page 28: Remote Control

    Firestorm 4-in-1 Light Effect 6.8. Remote Control The device can be operated with an IR remote control. The remote control is included in the delivery. DANGER Do not ingest battery, chemical burn hazard. The remote control contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

  • Page 29: Functions Of The Remote Control Buttons

    Firestorm 4-in-1 Light Effect 6.8.2. Functions of the Remote Control Buttons The buttons of the remote control have the following functions: Button Description Function Auto Auto mode 1–15 Music Sound-controlled mode 1–15 On/Off Turns all output on/off Pause No function...

  • Page 30: Remote Control Operation

    Firestorm 4-in-1 Light Effect 6.8.3. Remote Control Operation When you control the device with the IR remote control, the following operation modes are possible: • • IR Auto mode • • IR Sound-controlled mode • • IR Wash LEDs, derby LEDs, laser, SMD strobe LEDs 6.8.3.1.

  • Page 31: Dmx Channels

    Firestorm 4-in-1 Light Effect 6.9. DMX Channels Basic Advanced Function Value Setting 2 CH 18 CH 000–015 Black out 016–030 Wash LEDs only 031-045 Lasers only 046–060 Derby LEDs only 061–075 SMD strobe LEDs only 076–090 Wash LEDs + lasers + derby LEDs 091–105 Wash LEDs + lasers + SMD strobe LEDs...
  • Page 32 Firestorm 4-in-1 Light Effect Basic Advanced Function Value Setting 2 CH 18 CH 103–153 Green 154–204 Blue 205–255 UV 001–051 Blackout 052–102 Red Wash LEDs Group 5 103–153 Green 154–204 Blue 205–255 UV 001–051 Blackout 052–102 Red Wash LEDs Group 6 103–153 Green...
  • Page 33 Firestorm 4-in-1 Light Effect Basic Advanced Function Value Setting 2 CH 18 CH 125–129 Amber + Green + White 130–134 Amber + White + Blue 135–139 Red + Green + Blue + Amber 140–144 Red + Green + Blue + White 145–149 Green + Blue + Amber + White...

  • Page 34: Troubleshooting

    Firestorm 4-in-1 Light Effect Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.
  • Page 35 Firestorm 4-in-1 Light Effect Problem Probable cause(s) Solution • • Insert the key switch and turn it in ON The key switch is not in ON position (see 6.2. Starting the Device position The device does not page 21) produce a laser projection The remote interlock •...

  • Page 36: Maintenance

    Firestorm 4-in-1 Light Effect Maintenance 8.1. Safety Instructions for Maintenance CAUTION Laser radiation Avoid direct eye exposure.   DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects.

  • Page 37: Corrective Maintenance

    Firestorm 4-in-1 Light Effect • • Do not use alcohol or solvents. Make sure that the connections are fully dry before connecting the device to the power supply and to other devices. 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device.

  • Page 38: Deinstallation, Transportation And Storage

    Firestorm 4-in-1 Light Effect Deinstallation, Transportation and Storage 9.1. Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. • • Let the device cool down before dismounting. • • Disconnect power supply before deinstallation. •...
  • Page 39 Firestorm 4-in-1 Light Effect Product code: 43173...
  • Page 40 Showtec is a brand of Highlite International B.V.
