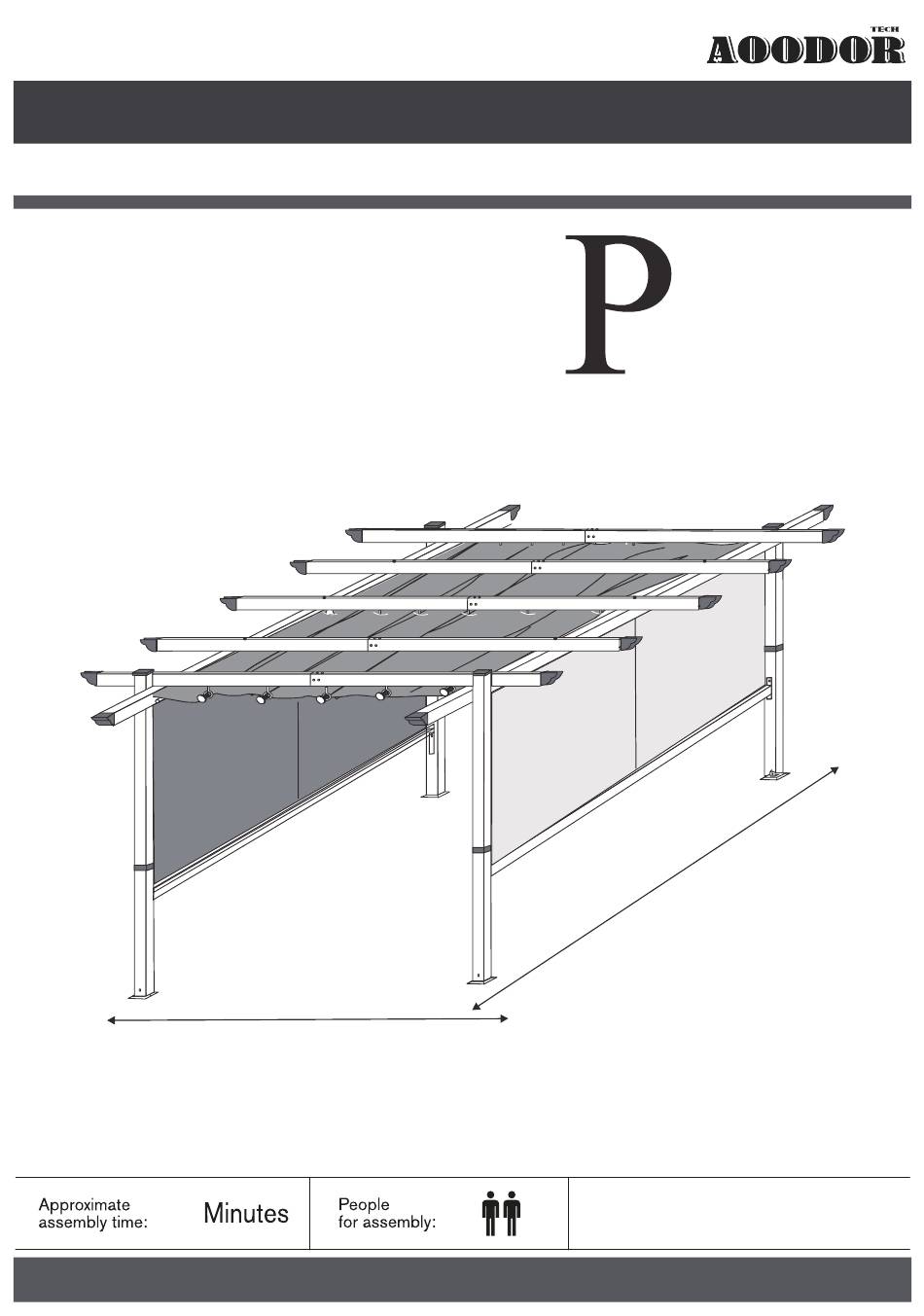

- Page 1 Assembly&Instruction Manual SKU:A043 12x12ft ergola Installation Guide 12ft 12ft VERSION:20240226 Save this manual for future reference...
- Page 2 INTRODUCTION Thank you for purchasing Aoodor s Patio pergola ! We hope you will find joy in our product for many years to come. To ensure your personal safety during installation and to get the most out of your investment, please read this entire manual before beginning the installation process.
- Page 3 8A070-A043-001 8A070-A043-021 8A070-A043-002 8A070-A043-022 8A070-A043-003 8A070-A043-023 8A070-A043-004 8A070-A043-024 8A070-A043-005 8A070-A043-025 8A070-A043-006 8A070-A043-026 8A070-A043-007 8A070-A043-027 8A070-A043-008 8A070-A043-028 8A070-A043-009 8A070-A043-029 8A070-A043-010 8A070-A043-030 8A070-A043-011 8A070-A043-031 8A070-A043-012 8A070-A043-032 8A070-A043-013 8A070-A043-033 8A070-A043-014 8A070-A043-036 8A070-A043-015 8A070-A043-037 8A070-A043-016 8A070-A043-038 8A070-A043-017 8A070-A043-039 8A070-A043-018 8A070-A043-040 8A070-A043-019 8A070-A043-041 8A070-A043-020 8A070-A043-042...
- Page 4 Assembly Step1:Beam assembly. 1.Connect (C1) with (C2) together using screw(K) tightly to became Side Beam(C) 2.Connect (D) to (D) with connector(AE) together using screw(K) tightly to became Middle Cross Beam(D) 3.Connect (E1) with (E2) together using screw(K) tightly to became Side Beam(E) 4.Connect (S1) with (S2) together using screw(R) tightly to became Cross Beam(S) 5.Connect (F1) with (F2) together using screw(K) tightly to became cross Beam(F)
- Page 5 Assembly Step2:Middle cross beam assembly Insert the Hook pulley as the figure shown above.(N)x1,(L)x4,(I)x1. And cover the beam cap(V). Step3:Middle cross beam assembly Insert the Hook pulley (M)x4 and (I1)x1 and cover the beam cap. Note:Hook pulley (I1) must be placed in part (F1) Step4:Middle cross beam assembly Insert the Hook pulley (M)x4 and (I1)x1 and cover the beam cap.
- Page 6 Assembly Step5:Post and Side Beam assembly 1.Connect Post (B2) to beam ( C1 (E1)using bolt(P) ） 2.Connect Post (A2) and to beam ( C2 (E2)using bolt(P) ） 3.Cover the beam cap(V)(W).
- Page 7 Assembly Step6:Post and Cross Beam assembly 1.Connect Post (B2) and Post(A2) to Cross beam ( F using bolt(P) ） Note:Repeat this step for all Cross beam (F).
- Page 8 Assembly Fig.7.1 Fig.7.2 Step7:Cross Beam assembly 1.Attach Cross beam (S) to the Side beam (C)and (E) and fix with bolt(O),see Fig.7.1 and Fig.7.2 2.Cover the beam cap(V) Note:Repeat this step for all Cross beam (S).
- Page 9 Assembly Fig8.1 Fig8.2 Step8:Roof assembly 1.Attach Middle Cross beam (D) to the Side beam (C)and (E) and fix with bolt(O),see Fig.8.1 and Fig.8.2.
- Page 10 Assembly Fig.9.4 Fig.9.3 Fig.9.2 Fig.9.1 Step9:Fabric roof assembly 1.Inser t the pole(H) and(G) through the fabric. 2.Inser t the pole(H) through the pulley I and fabric(U),see fig 9.1 and fig.9.2 （ ） 3.Inser t the pole(H) through the pulley(L) and fabric(U). 4.Inser t the pole(G)through the pulley (N) and fabric(U).see fig.9.3 and fig.9.4 x2pcs Fix the pole(G) to the beam(C)using bolt(X).
- Page 11 Assembly...
- Page 12 Assembly Fig.11.1 Fig.11.2 Step11:Roof assembly 1.Turn the bolt out from pole (H) see Fig.11.1and inser t the pole through the pulley hook(M) ,then turn bolt in see Fig.11.2 Note:Repeat this step for all poles.
- Page 13 Assembly 8pcs 4pcs Please don’t hesitate to contact us for any further questions, your satisfaction is guaranteed. support@aoodorshop.com https://aoodorshop.com/...
