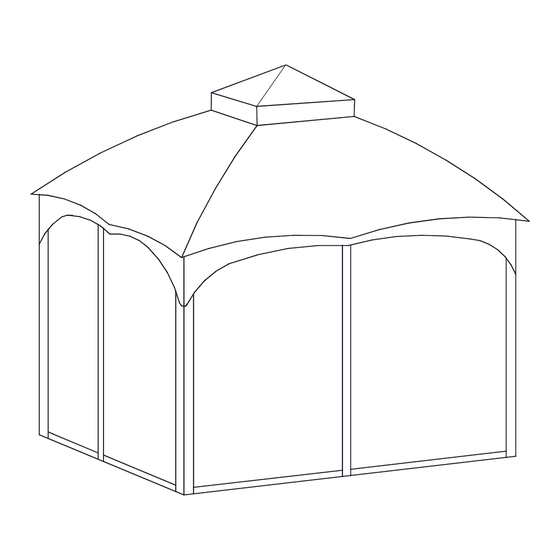

- Page 1 Assembly&Instruction Manual SKU:800-034 10x12ft azebo Installation Guide Save this manual for future reference...
- Page 2 INTRODUCTION Thank you for purchasing Aoodor s Patio gazebo ! We hope you will find joy in our product for many years to come. To ensure your personal safety during installation and to get the most out of your investment, please read this entire manual before beginning the installation process.
- Page 3 Parts list Par ts Desc Ref No Par ts Desc Ref No 800-034-021 800 034 001 800 034 002 800 034-022 800 034-003 800 034-023 800 034-004 800 034-024 800 034-005 800 034-025 800 034-006 800 034-026 M6x10mm 800 034-007...
- Page 4 Assembly Step1:Inser t the post plate cover (O) into the suppor ting post (A). Fit the post b o t t o m p l a t e ( M ) u n d e r n e a t h t h e suppor ting post (A).
- Page 6 Assembly Step5:Fix netting and cur tain hanging tubes(D) on crossbar (C)with M6x72mm bolts (Z),nuts(1)and plastic washers(3). Repeat this step for the remaining crossbar Note:this crossbars is for size12ft Step6:Fix netting and cur tain hanging tubes(D1) on crossbar(C1) with M6x72mm bolts (Z),nuts(1) and plastic washers(3).
- Page 8 Assembly 10ft Step9:Screw the hook(P) into the roof connector(Q) Insert the top roof poles into top connector(Q) as figure Connect the top roof poles with crossbar and stand post connector using M6x28mm bolts(Y) and nut(1) Note:shor t roof pole(H) connect with crossbar (C1),and shor t roof pole(H1)connect with crossbar (C). Repeat steps to complete gazebo roof frame...
- Page 9 Assembly 10ft 12ft Step10:Inser t the top roof poles(J),(K) into top connector(R) as figure Inser (L)into (K),and fix air vent pole with top connector pole(E) using M6x28mm bolts(Y) and nut(1)
- Page 10 Hinging the mosquito netting on inside (D)and (D1) tube using plastic hook(2). Note:gazebo cur tain is not included and can purchase separately. Fix the gazebo on Concrete Patio with Expansion screws(6) Fix the gazebo on lawn patio with anchoring(7) Please don’t hesitate to contact us for any further questions, your satisfaction is guaranteed. customerservice@aoodor.com https://www.aoodor.com/...
