Installing the wall anchor for the Bodhi
Suspension System
IMPORTANT SAFETY WARNINGS: DO NOT PROCEED UNTIL READING
» This is a load bearing installation. It is strongly recommended
that a licensed contractor perform the installation.
» Failure to install properly may result in injury during use.
Balanced Body is not responsible for injury to due to
incorrect installation.
» After anchor and Bodhi installation, periodically suspend full
body weight on each installed Bodhi at one time to verify the
install. If there is substantial movement or noise from the wall,
consult your contractor prior to use.

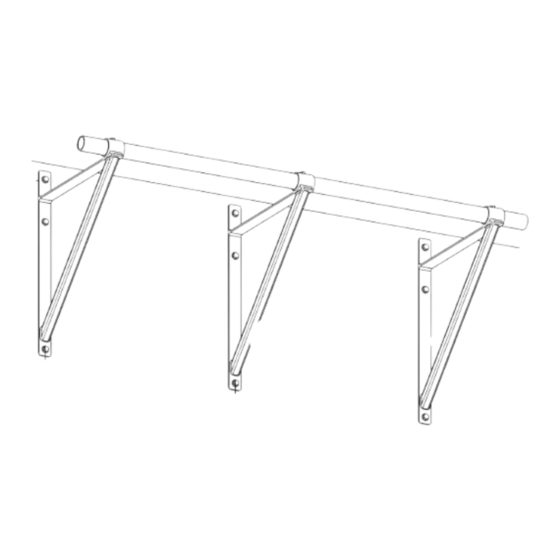

PARTS LIST (SEE FIGURE A)
Item No. Description
1
Wall bracket
2
3/8" x 3" long lag bolt
3
3/8" washer
4
1/4-20 x 5/8" socket head
cap screw
5
3/16"allen key
from Balanced Body
™
» Brackets must be installed onto the studs of a structurally
» Brackets cannot be installed onto steel frame walls.
» These instructions and the provided hardware are for standard
Part Number Quantity
616-147
1
GEN8015
3
GEN8016
3
GEN9942
1
GEN9280
1
sound wall. When evaluating your structure, plan for it to hold
3x the maximum user weight of 300 pounds for every 32".
If it cannot do this it may need to be reinforced or not
installed at all.
2x4 or 2x6 wood frame construction only.
2
3
5
®
1
4
Fig A
Contact Us
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
400-285 | 07.02.18
