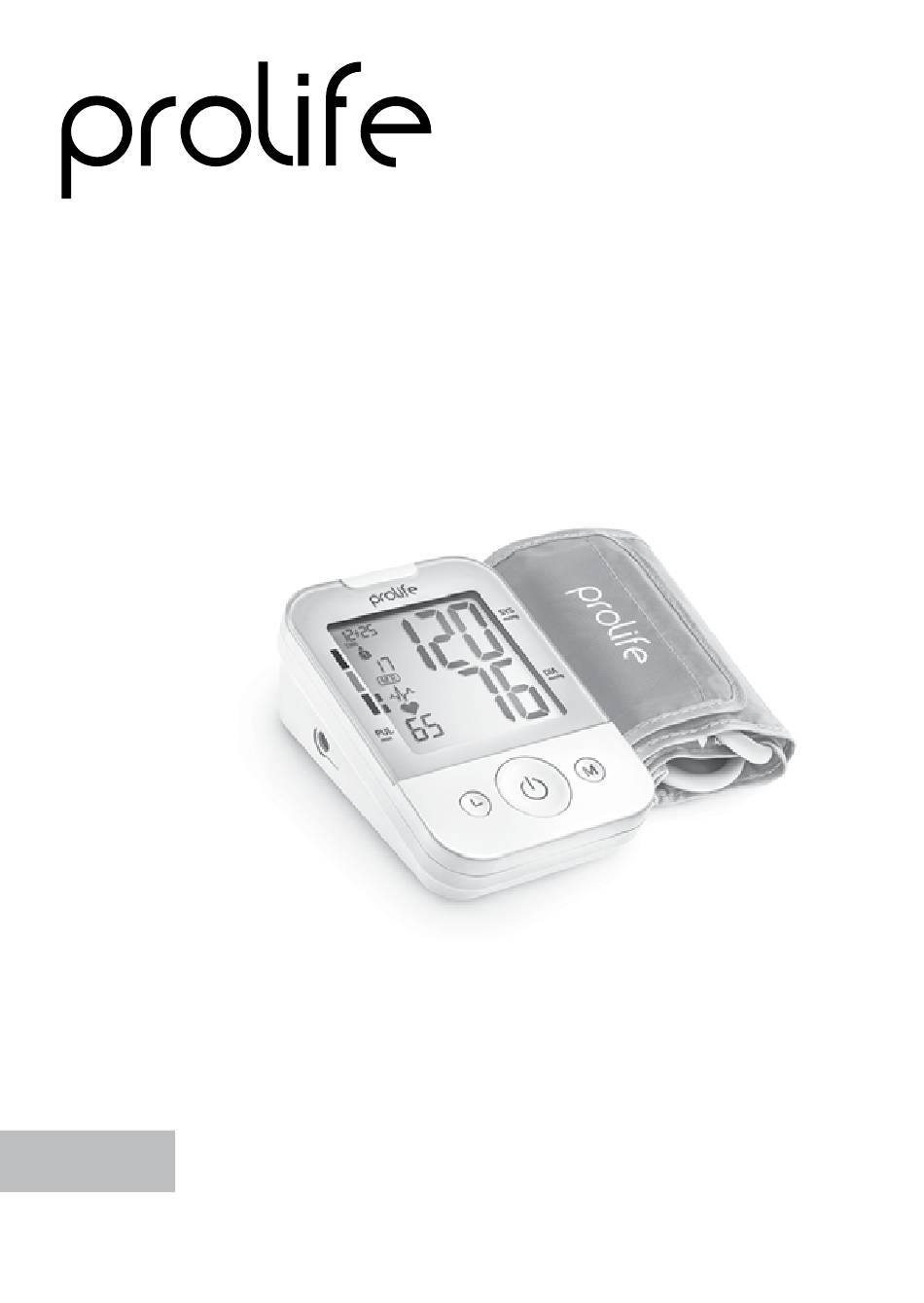

- Page 1 DIGITAL BLOOD PRESSURE MONITOR Prolife PA2 Basic / PA2 Basic AD Instruction manual...
-
Page 2: Medical Device Description
Digital Blood Pressure Monitor Prolife, model PA2 Basic / PA2 Basiс AD. MEDICAL DEVICE DESCRIPTION The Digital Blood Pressure Monitor Prolife PA2 Basic / PA2 Basiс AD (with integrated time / date display) is a fully automatic, digital blood pressure measuring device for use on the upper arm, which enables very fast and reli- able oscillometric measurement of the systolic and diastolic blood pressure as well as the pulse frequency. - Page 3 Prolife adapter, Prolife case, 4 size AA batteries, instruc- tion manual, warranty card WARNING Power adapter is not supplied with PA2 Basic. If necessary, DC 6 V, 600 mA you can purchase the adapter yourself. The power adapter must meet the requirement EN 60601-1, EN 60601-1-2.
- Page 4 COMPLETENESS Model: PA2 Basic Power socket Cuff connection TIME ON / OFF button MEMORY opening button button Display Time and date User selection Traffic Systolic value light display Memory value number Memory symbol mmHg Pressure unit Heart arrhythmia indicator Diastolic value Heart symbol...
- Page 5 Model: PA2 Basic AD Power socket Cuff connection TIME ON / OFF button MEMORY opening button button Display Time and date User selection Traffic Systolic value light display Memory value number Memory symbol mmHg Pressure unit Heart arrhythmia indicator Diastolic value Heart symbol...
-
Page 6: Inserting The Batteries
Reading the set date Press the TIME button and the date will be shown in the display. Model: PA2 Basic and PA2 Basic AD User selection / setting the time and date User selection This advanced blood pressure monitor allows you to track blood pres- sure readings for 2 individuals independently (User 1, User 2). -
Page 7: Setting The Time And Date
3 sec Model: PA2 Basic and PA2 Basic AD 2. To confirm, press ON / OFF button. NOTE: we suggest the first person to take their pressure to be User 1. Model: PA2 Basic and PA2 Basic AD Setting the time and date This blood pressure monitor incorporates an integrated clock with date display. -
Page 8: Further Information
4. Press the TIME button again. The corresponding day can now be entered by pressing the MEMORY button. Model: PA2 Basic and PA2 Basic AD 5. Press the TIME button again. The display now switches to the current time, during which the first character (hour) blinks. The corresponding hour can now be entered by pressing the MEMORY button. -
Page 9: Common Sources Of Error
Common sources of error NOTE Comparable blood pressure measurements always require the same conditions. In a state of physical and emotional rest. • Take a comfortable position, relax and do not toughen muscles of the arm subject to measurements. If necessary, use a cushion for support. •... -
Page 10: Measuring Procedure
2. Lay the arm on a table, with the palm upwards. The cuff should be at the level of the heart, if necessary place a cushion under the forearm. Ensure support of the arm on a horizontal surface. Stay calm for 2 minutes before measurement. -
Page 11: Discontinuing A Measurement
120 measurement values. By pressing the MEMORY button, an average value of the last 3 measurements (MR) as well as the last measurement and the previous 119 measurements can be displayed one after the other. Model: PA2 Basic and PA2 Basic AD mmHg mmHg... -
Page 12: Appearance Of The Heart Arrhythmia Indicator For Early Detection
In order to delete all stored readings,depress the MEMORY button for at least 5 seconds, the display will show the symbol «CL» and then release the button. The symbol «CL» begins to blink. To permanently clear the memory, press the MEMORY button while «CL» is flashing. APPEARANCE OF THE HEART ARRHYTHMIA INDICATOR FOR EARLY DETECTION This symbol indicates that certain pulse irregularities were detected... - Page 13 The measured readings indicated an unacceptable difference between systolic and diastolic pressures. Take another reading following directions carefully. Contact you doctor if you continue to get unusual readings The pressure is over 290 mm Hg Other possible malfunctions and their elimination If problems occur when using the device, the following points should be checked and if necessary, the corresponding measures are to be taken: Malfunction...
- Page 14 Further Information • The level of blood pressure is subject to fluctuations even with healthy people. Important thereby is, that comparable measurements always require the same conditions (Quiet conditions)! If, in spite of observ- ing all these factors, the fluctuations are larger than 15 mmHg, and / or you hear irregular pulse tones on several occasions, please consult your doctor.
- Page 15 Should the systolic blood pressure values lie between 140 mmHg and 160 mmHg and / or the diastolic blood pressure values lie between 90 mmHg and 100 mmHg, please, consult your doctor immediately. Furthermore, regular self-checks will be necessary. With blood pressure values that are too low, i. e. systolic values under 100 mm Hg and / or diastolic values under 60 mm Hg, likewise, please consult your doctor.
- Page 16 INFORMATION PROVIDED BY MANUFACTURER The Prolife PA2 Basic / PA2 Basiс AD is intended for use in the electromag- netic environment specified below. The customer or the user of the PA2 Basic / PA2 Basiс AD should assure that it is used in such an environment.
- Page 17 IEC 61000-4-11 power mains interruptions, 70 % UT it is recommended that the (30 % dip in UT) Prolife PA2 Basic / for 25 cycles PA2 Basiс AD be powered from an uninterruptible <5 % UT power supply or a battery...
- Page 18 80 MHz munications equipment should 3 V / m be used no closer to any part 80% AM (2 Hz) of the Prolife PA2 Basic / PA2 Basiс AD, including cables, than the recommended sepa- 3 Vrms 80 MHz ration distance calculated from...
- Page 19 If the measured field strength in the location in which the Prolife PA2 Basic / PA2 Basiс AD is used exceeds the applicable RF compliance level above, the Prolife PA2 Basic / PA2 Basiс AD should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Prolife PA2 Basic / PA2 Basiс...
-
Page 20: Care And Maintenance
• It is forbidden to open the device housing and perform any other indi- vidual manipulations! WARRANTY The Digital Blood Pressure Monitor Prolife PA2 Basic / PA2 Basiс AD has a 10 years warranty from the date of purchase. The warranty does not apply to damage caused by improper handling, accidents, not following the operating instructions or alterations made to the device by third parties. -
Page 21: Service Life
The manufacturer reserves the right to make changes in the design of the device. The information of the date of mass production and the importer is placed on the individual package. SERVICE LIFE The service life of the device is 10 years. BATTERY LIFE It is used 1000 times measurement with 4 size AA alkaline batteries. -
Page 22: Device Care
• Use only certified accessories, removable parts and materials. For this device you can use such models of cuffs as: Prolife standard cuff 22–32 cm; Prolife standard cuff 22–42 cm; Prolife conic cuff 22–42 cm. Device care Clean the device only with a soft, dry cloth. - Page 23 11-5B, No. 105, Huanguan South Road, Dahe Community, Guanlan, Longhua New District, Shenzhen, 518110 Guangdong, People's Republic of China. Authorized Representative in the EU: MedNet EC-REP GmbH, Borkstrasse 10, 48163 Münster, Germany. Prolife® is the registered trademark by Montex Swiss AG, Tramstrasse 16, CH–9442, Berneck, Switzerland.
-
Page 24: List Of Symbols
LIST OF SYMBOLS Symbol Meaning The product complies with Directive 93/42/EEC concerning medi- cal products. WEEE (Waste Electrical and Electronic Equipment Directive). The symbol on the product or its package means that this product does not fall under the category of domestic waste. To avoid pos- sible damage to the environment and human health, separate such wastes from others and dispose of them in accordance with accepted standards.
