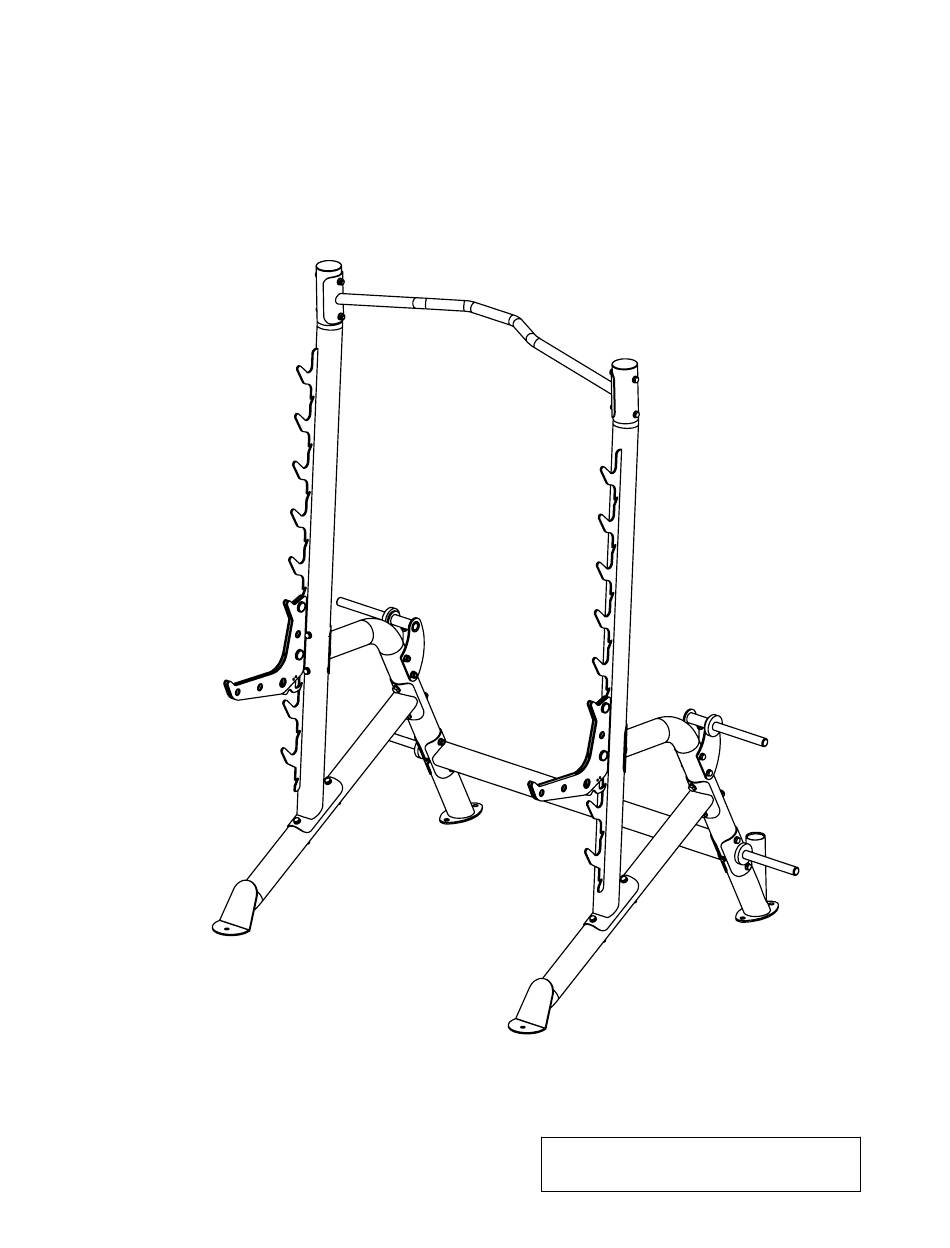

- Page 1 INSPIRE SQR1.2 ASSEMBLY & OPERATION MANUAL RECORD SERIAL NUMBER HERE www.inspirefitness.com by Health In Motion LLC Dec. 2016...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Description……………………………………………………. Page Important Safety Instructions………………………………………. Parts List…………………………………………………………………………. Exploded Diagram…………………………………………………………. Assembly Instructions……………………………………………………. Decal Reference……………………………………………………………… Decal Placement……………………………………………………………… General Maintenance Information…….…………………………… Maintenance Schedule……………………………………………………. Limited Warranty…………………………………………………………….. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read this entire manual and familiarize yourself with all decals and warnings before using this squat rack. • WARNING! It is necessary to inspect this squat rack regularly to maintain safety and proper function. Please use the maintenance schedule included towards the back of this manual. -
Page 4: Parts & Hardware List
PARTS & HARDWARE LIST Main Upright Tube Assembly R GM578-230-002 Main Upright Tube Assembly L GM578-220-002 Support Tube Assembly R GM578-260-003 Support Tube Assembly L GM578-270-002 Front Foot Connector GM578-260-002 Pull Up Bar GM578-380-003 Rear Connection Tube GM578-380-001 Curved Plate GM578-382-001A Rubber Donut GM509-881-001... -
Page 5: Exploded Diagram
19 19 12 12 19 19 22 22 22 22 19 19 19 19 10 10 20 20 12 12 22 22 19 19 19 19 22 22 12 12 22 22 25 25 19 19 22 22 22 22 12 12 21 21 13 13... -
Page 6: Assembly Instructions
18 18 23 23 18 18 14 14 Step 1 Attach the Front Foot Connector (5) to the Support Tube Assembly R (3) using 1- Hex Bolt M12x95 (14), 2- M12 Curved Washers (18), and 1- Lock Nut M12 (23). Attach the Front Foot Connector (5) to the Support Tube Assembly L (4) using 1- Hex Bolt M12x95 (14), 2- M12 Curved Washers (18), and 1- Lock Nut M12 (23). - Page 7 19 19 19 19 22 22 12 12 19 19 19 19 22 22 Step 2 Attach the Support Tube Assembly L (4) to the Main Upright Tube Assembly L (2) using 2- Hex Bolts M10x95 (12), 4- M10 Curved Washers (19), and 2- M10 Lock Nuts (22). Attach the Front Foot Connector (5) to the Main Upright Tube Assembly L (2) using 1- Hex Bolt M10x95 (12), 2- M10 Curved Washers (19), and 1- M10 Lock Nut (22) Attach the Support Tube Assembly R (3) to the Main Upright Tube Assembly R (1) using...
- Page 8 12 12 22 22 19 19 22 22 12 12 19 19 19 19 Step 3 Attach the Rear Connection Tube Assembly (7) and Curved Plate (8) to the Support Tube Assembly L (4) using 2- Hex Bolts M10x95 (12), 4- M10 Curved Washers (19) and 2- M10 Lock Nuts (22).
- Page 9 22 22 13 13 17 17 10 10 17 17 Step 4 Attach the Upper Weight Plate Horn Mount (25) to the Support Tube Assembly L (4) using 2- Hex Bolt M10x100 (13), 4- M10 Flat Washer (17), and 2- M10 Lock Nut (22). Insert the Weight Plate Horn (10) into the Upper Weight Plate Horn Mount (25) using 1- Hex Bolt M8x25 (16), 1- M8 Spring Washer (20), and 1- M8 Curved Washer (21).
- Page 10 11 11 Step 5 Add the Spotter Assembly (11) onto the squat rack at the position most comfortable for use. PAGE 8...
-
Page 11: Decal Reference
DECAL REFERENCE Page 9... -
Page 12: Decal Placement
DECAL PLACEMENT "Checklist" "Warning Label" (on the inside bend) (on the inside bend) "Danger, Spotter Required" (on the inside bend) "Max Weight" (on the inside bend) "Warning, Pinch Point" "Warning, Pinch Point" (on the inside bend) (on the inside bend) "INSPIRE SQR1"... -
Page 13: General Maintenance Information
GENERAL MAINTENANCE INFORMATION • Regularly inspect product for loose hardware. • Do not use or store equipment outdoors. • Locate and familiarize yourself with all warning decals on the squat rack • Replace damaged or worn upholstery immediately. Page 11... -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE HOME ROUTINE ENTRY DATE MAINTENANCE Inspect: Links, Pull Pins, WEEKLY Spring Clips, Swivels, Weight Stack Pins Inspect: Accessory Bars 3 MONTHS and Handles 3 MONTHS Inspect: All Decals Inspect: All Nuts and 3 MONTHS Bolts. Tighten if Needed Inspect: Anti-Skid 3 MONTHS surfaces... -
Page 15: Limited Warranty
In Motion reseller. This Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, misuse, or abuse; (b) by the use of parts not manufactured or sold by Health In Motion; (c) by modification of the Product;...
