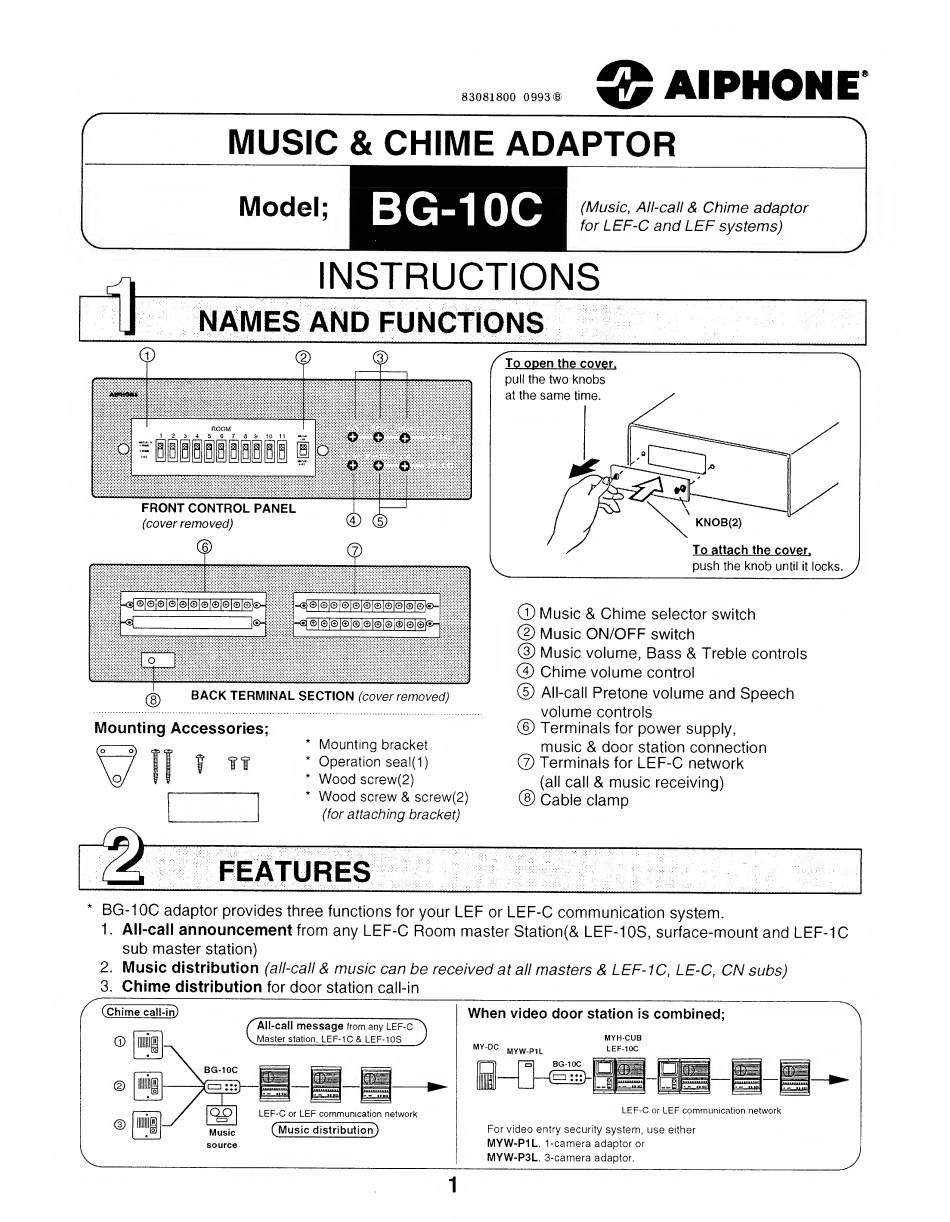

Aiphone BG-10C Instructions Manual

83081800 0993®
O AlPHONE
MUSIC & CHIME ADAPTOR
Model;
(Music, All-call & Chime adaptor
for LEF-C and LEF systems)
INSTRUCTIONS
NAMES AND FUNCTIONS
ROOM
123456789 10 n
0 O
l> O <5
FRONT CONTROL PANEL
(cover removed)
® 0
I ®|©i©|@|©|@|@|@|©|@|@|(£>-: ■
I ©|©l@|©|©l©|©|©l0|©i©|C
BACK TERMINAL SECTION (cover removed)
Mounting Accessories;
Mounting bracket
Operation seal(1)
Wood screw(2)
Wood screw & screw(2)
(for attaching bracket)
pull the two knobs
at the same time.
KNOB(2)
push the knob until it locks.
Music & Chime selector switch
Music ON/OFF switch
Music volume, Bass & Treble controls
Chime volume control
All-call Pretone volume and Speech
volume controls
Terminals for power supply,
music & door station connection
Terminals for LEF-C network
(all call & music receiving)
Cable clamp
BG-10C adaptor provides three functions for your LEF or LEF-C communication system.
1. All-call announcement from any LEF-C Room master Station(& LEF-10S, surface-mount and LEF-1C
sub master station)
2. Music distribution (all-call & music can be received at all masters & LEF-1C. LE-C, CN subs)
3. Chime distribution for door station call-in
Jhime call-in)
® iiiiiip
All-call message
from any LEF-C
Master station. LEF-1C & LEF-10S
When video door station is combined;
MYW-P1L
MYH-CUB
LEF-10C
BG-10C
Music
LEF-C or LEF communication network
CMusic distribution^
LEF-C or LEF communication network
For video entry security system, use either
MYW-P1L, 1-camera adaptor or
MYW-P3L, 3 -camera adaptor.
