- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2025-01-22...
-
Page 3: Table Of Contents
Functions of the Appliance ..............11 Installation and operation ................12 Installation ....................12 Operation ....................14 Cleaning and Maintenance ................17 Safety Instructions for Cleaning ............. 18 Cleaning ....................18 Maintenance ..................19 Possible Malfunctions .................. 20 Disposal ....................... 21 190091... -
Page 5: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 190091 1 / 21... -
Page 6: Safety Instructions
Any repairs or housing opening may be carried out by professionals and relevant workshops only. • Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. 2 / 21 190091... - Page 7 (candles or heaters) nor with any other means. Vapour produced may cause short-circuit and too high temperatures may damage the appliance. • All ventilation slots should not be obstructed during operation. • Never attempt to damage cooling installation of the appliance. 190091 3 / 21...
- Page 8 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 4 / 21 190091...
-
Page 9: Intended Use
The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives. – Storing explosive materials, like sprays filled with flammable propellants. – Storing pharmaceutical products or preserved blood. – Storing live pets. 190091 5 / 21... -
Page 10: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 6 / 21 190091... -
Page 11: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 190091 7 / 21... -
Page 12: Technical Data

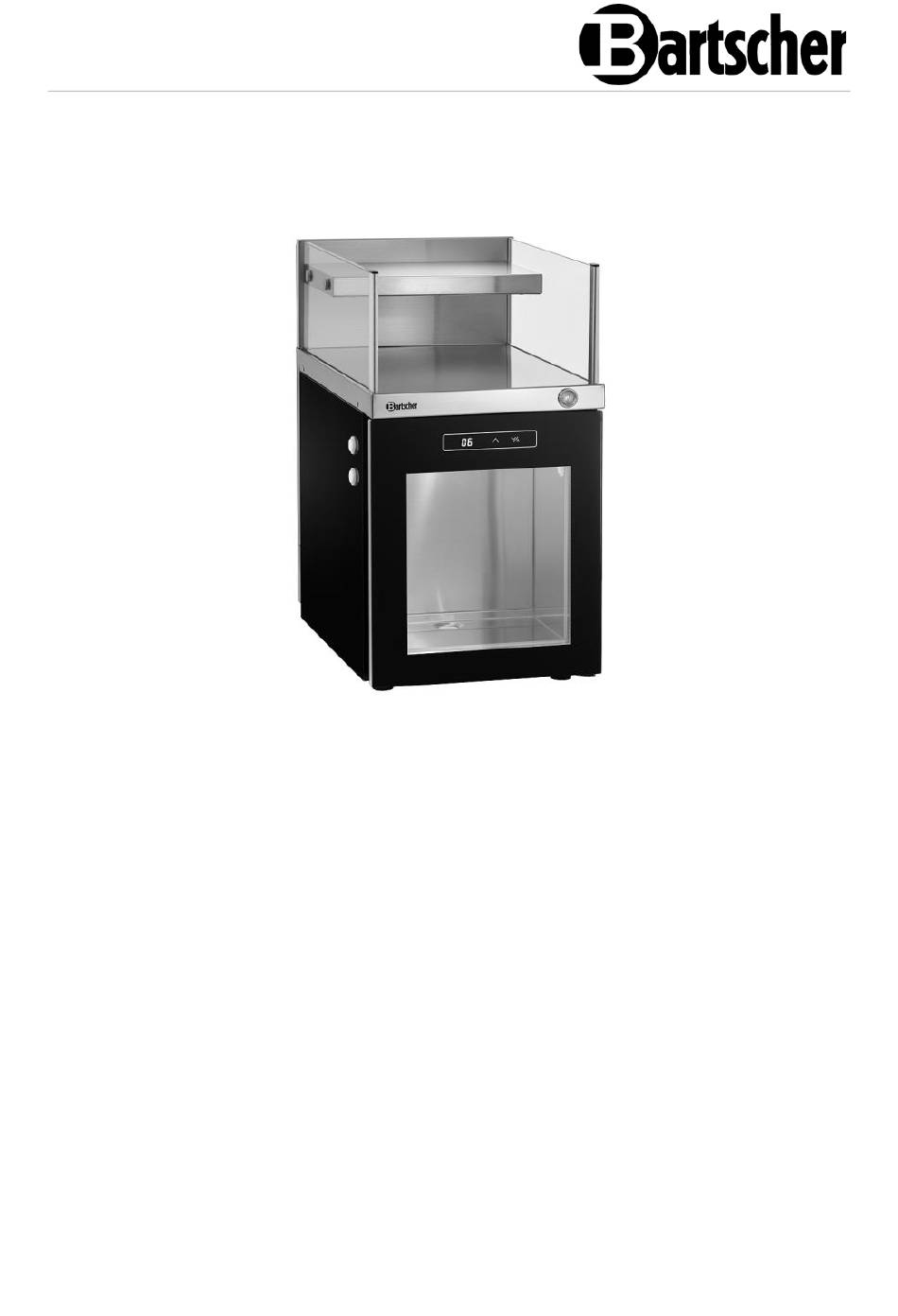

Technical Data Technical Data Technical Specifications Milk refrigerator cup warmer combi Name: 190091 Art. No.: Material: stainless steel | glass Inner material: stainless steel Internal dimensions of the milk 243 x 178 x 280 refrigerator (W x D x H), in mm:... - Page 13 – Designed for, e.g., 6 Tetra Pak® cartons, 1 litre each – Direct milk supply through the openings on the side of the appliance – LED lighting, switched on separately • Including: 4 tube feedthrough covers Important information: Tube feedthroughs are closed upon delivery 190091 9 / 21...
-
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Rear view Fig. 1 10 / 21 190091... -
Page 15: Functions Of The Appliance
The cooled milk is stored hygienically and, if required, may be dispensed directly for preparing coffee using the milk tube that a coffee machine is equipped with. On 2 heated surfaces of the cups warmer, you can warm up to 30 cups to the ideal temperature. 190091 11 / 21... -
Page 16: Installation And Operation
Never place the appliance in humid or wet environment. • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: 12 / 21 190091... - Page 17 2 hours, before it is connected to power supply. • After a power failure or when the plug is removed from the socket, do not reconnect the appliance to power supply for at least 5 minutes. 190091 13 / 21...
-
Page 18: Operation
1. Current temperature inside the milk refrigerator is displayed on the digital display of the temperature controller (1). 2. By pressing the button you increase the temperature. 3. By briefly pressing the button you can turn on/off the LED lighting inside the milk refrigerator and decrease temperature. 14 / 21 190091... - Page 19 The cooling compartment is designed for 6 Tetra Pak® milk cartons, 1 litre each. You may also pour milk to a milk container. For this purpose we recommend Bartscher milk container: KV9L, art. No. 190094 2. Unscrew the cover(s) of the required milk tube feedthroughs on the left or right, and put them away.
- Page 20 7. At the end of a work day, take the milk tube out from the milk carton, or from the milk container. 8. Clean the milk tube, as described in the coffee machine operation manual. Fig. 5 16 / 21 190091...
-
Page 21: Cleaning And Maintenance
If the safety devices need to be removed for maintenance, cleaning and repair, they should be reinstalled immediately after completion and their function should be checked. All maintenance and cleaning work must be carried out in accordance with the operating instructions at the specified intervals. 190091 17 / 21... -
Page 22: Safety Instructions For Cleaning
2. Wipe the cleaned surfaces with a cloth moistened with clean water to remove any residues of the cleaning agent. 3. Finally, dry all cleaned surfaces thoroughly. 4. Wipe the work surfaces regularly with a food-grade disinfectant. 18 / 21 190091... -
Page 23: Maintenance
– clean the appliance following the instructions in section ‘Cleaning / milk refrigerator’. Maintenance Let the appliance to be inspected by professional technician at least once a year or as required. LED lamp replacement If the LED lamp is damaged, it must be replaced by service staff. 190091 19 / 21... -
Page 24: Possible Malfunctions
Damaged temperature Contact the service company controller The appliance Temperature is not set Set the temperature (cups warmer) Damaged temperature Contact the service company does not heat up controller Damaged heating element Contact the service company 20 / 21 190091... -
Page 25: Disposal
Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 190091 21 / 21...
