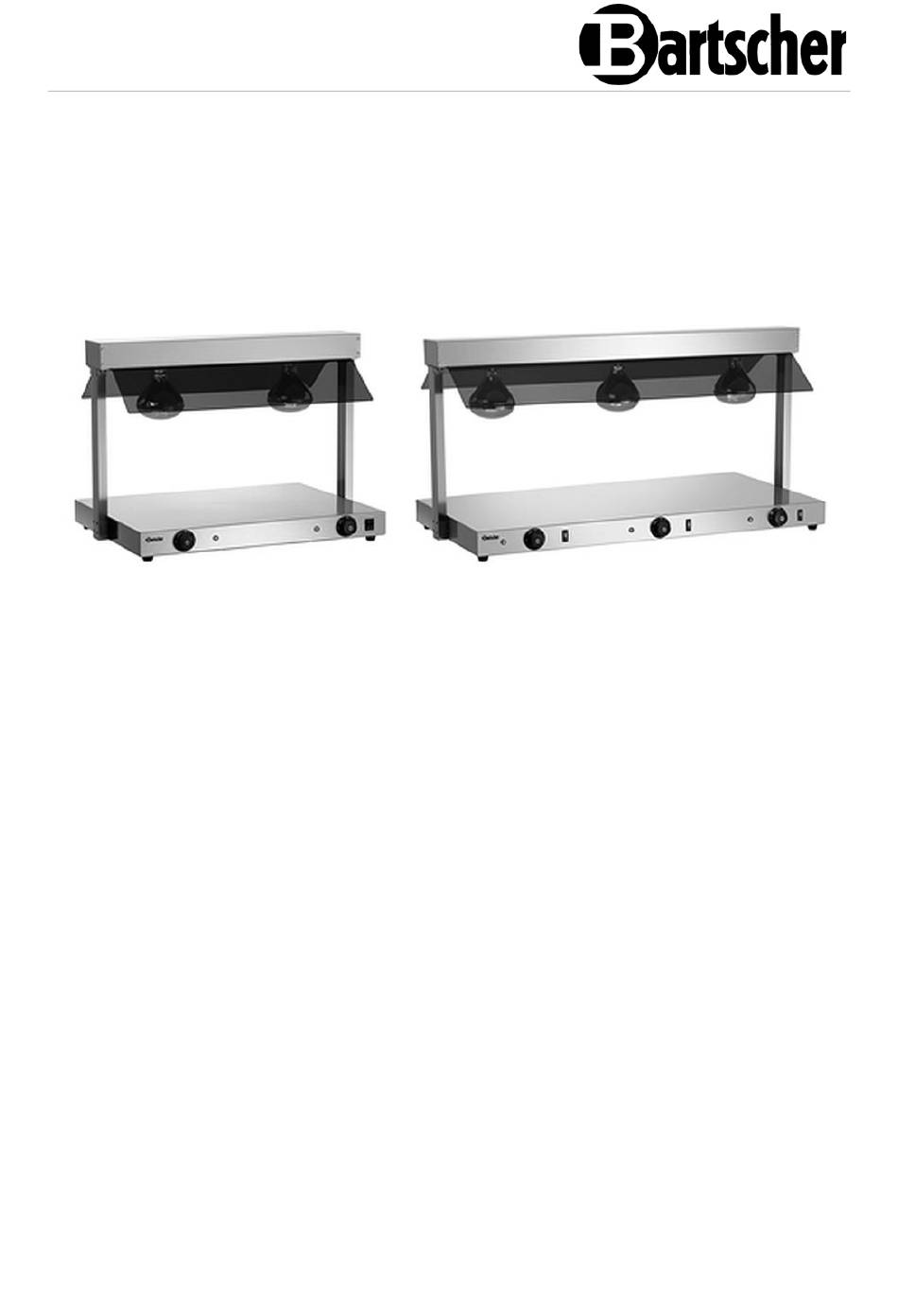

- Page 1 I2WL801 - I3WL1200 114302 - 114303...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-06-21...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Keeping food warm with the use of suitable GN containers or plates. This appliance is intended for use in households and similar places, e.g.: –... -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
– ON/OFF • Delivery form: self-assembly set, simple assembly • The set includes: 2 or 3 infrared lamps (0.25 kW); glass colour: red Name: Food warmer I2WL801 114302 Art. No.: Material: stainless steel, perspex Number of heat sources: Power per heat source: Temperature range, min.–max., in °C:... -
Page 12: Functions Of The Appliance
Technical Data Name: Food warmer I3WL1200 114303 Art. No.: Material: stainless steel, perspex Number of heat sources: Power per heat source: Temperature range, min.–max., in °C: 30 - 85 Dimensions of the warming plate (W x D), 1.030 x 535 in mm: Compatible with GN containers: 3 x 1/1 GN... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 114302 Fig. 1 1. Top housing / lamp support 2. Sneeze guard 3. Infrared lamp (2 pcs) 4. Warming plate 5. Power cord 6. ON/OFF switch with integrated indicator light (red) for the right-hand infrared lamp 7. - Page 14 Technical Data 114303 Fig. 2 1. Top housing / lamp support 2. Sneeze guard 3. Infrared lamp (3 pcs) 4. Warming plate 5. Power cord 6. ON/OFF switch with integrated indicator light (red) for infrared lamp (3 pcs) 7. Temperature controller (3 pcs) 8.
-
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 16 Installation and operation • Never place the appliance in the direct vicinity of walls, masonry, kitchen furniture, or other objects. Make sure there is enough distance (at least 30 cm) from walls and other flammable or prone to discolouration objects. Follow the valid fire protection regulations.
-
Page 17: Operation
Installation and operation Operation Before First Use 1. Before use, clean the appliance observing the instructions in section 6 'Cleaning'. 2. Thoroughly clean the appliance with a soft cloth. 3. Plug the appliance into a suitable single socket. 4. Prepare food, as required. Heating of Food WARNING Risk of burning! - Page 18 Installation and operation The following description applies to each heating zone. 1. Place the required warm food in suitable GN containers or on plates under the infrared lamp(s). Fig. 3 2. Use the temperature controller and set the temperature for the heating zone of choice in the range of 30–85°C.
-
Page 19: Cleaning
Cleaning Disconnecting the Heating Zone 1. If one of the heating zones will no longer be used, rotate the temperature controller to '0' position. 2. Switch the infrared lamp off for this heating zone using the ON/OFF switch (set to 'O' position). Switching the Appliance OFF 1. -
Page 20: Cleaning
Cleaning Cleaning Important Indications • Sugar and sugar-containing products (e.g., jams) and melted plastic must be removed immediately from the hot warming plate with a suitable cleaning scraper. Otherwise it may be damaged while cooling down. • The warming plate should be cleaned regularly. The dirt that has not been removed burn into the surface during next operation and may become permanent. - Page 21 Cleaning Infrared Lamps 1. Infrared lamps should be cleaned regularly. Make sure the appliance is disconnected from the electricity power supply and has cooled down completely. Proceed the following way: – unscrew infrared lamps from their fittings; – wipe them slightly with a damp cloth; –...
-
Page 22: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
