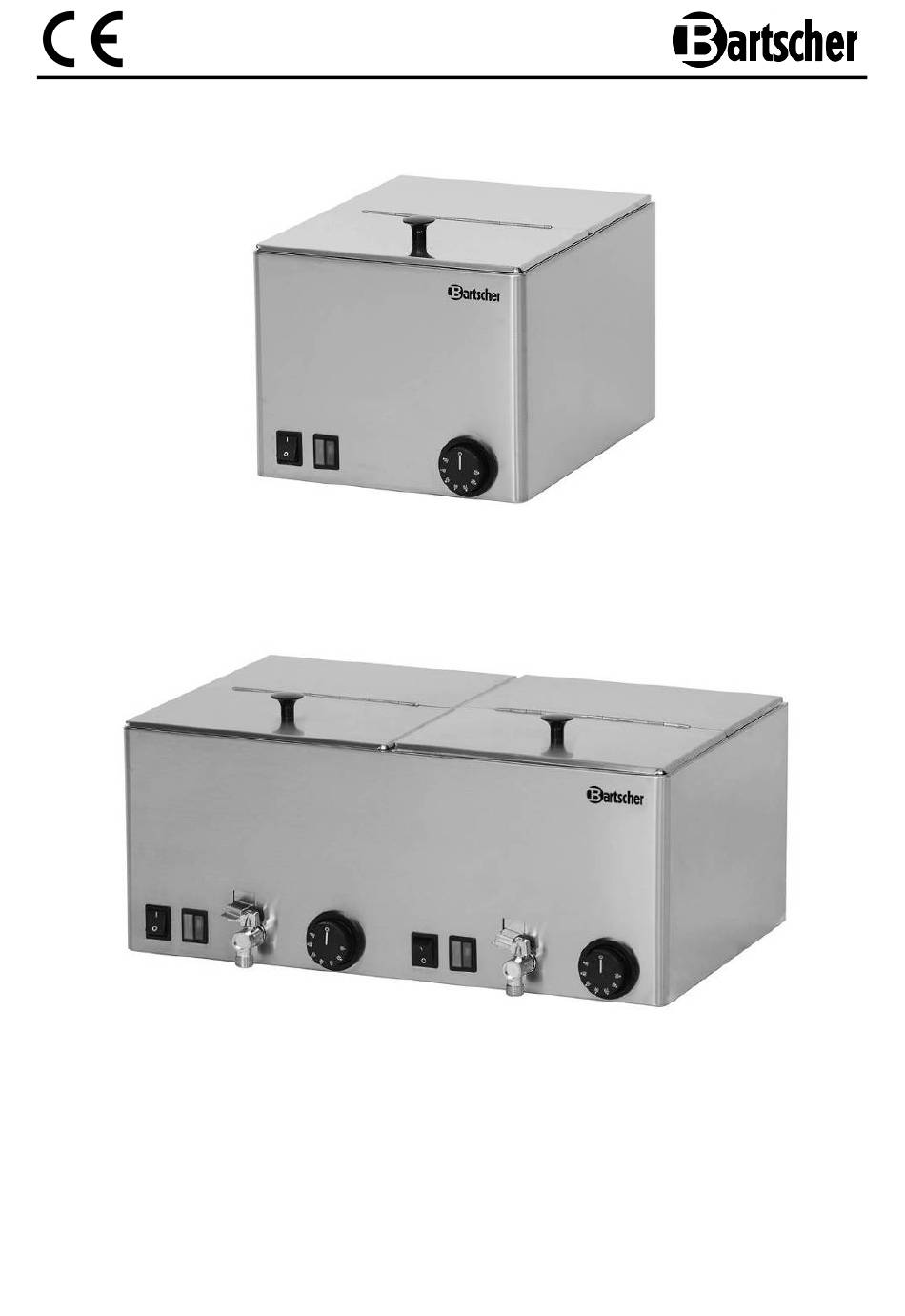

- Page 1 A120465 / 1KA10 A120466 / 2KA20 Original-Gebrauchsanleitung V2-1/0516...
-
Page 2: Table Of Contents
5. Installation and operation ..................27 5.1 Installation ......................27 5.2 Operation ......................28 6. Cleaning ........................30 7. Possible Malfunctions .................... 31 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 6: Key To Symbols
HOT STEAM! Risk of scalding! To avoid the effects of this risk, follow the safety instructions presented below. • The evaporating steam is hot. Take extra care when opening or removing the lid. The hot steam may cause burns to your hands and face. -
Page 7: Proper Use
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts A120465 Lid handle Hinged lid, removable Body Grate Temperature adjustement knob Heating control (orange) Power control (green) ON/OFF switch - 25 -... - Page 11 A120466 Lid handle Hinged lid, removable Body Temperature adjustment knob Drain safety lock Drain tap Heating control (orange) Power control (green) ON/OFF switch Grate (2) - 26 -...
-
Page 12: Technical Specification
4.2 Technical specification Name Sausage warmer A120465 / 1KA10 A120466 / 2KA20 Code-No. / type: Material: Stainless steel 1 container, 2 containers, without drain tap; each with drain tap Model: W 240 x D 300 x H 150 mm W 240 x D 300 x H 150 mm... -
Page 13: Operation
Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal. - Page 14 WARNING! Risk of scalding! When filling up the container do not exceed “MAX” mark. Splashes of hot water may cause scalding! NOTE! Fill up the container with warm water to save time and energy! • Place the lid on the container. •...
-
Page 15: Cleaning
Place the jugs on a firm surface to avoid the water to splash. o From the container of the device code-no. A120465 drain the water out to a jug or sink. o Due to hygiene reasons, clean the containers twice a day. Clean the containers with warm water and mild detergent. -
Page 16: Possible Malfunctions
o For the device code-no. A120466, after draining the liquid also clean the drain taps. Fill in the containers with warm water, add mild detergent and use a soft cloth to clean. Drain the water through the drain taps. Rinse the containers with clean water and let it flow through the drain taps. -
Page 17: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
