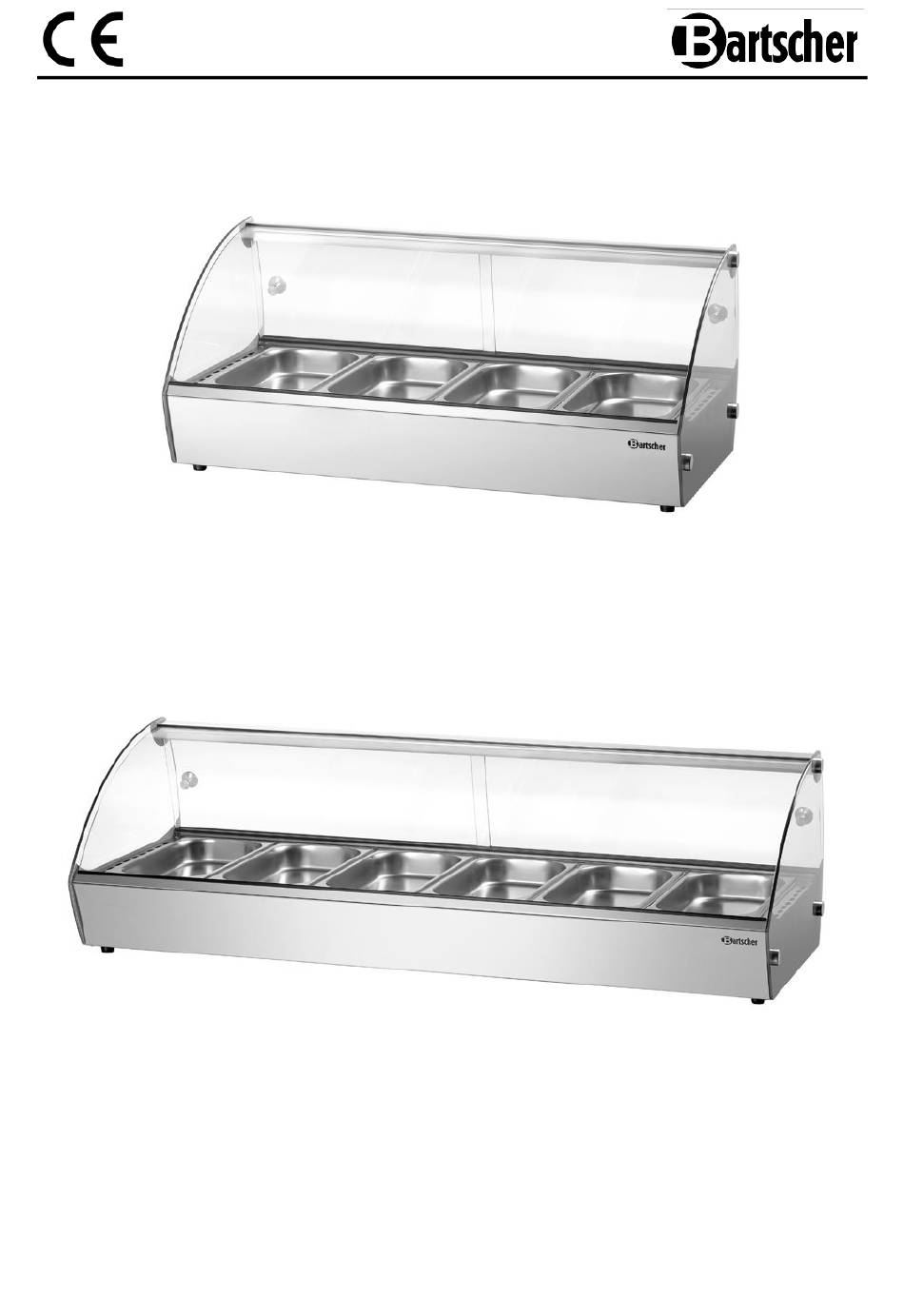

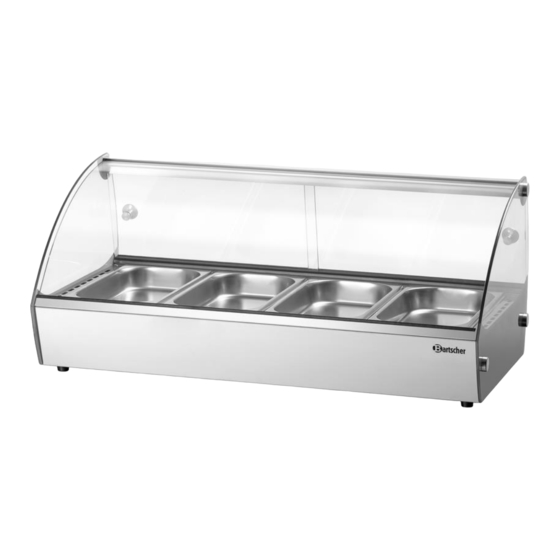

- Page 1 R4 4 x 1/3 GN 305058 R6 6 x 1/3 GN 305059 Original-Gebrauchsanleitung V1/1017...
-
Page 2: Table Of Contents
4.2 Overview of parts ....................30 5. Installation and operation ..................32 5.1 Installation ......................32 5.2 Operation ......................33 6. Cleaning ........................35 7. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
- Page 6 Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
- Page 7 HOT SURFACE! Risk of burns! To avoid the hazard results please follow the safety instructions below. During operation the housing of the device becomes very hot. Do not touch the device! Use designated operating elements and handles. After the device has been switched off it remains hot for some time.
-
Page 8: Proper Use
1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Technical specification Name Hot display R4 4 x 1/3 GN 305058 Code-No.: Material: Stainless steel, glass Round front glass Type of glass: - Single glazing, - All-round glazing, - Safety glass Door type:... - Page 12 Name Hot display R6 6 x 1/3 GN 305059 Code-No.: Material: Stainess steel, glass Round front glass Type of glass: - Single glazing, - All-round glazing, - Safety glass Door type: - Sliding door - Position of the door: operator side Realization: ...
-
Page 13: Overview Of Parts
4.2 Overview of parts 305058 Operator side view 9 8 7 1 Housing 6 Sliding glass door handle (2) 2 Front glass 7 Temperature control knob 3 GN container (4) 8 Heating-up indicator (orange) 9 ON/OFF switch with integrated 4 Rubber feet (4) power indicator light (red) 10 Power cable 5 Sliding glass door (2) - Page 14 300059 Operator side view 9 8 7 1 Housing 6 Sliding glass door handle (2) 2 Front glass 7 Temperature controller knob 3 GN container (6) 8 Heating-up indicator (orange) 9 ON/OFF switch with integrated 4 Rubber feet (4) power indicator light (red) 10 Power cable 5 Sliding glass door (2) - 31 -...
-
Page 15: Installation And Operation
5. Installation and operation 5.1 Installation Positioning Unpack the device and remove and dispose of all package materials according to the environment protection regulations. Put the device on an even, stable, dry and waterproof surface which is resistant to high temperature. -
Page 16: Operation
5.2 Operation Prepare the device Before first use, thoroughly clean the device and accessories (GN containers), and dry them. Follow instructions in section 6 “Cleaning” Device start-up Connect the device to a single grounded socket. Turn the device on using the ON/OFF switch. The ON/OFF switch integrated indicator light is on and indicating that the device has been connected to electric power supply. - Page 17 Glass panels are pre-heated, which should prevent accumulation of condensed water when placing food in the hot display. In the meantime, prepare required warm food and fill the supplied GN 1/3 containers with the food. Open the sliding glass door from the hot display operator side and place the GN containers with food onto the surface designed for...
-
Page 18: Cleaning
6. Cleaning WARNING! Before cleaning, switch the device off by pressing ON/OFF switch, disconnect it from the power supply (unplug!) and leave to cool off. The device is not suited for direct washing via water jets. Protect the device from water penetration. CAUTION! Never use aggressive cleaning agents, such as scouring powders, alcohol-based substances, or solvents which may damage the surfaces of the device. -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
