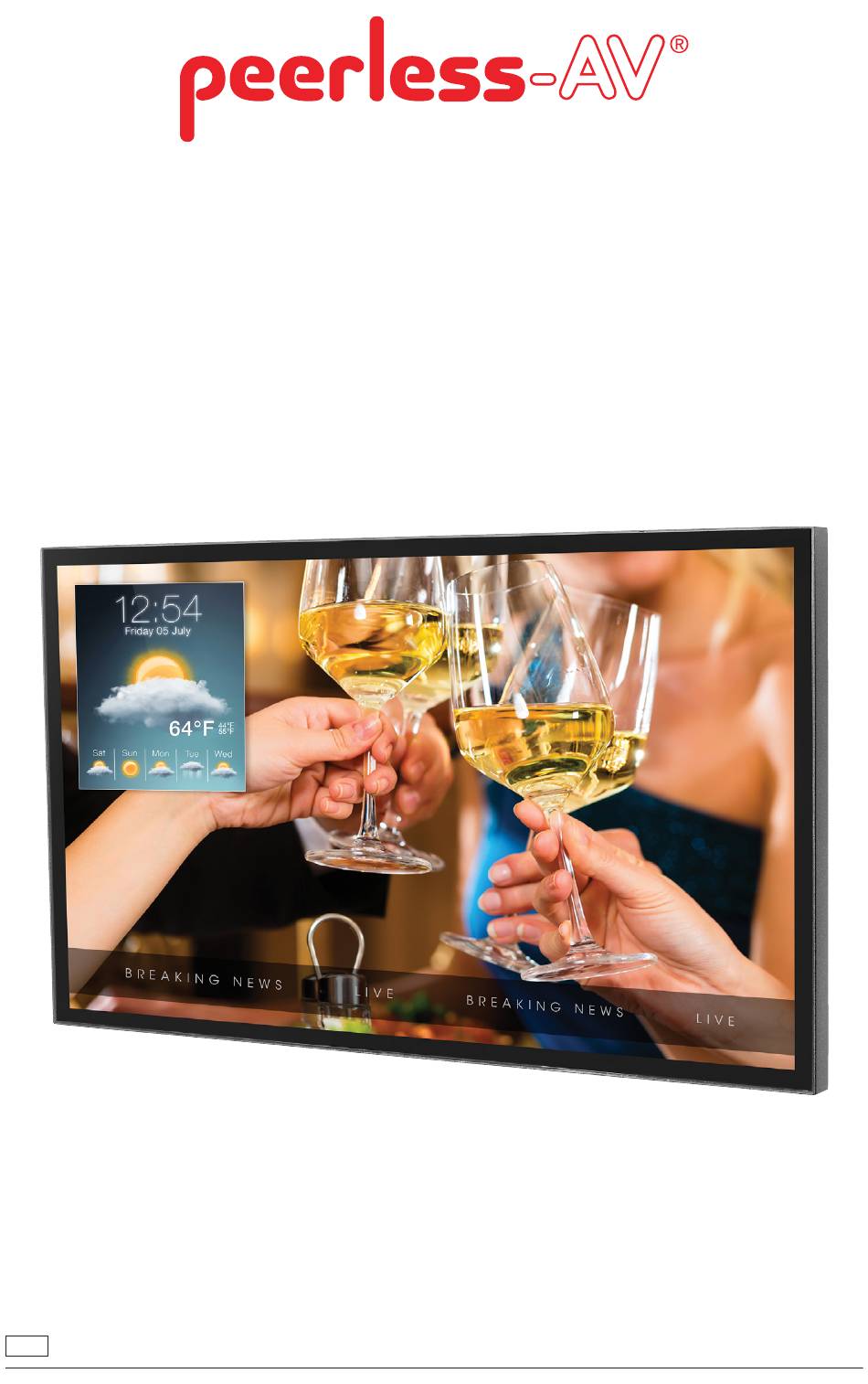

  • Page 1 Installation Guideline For XHB5541 2022-07-06 #:180-9147-3 (2025-03-20)

  • Page 2: System Installation And Electrical Requirements

    SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS Electrical Code Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility.

  • Page 3: Fcc Caution

    Record your display's model and serial number here for future reference. Keep this user manual in an accessible location in the event service is required. Note: Your display's serial number can be found on the box, underneath the rear cover plate, and in the Setup Menu under Peerless-AV Technical Support. Model Number ____________________________________...

  • Page 4: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS Read before operating equipment Thank you for purchasing our product. Before using it, please read this user guide carefully and follow the instructions for safe operation. Please keep this manual for future reference and always include it when transferring or transporting this product to a different location.
  • Page 5 To avoid image retention/burn-in on the LCD screen, do not allow static images to display for longer than 20 minutes at a time. Image retention is considered improper use of an LCD and is not covered by the Peerless-AV Limited Warranty, nor any extended warranty. Tools Needed for Assembly.

  • Page 6: Installation Locations

    Installation Locations Follow local codes for environmental requirements. If installed in extremely hot locations, ensure ambient temperature does not exceed operating temperature of the display. Be aware that sun exposure time over 3 hours can elevate the display's internal temperature by an additional 30°C over ambient temperature.

  • Page 7: Operating Parameters

    54.6 53.6 52.4 Operating Parameters 10.2 49.8 Use this graph to estimate solar load and its effect on maximum safe ambient temperature for the display. Maximum Ambient Temperature vs Solar Load Shade Partial Indirect Full Full Intense 143.6 136.4 132.8 129.2 125.6 1000...
  • Page 8 SENSOR WINDOW LOCATION Landscape Portrait 90° Landscape Landscape 90° Portrait Portrait Do not block the sensor window. If window is blocked, consult with Peerless-AV for proper IR extender (included with product) and ALS extender usage (sold separately). 2022-07-06 #:180-9147-3 (2025-03-20)
  • Page 9 Landscape SENSOR WINDOW LOCATION Portrait 90° Landscape Landscape 90° Portrait Portrait Do not block the sensor window. If window is blocked, consult with Peerless-AV for proper IR extender (included with product) and ALS extender usage (sold separately). 2022-07-06 #:180-9147-3 (2025-03-20)

  • Page 10: Prepare The Display For Mounting

    Install cords prior to mounting your display. Input panel may be obstructed once the display is mounted. A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting solution for your particular application. For your safety, only install an outdoor-rated mount that is suitable for the application and supports the weight of the display.
  • Page 11 Removing Handles (Optional) Do not remove. CAUTION Do not remove the screws above or below the handles. Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty. Landscape Mounting Landscape oriented displays use a 400 x 400mm VESA mounting pattern. Four M8 x 20mm screws and mount sold separately.

  • Page 12: Portrait Mounting

    Portrait Mounting Portrait oriented displays can use either 400mm x 400mm VESA mounting patterns on the raised portion of the rear surface. Note, this may limit access to removable input cover. Installers can also use either a 600 x 600mm mounting pattern or the 600 x 850mm perimeter mounting locations.

  • Page 13: Maximum Tilt

    Maximum Tilt For portrait or landscape oriented displays, the maximum downward tilt is 15°. 15° 15° 2" (51mm) 2" (51mm) Minimum Minimum LANDSCAPE PORTRAIT 2022-07-06 #:180-9147-3 (2025-03-20)
  • Page 14 Minimum Airflow Spacing Follow specifications provided for minimum spacing when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. 4"...
  • Page 15 Minimum Airflow Spacing Follow specifications provided for minimum spacing when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. 8"...
  • Page 16 Airflow, Venting and Heat Dissipation Follow specifications provided when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. f t ³...
  • Page 17 Airflow, Venting and Heat Dissipation Follow specifications when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. Preferred f t ³...
  • Page 18 Routing Cables in the Display Use only high-quality, shielded, grounded cables. media device drip/service loop media device drip/service loop media device drip/service loop 2022-07-06 #:180-9147-3 (2025-03-20)

  • Page 19: Replacing Cord Cover

    Replacing Cord Cover Run power and signal cords through separate cable channels to prevent unwanted interference. Route the power cord through the right most cable channel. (see image 1 below). Replace the cord cover ensuring the cords are running through the cable channels and not getting pinched.

  • Page 20: Cleaning The Screen

    Cleaning the Screen Do not rub or strike the screen with anything hard as this may scratch, mark, or even damage the screen permanently. Unplug the power cord before cleaning the screen. Do not spray water on the display in excess of 100kPa (14.5 PSI).
  • Page 21 This page intentionally left blank. 2022-07-06 #:180-9147-3 (2025-03-20)
  • Page 22 This page intentionally left blank. 2022-07-06 #:180-9147-3 (2025-03-20)
  • Page 23 This page intentionally left blank. 2022-07-06 #:180-9147-3 (2025-03-20)
  • Page 24 +44 (0) 1923 200 100 +31 (0) 70 770 8037 +52 (81) 8384-8300 © 2025 Peerless Industries, Inc. Peerless-AV is a registered trademark of Peerless Industries, Inc. All rights reserved. ® Other parties’ marks are the property of their respective owners.
