Installation Guideline
For XHB754
ENG
1
2022-07-11
#:180-9156-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XHB754 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for peerless-AV XHB754

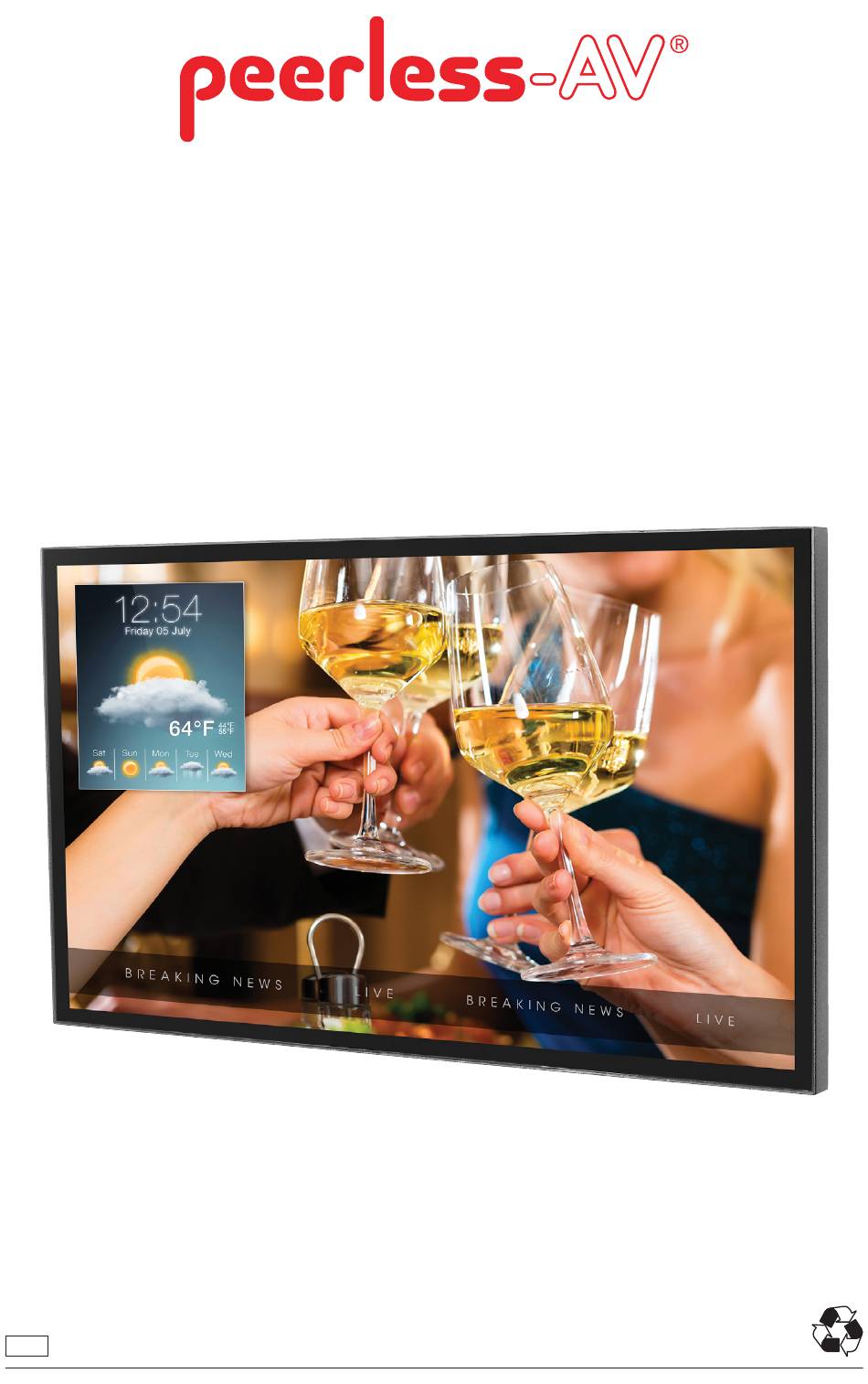

  • Page 1 Installation Guideline For XHB754 2022-07-11 #:180-9156-1...
  • Page 2: System Installation And Electrical Requirements

    SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS Electrical Code Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility.
  • Page 3: Fcc Caution

    Record your display's model and serial number here for future reference. Keep this user manual in an accessible location in the event service is required. Note: Your display's serial number can be found on the box, underneath the rear cover plate, and in the Setup Menu under Peerless-AV Technical Support. Model Number ____________________________________...
  • Page 4: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS Read before operating equipment Thank you for purchasing our product. Before using it, please read this user guide carefully and follow the instructions for safe operation. Please keep this manual for future reference and always include it when transferring or transporting this product to a different location.
  • Page 5 • Do not install in enclosure or recessed cavity with less than 2 inches of airflow around the display. Air inside fully encased display must be ventilated. Installations within any third party enclosure without written authorization from Peerless-AV are not covered by the Peerless-AV Limited Warranty, nor any extended warranty.
  • Page 6: Installation Locations

    The end user/installer must note the potential for temperature-increase based on high thermal/solar load, which needs to be addressed with additional cooling measures. Please contact Peerless-AV for design consultation in such cases. If installed in extremely cold locations, the end user/...
  • Page 7: Operating Parameters

    Peerless-AV Engineering should be consulted in these situations. Peerless-AV Engineering must be consulted before placing the display into any enclosure not developed by Peerless-AV. Peerless-AV Engineering management must approve this installation solution to support the native warranty of the display.
  • Page 8 This page intentionally left blank. 2022-07-11 #:180-9156-1...
  • Page 9: Display Orientation

    Landscape SENSOR WINDOW LOCATION Portrait 90° Landscape Landscape 90° Portrait Portrait Do not block the sensor window. If window is blocked, consult with Peerless-AV for proper IR extender (included with product) and ALS extender usage (sold separately). 2022-07-11 #:180-9156-1...
  • Page 10: Prepare The Display For Mounting

    Install cords prior to mounting your display. Input panel may be obstructed once the display is mounted. A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting solution for your particular application. For your safety, only install an outdoor-rated mount that is suitable for the application and supports the weight of the display.
  • Page 11 Removing Handles (Optional) Do not remove. CAUTION Do not remove the screws above or below the handles. Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty. Landscape Mounting Landscape oriented displays use a 1400mm x 600mm VESA mounting pattern on the raised portion of the rear surface.
  • Page 12: Portrait Mounting

    Portrait Mounting Portrait oriented displays use a 1400mm x 600mm VESA mounting pattern on the raised portion of the rear surface. Note, this may limit access to removable input cover. Mounting brackets must not block airflow of intake fans. When installing mounting brackets, use a spacer with a minimum height of 0.75"...
  • Page 13: Maximum Tilt

    Maximum Tilt For portrait or landscape oriented displays, the maximum downward tilt is 15°. For other orientations, consult Peerless-AV. 15° 15° 2" (51mm) 2" (51mm) Minimum Minimum LANDSCAPE PORTRAIT 2022-07-11 #:180-9156-1...
  • Page 14 Minimum Airflow Spacing Consult Peerless-AV for minimum spacing when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. Please consult Peerless-AV for additional guidance.
  • Page 15 Minimum Airflow Spacing Consult Peerless-AV for minimum spacing when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. Please consult Peerless-AV for additional guidance.
  • Page 16 Airflow, Venting and Heat Dissipation Consult Peerless-AV when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. Please consult Peerless-AV for additional guidance.
  • Page 17 Airflow, Venting and Heat Dissipation Consult Peerless-AV when installing two or more adjacent displays. Note: These are minimum requirements. Internal heat sources due to additional equipment, external heat sources and high solar loads may require additional spacing and airflow. Please consult Peerless-AV for additional guidance.
  • Page 18 Routing Cables in the Display Use only high-quality, shielded, grounded cables. media device drip/service loop media device drip/service loop media device drip/service loop 2022-07-11 #:180-9156-1...
  • Page 19: Replacing Cord Cover

    Replacing Cord Cover Run power and signal cords; separate cables to prevent unwanted interference (see image 1 below). Replace the rear cover plate using the ten screws on the rear cover plate using drill with torx bit or torx screwdriver to secure. Ensure the rear cover plate is fully compressed to the back of the display.
  • Page 20: Cleaning The Screen

    Cleaning the Screen Do not rub or strike the screen with anything hard as this may scratch, mark, or even damage the screen permanently. Unplug the power cord before cleaning the screen. Do not spray water on the display in excess of 100kPa (14.5 PSI).
  • Page 21 This page intentionally left blank. 2022-07-11 #:180-9156-1...
  • Page 22 This page intentionally left blank. 2022-07-11 #:180-9156-1...
  • Page 23 This page intentionally left blank. 2022-07-11 #:180-9156-1...
  • Page 24 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
