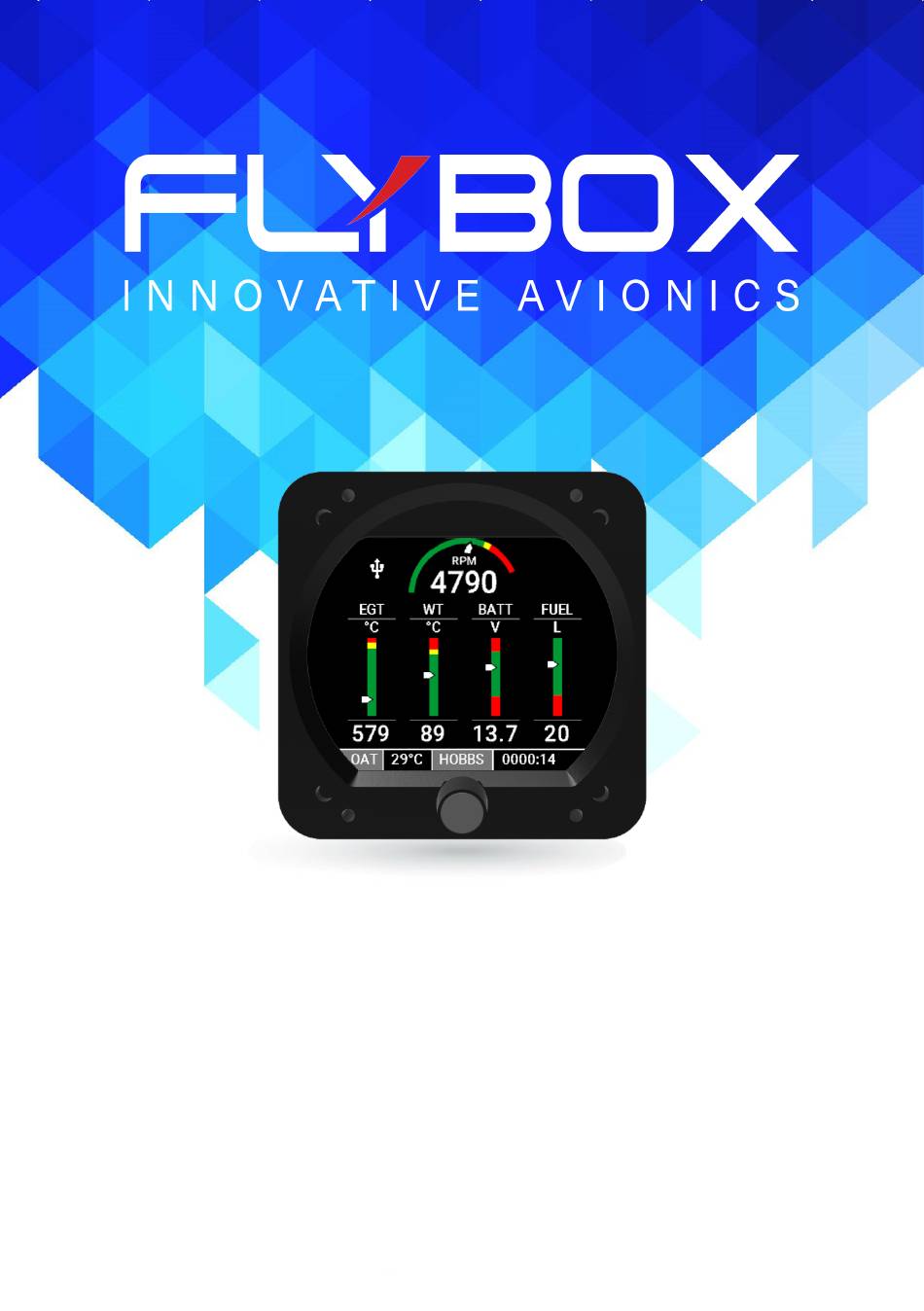

  • Page 1 My-EMS CRX For Cosmos 300 and Rotax 582 Engine Monitoring System User Manual...
  • Page 2 This product is not TSO’d and cannot be installed into traditional FAA Part 23 and similarly Type- Certificate Aircraft Document U2024MYEMSCRX Revision#1.2, 05/2024 For firmware version 1.1.0 This booklet is suitable for printing in A5 format. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 3 SECTIONS IMPORTANT NOTICE AND WARNINGS INDEX INTRODUCTION INSTRUMENTS CONFIGURATION OPERATING INSTRUCTIONS TECHNICAL SPECIFICATIONS WARRANTY DISCLAIMER My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 4 WARNING: Used to indicate a dangerous situation that can cause personal injury or death if the instruction is disregarded. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 5 Therefore, we strongly suggest to double check all of the electronic instruments available on the aircraft and to turn them on to verify they function correctly. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 6 WARNING: Installation configuration this instrument should only be carried out by trained and authorised professionals. See the Flyboxavionics website for a list of authorised installers. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 7 Installation and user Manual, Safety Instructions and Warning Booklet, do not install this instrument in his aircraft. NOTE: Flybox Avionics reserves the right to change or improve its products as well as terms, conditions, and notices under which their products are offered without prior notice.

  • Page 8: Table Of Contents

    1.3.5 - Firmware upgrade ..........39 1.3.6 - Backup & Restore ..........40 1.3.7 - Special ..............41 1.3.7.1 - Hobbs meters editor ........43 2.0 - Using My-EMS ...............44 2.1 - Engine data ..............44 My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 9 Index INDEX 2.2 - GPS data ................46 3.0 - Alarms ................48 4.0 - Datalogger ..............49 5.0 - Technical specifications ..........52 My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 10: Primary Action After Installation

    Another verification is, in case of low remaining quantity (i.e. 4~5 liters), drain and measure it. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 11 Introduction Page intentionally empty My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 12: Panel Indicators And Commands

    1.2 - Panel indicators and commands Knob with push button The knob is used to scroll between different screens and navigate menus. The knob button allows different actions within the menus. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 13: Instrument Configuration

    , this means that the selected item is editable. • Turn the knob to change the value, then push again the knob button to confirm the selected value. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 14 NOTE: in all menus and submenus there is an EXIT item that allows instant return to the monitoring pages. NOTE: in the submenus, the BACK item returns to the parent menu. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 15: Common Items Description

    Output: you can choose to enable or disable the alarm output on My-EMS, can be ON or OFF (default OFF). • Delay: set how many second the condition must persist before trigger the alarm (default 0.5). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 16: Main Menu

    Firmware Upgrade: start the firmware update function from USB flash drive. • Backup & Restore: starts the function of saving/ restoring parameters to/from USB flash drive. • Special: enter the “Special Functions” menu. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 17: Gauges Menu

    It can be set as SWITCH (default) or as TONE generator. NOTE: To connect the output in TONE mode to an audio input, Audio Tone adapter cod.105899 is required. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 18: Rpm

    It has a range from 1000 - 6000 (default 4000). Thresholds Assigns the outer limits of the indicator and the ranges of the various thresholds (eg. yellow range, red range). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 19 Warning: as in chapter 1.3.1.1 - Common items description • Output: as in chapter 1.3.1.1 - Common items description • Delay: as in chapter 1.3.1.1 - Common items description My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 20: Egt

    Option available are °C or °F (default °C) Thresholds Assigns the outer limits of the indicator and the ranges of the various thresholds (eg. yellow range, red range). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 21 Warning: as in chapter 1.3.1.1 - Common items description • Output: as in chapter 1.3.1.1 - Common items description • Delay: as in chapter 1.3.1.1 - Common items description My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 22: Wt (Water Temperature)

    Option available are °C or °F (default °C) Thresholds Assigns the outer limits of the indicator and the ranges of the various thresholds (eg yellow range, red range). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 23 Warning: as in chapter 1.3.1.1 - Common items description • Output: as in chapter 1.3.1.1 - Common items description • Delay: as in chapter 1.3.1.1 - Common items description usg or imp (default L). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 24: Oat

    Option available are °C or °F (default °C) 1.3.3.5 - Fuel level • Unit: as in chapter 1.3.1.1 - Common items description. Option available are L, usg or imp (default My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 25 It has a range from 1 to 5L (default 3L). • Min. Incr (mV): minimum thresold to detect fuel sensor movements (default 20, it is preferable to leave this value unchanged). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 26 Calibration is divided into several calibration steps, in each step a predetermined amount of fuel (x liters) will be added to the tank. After confirming the calibration function, the screen above will appears. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 27 Done to proceed to the next step. At this step the actual fuel is 0 L. After Done has been selected, the microcontroller will My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 28 Step 3: Wait for the new mV indication to be stable and proceed to the next step by pressing Done. If there are no problems in your system, what you’ll see is the following. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 29 - As you drain fuel to a filled tank it takes a certain amount of fuel before the fuel sensor starts moving from the top. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 30 If one of these conditions occurs during the calibration, My-EMS notices that the fuel sensor doesn't produce an electrical change and asks the user if fuel is already added for that calibration step: My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 31 If you are sure to have already added the fuel, confirm on YES otherwise press NO to go back to previous calibration step. NOTE: Consider that all fuel additions that will not give any sensor movement will not be counted. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 32 Warning: as in chapter 1.3.1.1 - Common items description • Output: as in chapter 1.3.1.1 - Common items description • Delay: as in chapter 1.3.1.1 - Common items description My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 33: Voltmeter

    Filter: as in chapter 1.3.1.1 - Common items description. Thresholds Assigns the outer limits of the indicator and the ranges of the various thresholds (eg yellow range, red range). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 34 Lower Warning: as in chapter 1.3.1.1 - Common items description. • Output: as in chapter 1.3.1.1 - Common items description. • Delay: as in chapter 1.3.1.1 - Common items description. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 35: Gps

    Time zone: change the time zone value from -12 to +13. • Show GS Main page: enable or disable the visualization of the Ground speed indication in the main page. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 36 GS Unit: sets the desired unit for the ground speed. Available options are km/h, kts, mph (default km/h). • Altitude Unit: sets the desired unit for the altitude indication. Available options are meters or feet (default meters). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 37 Instrument configuration Page intentionally empty My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 38: Backlight

    Min light(%): choose minimal backlighting when the environment is dark. It has a range from 1 to 20 (default 1). NOTE: Auto Mode requires installation of the Wired Ambient Light Sensor cod. 105800. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 39: Firmware Upgrade

    2. Insert the USB 2.0 flash drive with the upgrade files to the rear connector. 3. If file is correctly recognized the upgrade list will populate as in the next image. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 40: Backup & Restore

    USB 2.0 flash drive. The filename of the backup is MY_EMS_CRX_xxxxxxxx. par where xxxxxxxx is the ID number of the device (eg. MY_EMS_CRX_123456AB.par) My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 41: Special

    • Restore Defaults: returns all settings to their default state • Erase Fuel Level Calib: clears tank calibrations. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 42 Instrument configuration • Reset Engine Peaks: erase the engine's peak rpm. • Edit Hobbs Meters: opens the engine hours edit screen (chapter 1.3.7.1 - Hobbs meters editor). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 43: Hobbs Meters Editor

    5. Repeat from step #2 if you want to edit other ranges. 6. Hold the button for 3s to close the page and save the new values. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 44: Using My-Ems

    Layout for Rotax 582 Available parameters are: • Engine rpm: graphical and numerical indication. • EGT: graphical and numerical indication, expressed in °C or °F depending on user settings. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 45 GPS has been enabled in settings and the visibility of the value has been set to YES (chapter 1.3.3.7 - GPS). If the value shows “- - - -” means that the GPS data is not valid. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 46: Gps Data

    • GS: ground speed from GPS. The unit can be selected in the GPS menu (chapter 1.3.3.7 - GPS). If the indication is not present the value will be replaced by My-EMS CRX User Manual, Safety Instructions and Warning Booklet...
  • Page 47 (until acknownledge or return to a normal condition) replacing engine hour indication. CAUTION type alarms will be indicated with yellow text while WARNING alarms will be indicated with red text. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 48: Alarms

    In case of multiple alarms these will be displayed within the annunciator panel sequentially. If "XXX" is indicated next to the gauge, it means the sensor/probe is disconnected. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 49: Datalogger

    NOTE: date and utc are only available if a GPS has been connected and a fix has been made. If this information is not available instead of utc time the engine hours will be displayed. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 50 View mode allows you to view charts of the data recorded in the selected flight. The interface will look like the image below: 1. Date and time: date and time referred to the cursor position (5). My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 51 The datalogger records all measurements displayed on My-EMS screens. The charts displayed therefore depend on what measurements the user has set in the instruments settings. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...

  • Page 52: Technical Specifications

    CAUTION: Avoid any chemical cleaners or solvents that can damage the display anti-reflective coating or plastic components. Do not use cleaners containing ammonia. Do not spray water or cleaner directly onto the display. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 53 One Year Warranty: Product support and warranty information can be found at www.flyboxavionics.it. Flybox® warrants this Product to be free from defects in materials and workmanship for 12 months from date of delivery. The inactivity of the Products determined by periods of repair does not involve the extension of the warranty period.
  • Page 54 Use of this product is unauthorized in any jurisdiction that does not give effect to all provisions of these terms and conditions, including without limitation this paragraph. My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
  • Page 55 WARNING: All photos, data, drawings, instruments layouts, technical solutions and data representation you find in this document or watching at FLYBOX® instruments working and/or you can access by means of any other media, including web sites, are sole property of MICROEL s.r.l., cannot be copied or imitate without a written permission of MICROEL s.r.l.
  • Page 56 Flybox® is a registred brand of Microel s.r.l.- Italy www.flyboxavionics.it MICROEL s.r.l. Via Mortara 192-194 27038 Robbio (PV) - ITALY Tel +39-0384-670602 - Fax +39-0384-671830 My-EMS CRX User Manual, Safety Instructions and Warning Booklet REV 1.2...
