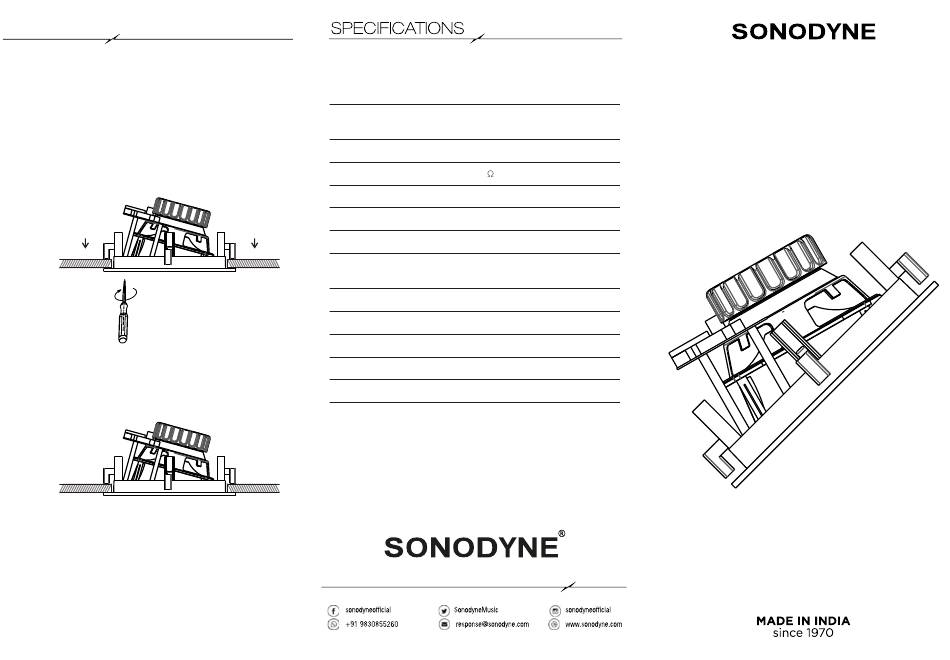

MOUNTING
Tighten the 4 adjusting screws one by one. (Tightening the
STEP 5
screws will pull the dog-ears towards the ceiling till it
makes firm contact. While sliding the speaker through the
cut-out, make sure the dog ears are not projecting
outwards.)
WARNING: Do not over-tighten the screws. Care must be
taken while tightening so that the drive unit does not get
damaged
FIG. 5
Fit the grill back on the speaker
STEP 6
FIG. 6
DESCRIPTION
2 way in ceiling speaker
TRANSDUCER
1 x 6.5" coaxial speaker
COMPLEMENTS
MAX SPL
100dB
NOMINAL IMPEDANCE
8
SENSITIVITY 1W/1M
90dB (half space)
FREQUENCY RESPONSE
70Hz ~ 20kHz (-3dB)
FREQUENCY RANGE
60Hz ~ 21kHz (-10dB)
RECOMMENDED
50 ~ 100W
AMPLIFIER POWER
COLOURS
White
OUTER DIMENSIONS
170mm x 248mm (Height x diameter)
WALL/CEILING CUT-OUT
212mm
NET WEIGHT
1.9kg
GROSS WEIGHT
2.2kg
MOUNTING
Twist-lock type
Due to continuous improvements, all specifications are subject to change
SONODYNE, INDIA • HO: 98NB Block E New Alipore, Kolkata 700053, India
SIC 3460
in-ceiling speaker • owners manual
