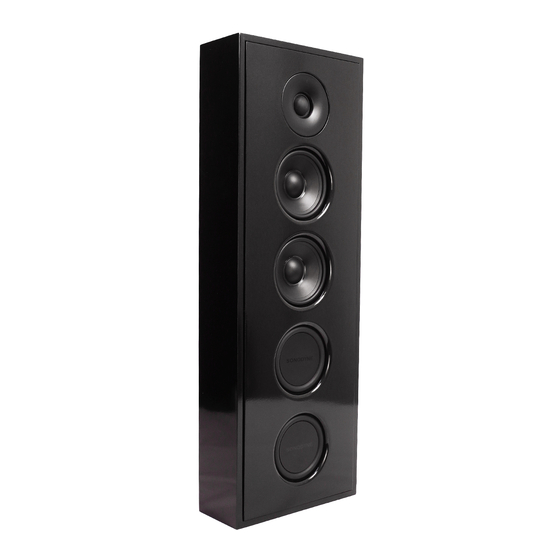

Summary of Contents for Sonodyne IWO Series

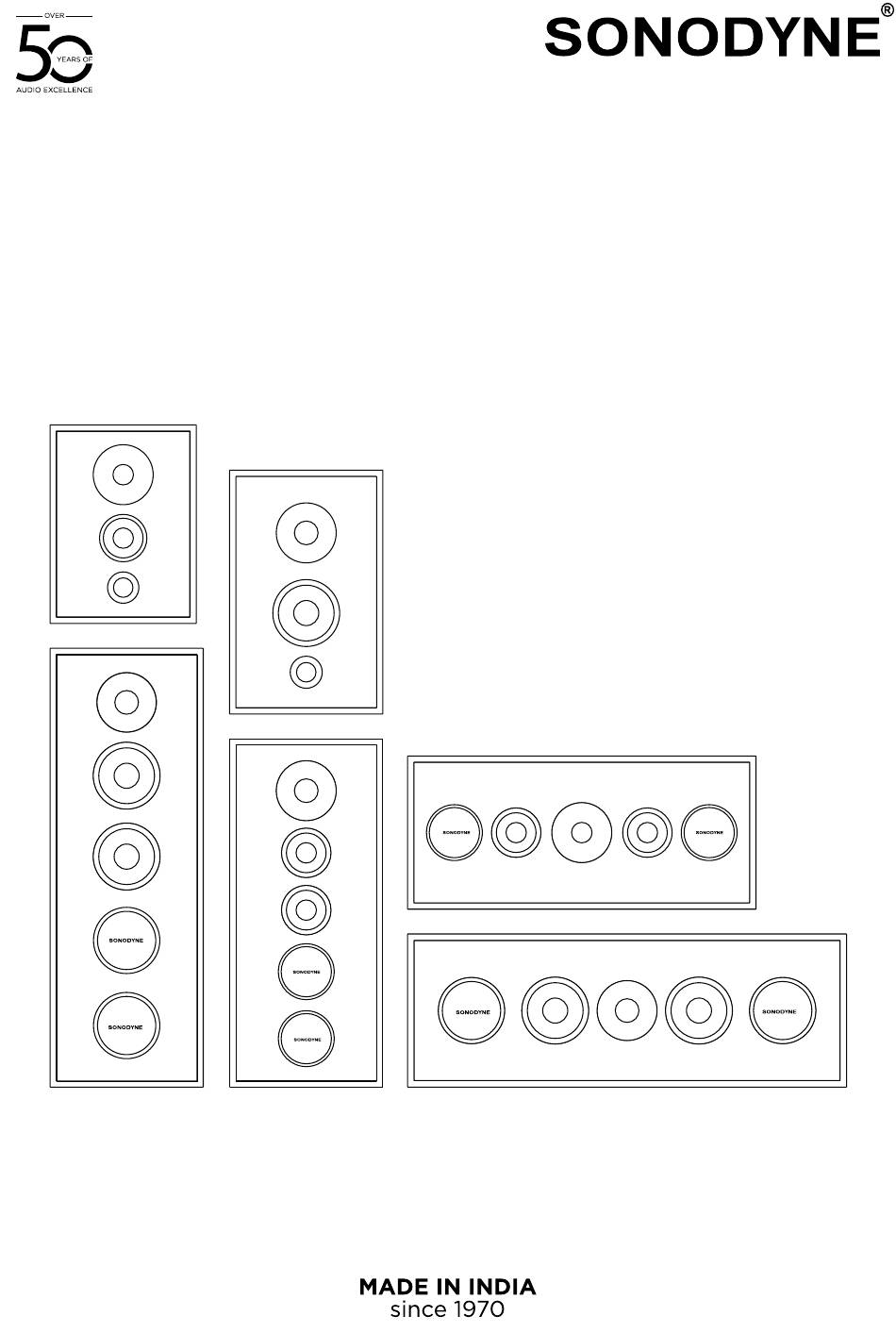

- Page 1 passive speakers I owners manual...
-
Page 2: Table Of Contents
INTRODUCTION page 1 UNPACKING page 1 AMPLIFIER SELECTION page 2 WIRE CONNECTIONS page 2 LINE DRAWINGS page 3 ~ 5 CONNECTION DIAGRAMS page 6 ~ 7 SPEAKER PLACEMENT page 8 ON WALL MOUNTING page 9 ~ 11 IN WALL MOUNTING page 12 ~ 17 ACOUSTICS OF THE LISTENING ROOM page 18... -
Page 3: Introduction
What’s more, you can even flush-mount on your wall using the ingenious wall- mounting kit (optional). As far as performance is concerned, the IWO series ticks all the right boxes - build quality, design, frequency and dynamic bandwidth, and detailing. Be it for stereo or multichannel audio, you will find a suitable solution from this range. -
Page 4: Amplifier Selection
AMPLIFIER SELECTION We recommend using amplifiers whose continuous (rms) power per channel is greater than or equal to that the speaker handles. Recommended power ratings of amplifier are given under specifications. Please see page 20 & 21. In the event that the power is greater, care must be taken to avoid playing music at excessively loud levels and thus damage the speaker. -
Page 5: Line Drawings Page 3
IWO 600 Series • page 3... - Page 6 IWO 600 Series • page 4...
- Page 7 IWO 600 Series • page 5...
-
Page 8: Connection Diagrams Page 6
6a. CONNECTING IWO 501, 502, 611 and 612 The following figure shows the IWO 501, 502, 611 and 612 connected to a stereo setup. 6b. CONNECTING IWO 501, 502, 611 and 612 connected as the front left and front right speakers in a 5.1 system IWO 600 Series •... - Page 9 6c. CONNECTING IWO 621 and 622 The following figure shows the IWO 621 and 622 connected as the center speaker in a 5.1 (or larger multichannel) system 6d. CONNECTING ADDITIONAL IWO 501, 502, 611 & 612 AS SURROUND SPEAKERS The following figure shows 2 x IWO 501,502,611 and 612 connected as the surround speakers in a 5.1 system IWO 600 Series •...
-
Page 10: Speaker Placement
7a. PLACING STEREO OR FRONT LEFT AND RIGHT SPEAKERS IN A MULTI-CHANNEL SYSTEM Finding the right position for the IWO 501, 502, 611 and 612 are also very important. The following should aid in locating that optimal position: Ensure that there are no objects between the speaker and the listener in general. Avoid placing the loudspeakers near corners which will boost the low frequency level but at the same time create reflections in the midrange and treble area, which results in a deterioration of the stereo image. -
Page 11: On Wall Mounting
IWO 501 and 502 The IWO 501 and 502 have a key-hole type bracket at the rear, right in the middle, near the top. You can use this to hang the speaker on the wall, like a picture frame. Please see figure below. - Page 12 IWO 611 and 612 The IWO 611 and 612 have 2 such key-hole brackets, placed vertically on the rear of the cabinet and at the horizontal center. Fix 2 screws vertically on the wall at a center distance as follows •...
- Page 13 IWO 621 and 622 These cabinets are supposed to be mounted vertically. Two key-hole type brackets are provided on the rear, in the same horizontal line on which the cabinet is hung. Fix 2 screws horizontally on the wall at a center distance as follows •...
-
Page 14: In Wall Mounting Page 12
Each IWO speaker is provided with mounting inserts on the rear that allow them to be flush-mounted on a wall with the help of the optional in-wall mounting kit. First make a cut-out on the dry wall for the IWO speakers as shown in the figure below. IWO 501 IWO 502 IWO 611... - Page 15 IWO 621 IWO 622 Next fit the in-wall mounting kit to the speakers. Proceed as follows • Detach the magnetic grill and put the cabinet face down on a table. Use a foam or similar substance so that the cabinet front does not develop any scratch. Position the kit so that the frame of the kit slides into the cabinet till the metal tongues of the kit come to rest on the cabinet back.
- Page 16 FIG. 1 IWO 600 Series • page 14...
- Page 17 FIG. 2 IWO 600 Series • page 15...
- Page 18 FIG. 3 FIG. 4 IWO 600 Series • page 16...
- Page 19 FIG. 5 IWO 600 Series • page 17...
-
Page 20: Acoustics Of The Listening Room
(like those given above) CARE & MAINTENANCE All Sonodyne loudspeakers of the Sonus range are manufactured with modern and thoroughly tested materials, which normally do not require any maintenance other than once in a while opening the front grille and vacuuming the cloth. If the loudspeaker's cabinet becomes greasy you may clean it by moistening a soft cloth with water and a mild soap to remove the dirt. - Page 21 IWO 501 IWO 502 IWO 611 2 way, bass-reflex 2 way, bass-reflex 2½ way, bass DESIGN on-wall/in-wall on-wall/in-wall reflex on-wall/in- speaker speaker wall speaker ENCLOSURE 2 x 3" woofer TRANSDUCER 3" woofer 4" woofer 1" dome tweeter COMPLEMENTS 1" dome tweeter 1"...
-
Page 22: Specifications Page 20
IWO 612 IWO 621 IWO 622 2 way, MTM, 2 way, MTM, 2½ way, bass bass-reflex, bass-reflex, DESIGN reflex on-wall/ on-wall /in-wall, on-wall /in-wall, in-wall speaker center speaker center speaker ENCLOSURE 2 x 4" woofer 2 x 3" woofer 2 x 4" woofer TRANSDUCER 1"... - Page 23 This warranty is only given with respect to faulty workmanship and/ or materials and does not cover misuse or consequential damage. Claims under the warranty will be considered only if the product is returned to an authorised SONODYNE Service Centre directly, or through an authorized reseller.
-
Page 24: Warranty Information
If you have anything less than a 5 star experience, please contact us at response@sonodyne.com and we will make it right SONODYNE, India • H.O.: 98 NB Block E New Alipore, Kolkata 700053 sonodyneofficial +91 9830855260 sonodyneofficial 1 800 31 31 035 response@sonodyne.com...
