  • Page 1 PM SERIES V2 2 way active monitor I owners manual www.sonodyne.com...

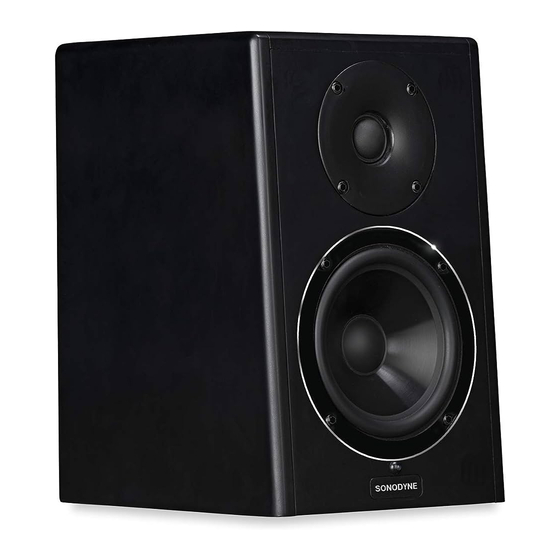

  • Page 2 INTRODUCTION • SAFETY • UNPACKING FIG. 1 INTRODUCTION Congratulations on your purchase of the PM V2 near field active studio monitor. The PM V2 has all the makings of a truthful reference device. The high grade transducers, the heavily-braced MDF rigid enclosure, the active amplification, result in sound that is neutral and transparent.

  • Page 3: Controls And Features

    CONTROLS & FEATURES CONTROLS & FEATURES FRONT PANEL ROOM COMPENSATION SWITCHES BASS ROLL-OFF: Switch 1 when ON introduces a low frequency roll-off into the response curve. Power Indicator: This lights up when power is ON For many applications, removal of deep bass content allows you to raise the overall output level, permitting LOUD mixing.
  • Page 4 FIG. 3 FIG. 4 PM 50 V2 PM 50 V2 PM SERIES V2 page 5 PM SERIES V2 page 6...
  • Page 5 FIG. 5 FIG. 6 PM 100 V2 PM 100 V2 PM SERIES V2 page 7 PM SERIES V2 page 8...

  • Page 6: Operation

    INSTALLATION • FIG. 7 FIG. 8 • FIG. 9 • OPERATION • MAINTENANCE INSTALLATION FIG. 8 FIG. 9 ROOM PLACEMENT The PM V2 has a wide variety of placement options. Shown in Fig. 8 is a typical stereo setup for near field monitoring.
  • Page 7 PM 50V2 SPECIFICATIONS PM 100V2 SPECIFICATIONS SYSTEM SYSTEM DESCRIPTION 2-way active monitor DESCRIPTION 2-way active monitor LF: 5" injection-moulded PP cone woofer LF: 6" injection-moulded PP cone woofer TRANSDUCER COMPLEMENTS TRANSDUCER COMPLEMENTS HF: 26mm silk-dome neodymium magnet tweeter HF: 26mm silk-dome neodymium magnet tweeter ENCLOSURE TYPE Vented, through rear-firing aerodynamic port ENCLOSURE TYPE...

  • Page 8: Troubleshooting

    NOTES TROUBLESHOOTING SYMPTOM Device remains 'OFF’ Make sure that the power cord is securely seated in the IEC socket and plugged all the way into the AC outlet. Make sure that the AC outlet is live (check with tester). Remove power cord and check the Fuse. If blown, then replace with exact type and rating.
