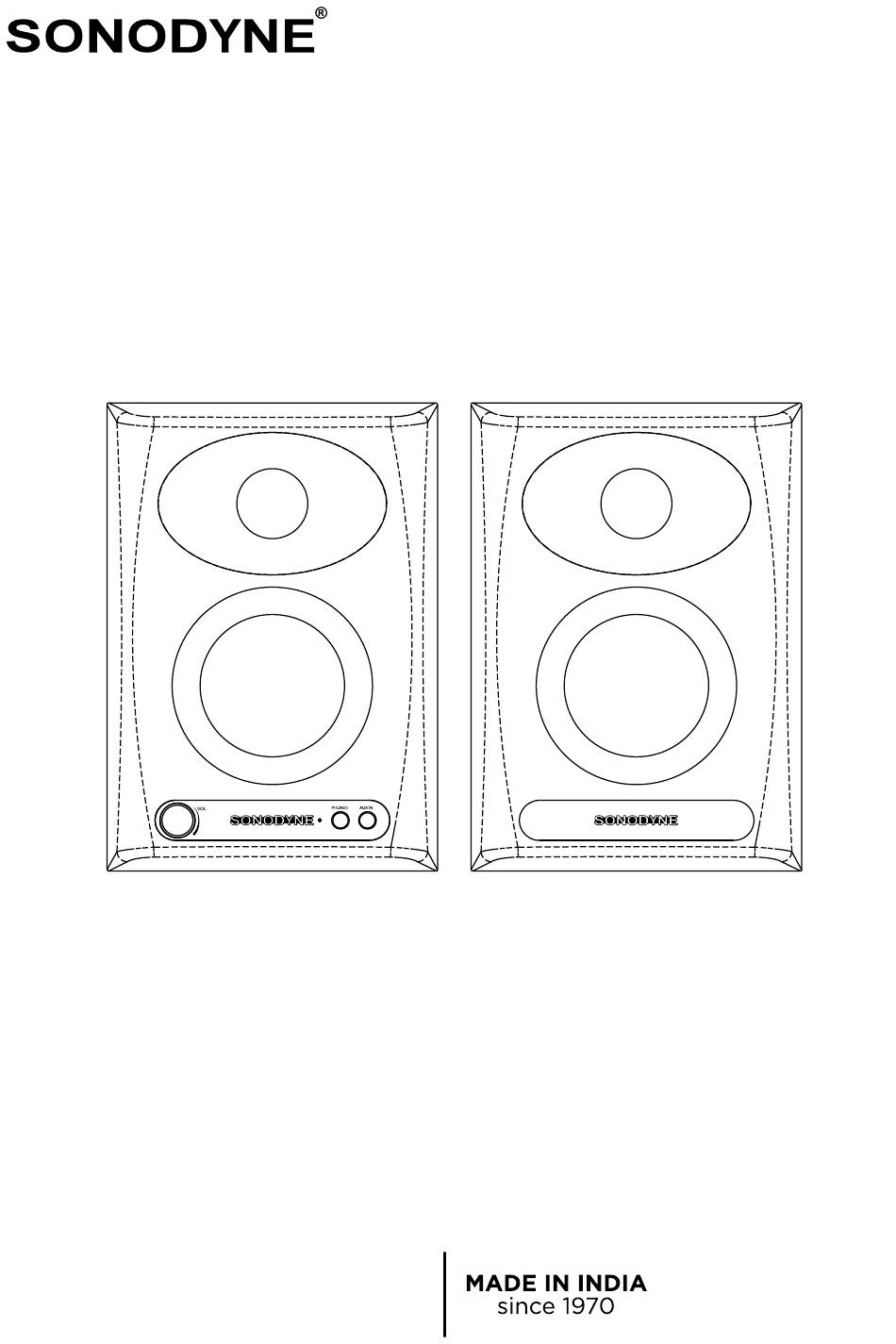

- Page 1 PM 4040 active speaker system I owners manual www.sonodyne.com...

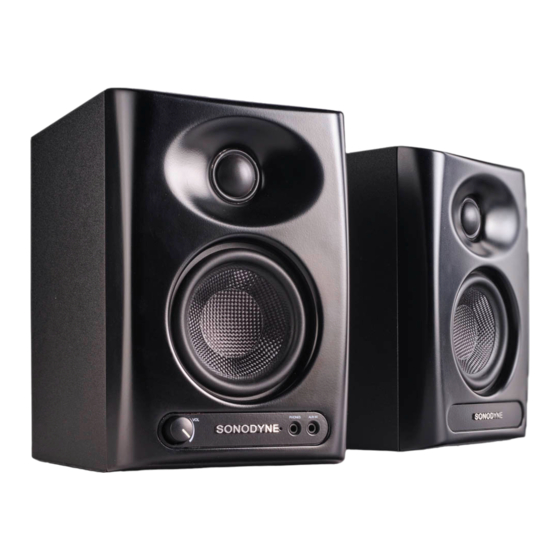

- Page 2 INTRODUCTION • SAFETY • UNPACKING INTRODUCTION Congratulations on your purchase of the PM 4040 speaker system. The PM 4040 set comprises an active and passive monitor, wired as left speaker and right speaker. It uses high grade transducers - a 4" glass- fiber cone woofer, and a 25mm neodymium magnet dome tweeter with an elliptical waveguide built into the front panel, housed in a bass-reflex type rigid MDF enclosure.
- Page 3 FIG. 1 2 3 4 PM 4040 page 2...
-
Page 4: Controls And Features
IEC AC socket. OVER-VOLTAGE PROTECT LED The PM 4040 has a protection feature which automatically shuts off the power when the mains voltage crosses an upper limit. In such case, this LED will glow. Normal operation will resume when the over-voltage condition is removed. -
Page 5: Room Placement
The monitors should be angled to directly face the listener. The center of the high frequency transducer should be on-axis with the ear level of the listener. Keep the PM 4040 at least 2" away from rear wall so as... -
Page 6: Operation
Connect the supplied AC power cord to the IEC socket at rear panel. Keep the power switch at OFF position. Keep the volume control on PM4040 at minimum Switch on your source. Switch on PM 4040. The blue power LED will light up. Adjust the volume to get the desired listening level. -
Page 7: Specifications
FINISH Black matt DIMENSIONS (HxWxD) PRODUCT 230mm x 160mm x 190mm SHIPPING 285mm x 400mm x 245mm NET WEIGHT PASSIVE SPEAKER 2.6kg ACTIVE SPEAKER 3.2kg NOTE: Due to continuous improvements, all specifications are subject to change PM 4040 page 6... - Page 8 HORIZONTAL POLAR PLOTS CurveF reqB 1.25K 1.77K 2.50K -180 0 Deg -150 -120 CurveF reqB CurveF reqB 3.54K 10.00K 5.00K 14.14K 7.07K 20.00K 14.2 11.5 -180 0 Deg -180 0 Deg -150 -150 -120 -120 PM 4040 page 7...
- Page 9 VERTICAL POLAR PLOTS CurveF reqB 1.25K 1.77K 2.50K -180 0 Deg -150 -120 CurveF reqB CurveF reqB 3.54K 10.00K 5.00K 14.14K 7.07K 20.00K 10.3 10.1 -180 0 Deg -180 0 Deg -150 -150 -120 -120 PM 4040 page 8...
- Page 10 ON-AXIS FREQUENCY RESPONSE PM 4040 page 9...
-
Page 11: Warranty Information
(including parts and labour). This warranty is only given with respect to faulty workmanship and/ or materials and does not cover misuse or consequential damage. Claims under the warranty will be considered only if the product is returned to an authorised SONODYNE Service Centre directly, or through an authorized reseller. - Page 12 If you have anything less than a 5 star experience, please contact us at response@sonodyne.com and we will make it right SONODYNE, India • H.O.: 98 NB Block E New Alipore, Kolkata 700053 sonodyneofficial +91 9830855260 sonodyneofficial 1 800 31 31 035 response@sonodyne.com...
