Turtle Beach Stealth Ultra Manual

INTRODUCTION


PLEASE MAKE SURE YOUR HEADSET IS UPDATED WITH THE LATEST FIRMWARE

Download the Swarm II app for to update your headset to the latest firmware and to customize settings.

Available for Android,
www.apple.com

iOS,
play.google.com

and Windows.

PRODUCT COMPATIBILITY

  • Xbox Series X|S & Xbox One
  • Windows 10/11
  • Android Smart Device

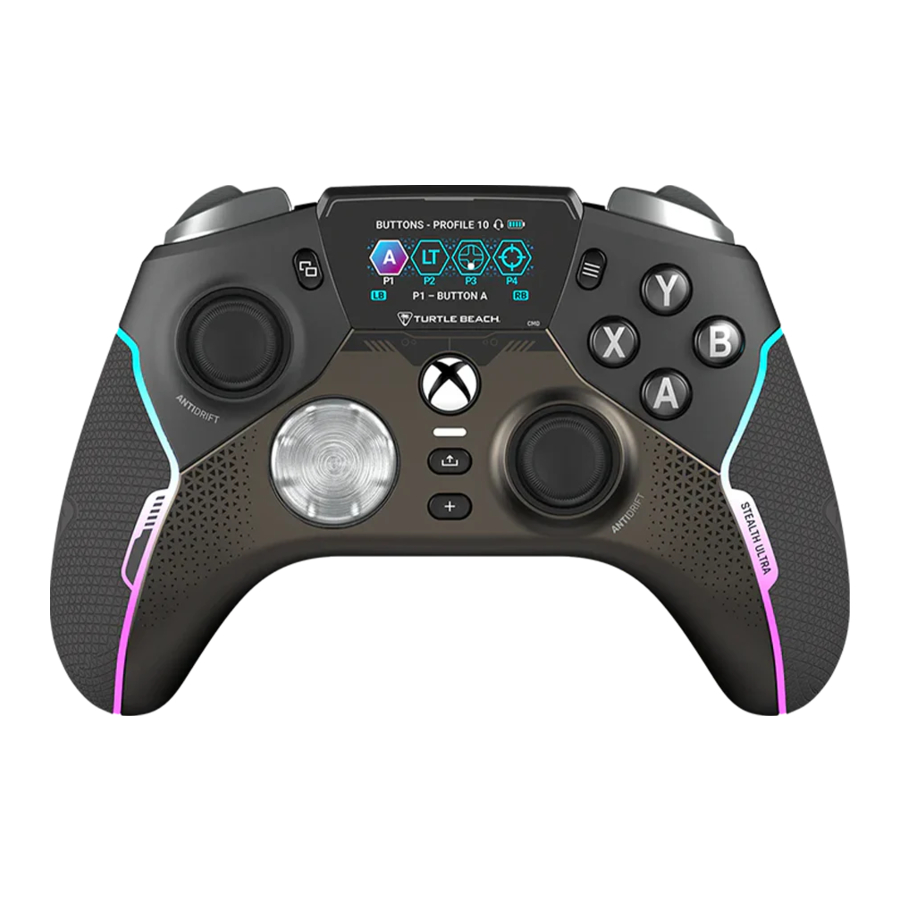

PACKAGE CONTENTS & PRODUCT TOUR

PACKAGE CONTENTS & PRODUCT TOUR

  1. Adjustable Trigger Locks
  2. USB Cable Port
  3. Command Display
  4. Guide Button
    1. Press 2s - Power On
    2. Press 6s - Power Off
  5. Connection LED
  6. Input Focus Button
  7. Headset Port
  8. Mappable Action Buttons
  9. Rapid Charge Dock
  10. USB-C Cable Port
  11. Transmitter USB Port
  12. Wireless Transmitter
  13. Transmitter Connection LED and Pairing Button
  14. 10'/3m USB-A to USB-C Cable
  15. Thumbstick Grip Caps
  16. Carry Case

SETUP FOR XBOX

SETUP FOR XBOX

  1. Plug the USB-C end of the cable into the Charge Dock.
  2. Plug the USB-A end of that cable into the Xbox console.
  3. Press the Power button on the Xbox console; the Xbox's LED will illuminate white.
  4. Make sure the transmitter is plugged securely into the Charge Dock.
  5. Press the controller's Guide button (Xbox logo button) for two seconds to power on the Stealth Ultra controller. Pairing will start automatically. First, the LEDs on the controller and on the transmitter will flash, indicating the controller and transmitter are searching for each other. Then the LED on the transmitter and headset will light up solid to indicate a successful pairing. (If the controller and transmitter aren't pairing, click here: Stealth Ultra Pairing Instructions.)
  6. If you are using a wired headset with the Stealth Ultra, plug the headset into the headset jack on the controller, and then adjust the Game Audio, Chat Audio, and Mic Input Levels within the controller's Command Display (see "COMMAND DISPLAY DASHBOARD" below).

SETUP FOR PC

SETUP FOR PC

  1. Plug the USB-C end of the cable into the Charge Dock.
  2. Plug the USB-A end of that cable into the computer.
  3. Make sure the computer is powered on.
  4. Make sure the transmitter is plugged securely into the Charge Dock.
  5. Press the controller's Guide button (Xbox logo button) for two seconds to power on the Stealth Ultra controller. Pairing will start automatically. First, the LEDs on the controller and on the transmitter will flash, indicating the controller and transmitter are searching for each other. Then the LED on the transmitter and headset will light up solid to indicate a successful pairing. (If the controller and transmitter aren't pairing, click here: Stealth Ultra Pairing Instructions.)
  6. If you are using a wired headset with the Stealth Ultra, plug the headset into the headset jack on the controller, and then adjust the Game Audio, Chat Audio, and Mic Input Levels within the controller's Command Display (see "COMMAND DISPLAY DASHBOARD" below).

COMMAND DISPLAY MAIN MENU

Make in-depth adjustments via the Main Menu on your Stealth Ultra controller.
COMMAND DISPLAY MAIN MENU

  1. Press the + button on your controller to switch Focus to the Command Display, and then press the Y button to access the main menu.
    1. Open Main Menu
    2. Previous Menu Item
    3. Next Menu Item
    4. Adjust Feature
    5. Back/Cancel
    6. Select/Accept
  2. Press the + button again to return focus to the game.

COMMAND DISPLAY DASHBOARD

Make quick adjustments via the Dashboard.
COMMAND DISPLAY DASHBOARD

  1. Press the + button on your controller to switch Focus to the Command Display.
    1. Profile
    2. Profile +
    3. Open Main Menu
    4. EQ Cycle
    5. Social Feed
    6. Mic Mute
    7. Chat Mix +
    8. Chat Mix -
    9. Volume +
    10. Volume -
  2. Press the + button again to return focus to the game.

CONTROL CENTER 2

Search for Stealth Ultra and Control Center 2 app on the Microsoft Store, Play Store, and App Store. Keep your controller up to date and customize performance settings on Xbox and Windows. Tune onboard memory profiles and configure social notifications on Android and iOS.

ON XBOX/PC

CONTROL CENTER 2 - ON XBOX/PC

  1. Connect the USB-C to USB-A cable to the charging dock and a computer or Xbox.
  2. Power the controller on.
  3. Open the Control Center 2 app.

ON MOBILE

CONTROL CENTER 2 - ON MOBILE

  1. Initiate App Link Pairing from the Command Display main menu.
  2. Pair to your mobile smart device.
  3. Launch the Control Center 2 app on that device.

CHARGING

When battery level is low, the controller LEDs will flash red.

CHARGE VIA DOCK

Place the controller in the Charge Dock, making sure the controller is properly seated in the dock itself.
The controller LEDs will turn green when the controller is fully charged.
CHARGING - CHARGE VIA DOCK

PLAY & CHARGE

Plug the controller into the Xbox console or computer with the included USB-C to USB-A cable. In this mode, the controller will function as a wired device.
CHARGING - PLAY & CHARGE

Need further assistance?

Get in touch with our Tech Support team: https://www.turtlebeach.com/contactsupport
