Turtle Beach RECON CLOUD - Controller Manual

COMPATIBILITY

	WIRELESS	WIRED
Connectivity	Bluetooth® Low Energy*	10' / 3m USB Cable
Platforms	Android, Windows*	Xbox, Windows
Rear Buttons
Pro-Aim™
Audio Features
Vibration Feedback

CONTENTS

CONTROLS

SETUP FOR BLUETOOTH^®

1. SLIDE MODE SWITCH

2. PRESS GUIDE BUTTON

3. PRESS PAIRING BUTTON

4. ENABLE BLUETOOTH AND TAP THE DEVICE ENTRY TO PAIR


WHEN THE CONTROLLER IS CONNECTED WIRELESSLEY TO A MOBILE DEVICE, PRO-AIM^™ AND ACTION BUTTON PROFILES ARE AVAILABLE.

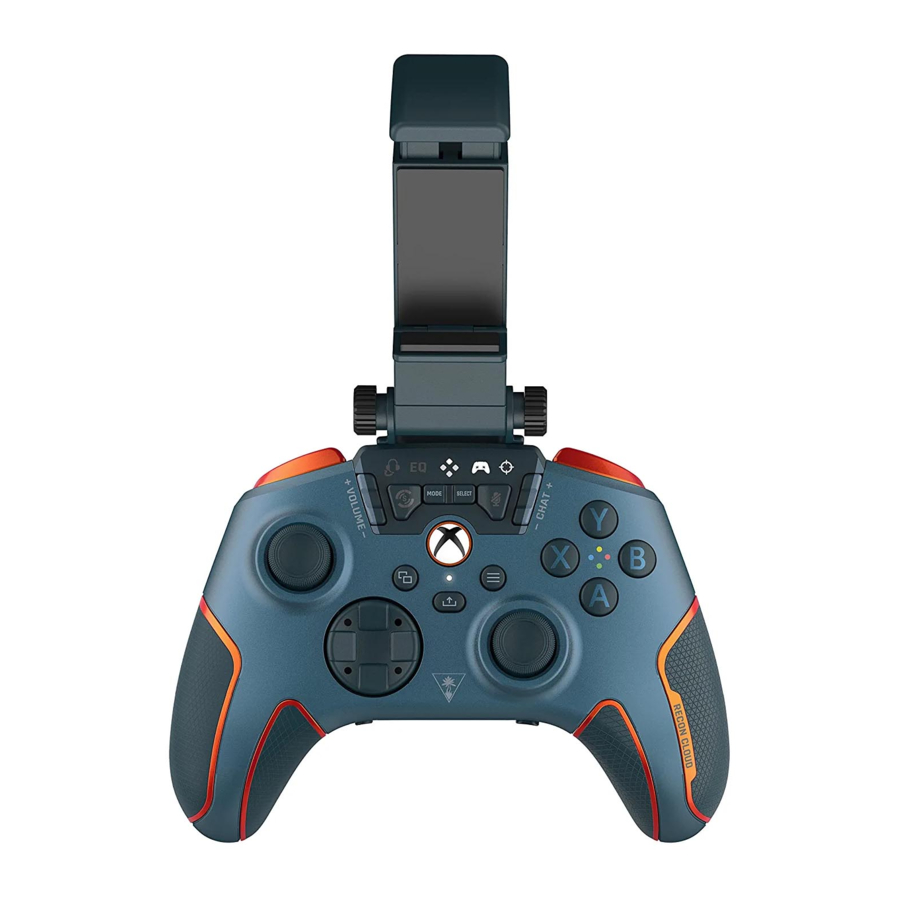

SMARTPHONE CLIP

1. SECURELY ATTACH THE CLIP TO THE CONTROLLER AND ADJUST THE ANGLE

2. ATTACH YOUR PAIRED SMARTPHONE


THE CLIP CAN ALSO BE DETACHED AND USED AS A TABLE TOP SMARTPHONE STAND

SETUP FOR XBOX

WHEN 3.5 MM HEADSET IS CONNECTED, VOLUME, CHAT, MIC MONITORING AND MIC MUTE ALTER THE SETTINGS SLIDERS ON XBOX.

SETUP FOR PC

ALL WIRED AUDIO FEATURES WILL WORK ON PC EXCEPT FOR CHAT MIX WHEN 3.5MM HEADSET IS CONNECTED.

CHARGING RECON CLOUD

CHARGE THE CONTROLLER USING THE SUPPLIED USB-C CABLE. THE CONTROLLER CAN BE CHARGED IN BOTH WIRED AND WIRELESS MODES DURING USE.

DASHBOARD STATUS

PRESS MODE TO CYCLE THROUGH FEATURES

PRESS SELECT TO CYCLE THROUGH FEATURE OPTIONS

	OFF
	OFF*	LOW	MEDIUM	HIGH	MAX.
	N/A	SIGNATURE SOUND*	BASS BOOST	BASS & TREBLE BOOST	VOCAL BOOST
	N/A	PROFILE 1*	PROFILE 2	PROFILE 3	PROFILE 4
	OFF*	LOW	MEDIUM	HIGH	MAX.

*DEFAULT

QUICK-ACTION BUTTON MAPPING

YOU CAN MAP ANY OF THE CONTROLLER BUTTONS TO THE LEFT AND RIGHT QUICK-ACTION BUTTONS

2. SELECT PROFILE 1-4

3. ACTIVATE MAPPING MODE

4. SELECT QUICK-ACTION BUTTON TO CONFIGURE

5. SELECT BUTTON TO ASSIGN

6. SAVE YOUR ASSIGNMENT


YOUR CONTROLLER IS NOW READY TO USE
NEW BUTTON MAPPINGS OVER-RIDE OLD ONES. TO DELETE A BUTTON MAPPING, REPEAT THE PROCESS AND AT STEP 5, PRESS THE QUICK-ACTION BUTTON AGAIN.

PRO-AIM™ FOCUS MODE

WHEN THE PRO-AIM^™ BUTTON IS PRESSED AND HELD, THE SENSITIVITY OF THE RIGHT STICK WILL DECREASE TO THE SET LEVEL. THE HIGHER THE LEVEL, THE GREATER THE REDUCTION IN SENSITIVITY

2. SELECT PRO-AIM™ SENSITIVITY


YOUR CONTROLLER IS NOW READY TO USE
PRO-AIM™ WILL WORK AT THE SAME TIME AS YOUR BUTTON MAPPINGS. EITHER SET PRO-AIM ™ TO OFF OR CLEAR THE MAPPING FROM THE RIGHT QUICK-ACTION BUTTON TO ACHIEVE THE SETUP YOU WANT.

TROUBLESHOOTING

Ensuring audio controls work correctly with your headset.
RECON CLOUD acts as a dedicated audio device on your Xbox. If you have a 3.5 mm headset with integrated controls, set them to the following levels, then use RECON CLOUD to tune your audio experience. Volume should be maximum, Chat mix should be balanced, mic should be active, EQ should be normal or flat response. Wireless headsets with or without integrated controls will not be affected by RECON CLOUD audio controls.

Download Turtle Beach Control Center for feature and performance updates on Windows and Xbox.

Visit turtlebeach.com/support for the latest Tech Support information.
