- Page 1 PILOT’S OPERATING HANDBOOK IMPORTANT: READ BEFORE USING ANY QUESTIONS? TURTLEBEACH.COM/SUPPORT...
- Page 2 CONTENTS VELOCITYONE FLIGHTSTICK 10’/3 M USB-A TO USB-C CABLE M5 COCKPIT FIXING SCREWS X3...
-
Page 3: Table Of Contents

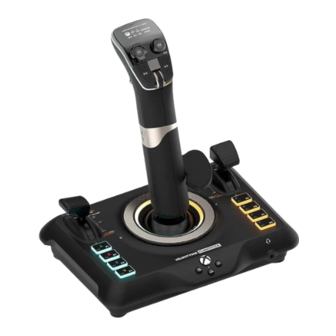

CONTROLS AUXILIARY CONNECTION PORTS Auxiliary connection Hall effect sensing XBOX & PC USB-C CONNECTION PORT ports* stick with rudder twist MULTI-FUNCTION LEVERS WITH Xbox & pc usb-c 2 DETENT BUTTONS Trim wheel connection port DIGITAL 8-WAY POV Multi-function levers with 2 Fmd configurator FLIGHT MANAGEMENT DISPLAY detent buttons... - Page 4 HARDWARE SETUP The wrist rest can be adjusted for left or right-handed use. It can also be raised or lowered to suit your hand size. Remove the securing screw, move the wrist rest into your preferred position and then tighten the screw.
- Page 5 HARDWARE SETUP The throttle heads can be swapped to suit your preferences. Simply pull the throttle heads off and then push back on to the lever until they click.
- Page 6 CONNECTING A HEADSET Connect a 3.5 mm headset for use on Xbox and PC.
- Page 7 FLIGHT MANAGEMENT DISPLAY (FMD) The Flight Management Display (FMD) allows you to configure your controller on-the-fly. It has a dedicated configuration wheel. Rotate the wheel to cycle through menu options and adjust product settings. Click the right side of the wheel [ to select an option or accept a settings change.
- Page 8 CONNECTING TO XBOX...
- Page 9 CONNECTING TO PC The Flightstick will be in Xbox mode by default. To switch input modes, rotate the Configurator Wheel, then right-click the wheel to select Input Mode. Rotate the wheel again to select PC, and then click the wheel to set your input mode. The mode will be stored in memory for next time you use the controller.
-
Page 10: Xbox Navigation
XBOX NAVIGATION You can navigate your Xbox system using the controls on the Flightstick. D-PAD Select menu items. FACE BUTTONS Accept, Back and other system options (Right-handed mode) FACE BUTTONS Accept, Back and other system options (Left-handed mode) XBOX CONTROLS Change view, share your content and open menus. - Page 11 PC NAVIGATION In PC Mode the Touchpad can be used to control the mouse cursor. Clicking the Touchpad will replicate the left-click of a mouse.
-
Page 12: Trim Wheel
FMD - HOME SCREEN Current firmware version Stick orientation Input mode Current active axis profile Trim wheel position Chronometer Home Screen provides an overview of the current stick configuration. It shows the current input mode, axis profile, trim mode and orientation. It also a serves as a chronometer for timing your flight waypoints. Simply right-click the configuration wheel to start/stop the timer and left-click the configuration wheel to reset the timer. - Page 13 FMD - STICK PERFORMANCE Stick Performance gives you the ability get live feedback from the stick via the Test option and adjust axis response curves via the Profile option. Profiles come in three versions: • STANDARD - Unaltered input data for true 1:1 control. •...
- Page 14 Access full control of audio on Xbox and PC. Adjust game volume, Chat Mix*, Mic Monitoring and Mic Status without pausing your flight. Enhance your experience by choosing one of 5 Turtle Beach Audio presets, including Superhuman Hearing. *Chat Mix will only work on Xbox consoles.
-
Page 15: Trim Wheel
FMD - TRIM WHEEL This feature gives you the ability get live feedback from the Trim Wheel via the Indicator option and input preference via the Response option. The Trim Wheel comes in in two versions: • ANALOGUE AXIS Gives precision control for aircraft that use wheel based trim controls. - Page 16 FMD - RUDDER LOCK Rudder lock blocks the input from the twist action of the stick. This can be used in situations where yaw control is not required, or if the stick is being used in conjunction with a set of Rudder Pedals.
- Page 17 FMD - PRO AIM Integrated from our range of console controllers, the Pro Aim feature helps to temporarily reduce the sensitivity of the main stick axes. This is useful for making critical in-flight adjustments or honing your aim on an enemy fighter. The Set Button option enables any of the programmable buttons to be set to initiate the Pro Aim feature.
- Page 18 FMD - ORIENTATION In conjunction with the adjustable wrist rest, the Orientation feature helps improve the Flightstick experience whether you are right or left-handed. By default, the product is set for Right-handed operation. When set to Left-handed operation, the underlying button and axis mappings of the base controls swap sides. This means if you operate the stick with your left hand, you can still easily access the ABXY controls and primary throttle control with your Right hand.
- Page 19 FMD - TOUCHPAD SENSITIVITY Adjusts the overall sensitivity response of the touchpad cursor input. The range is from low to high, with the top value being very fast movement, and the lowest being no movement at all.
- Page 20 FMD - LIGHTING Customize the look of the product by selecting from a range of colour themes. Also tune the brightness of the LEDs and the FMD to your preference.
- Page 21 FMD - BLUETOOTH Connect the Flightstick to a compatible smart device via Bluetooth and use the companion app to enable real-time customization of product features. Smart device companion app requires Android 8.0, iOS 15.4 or later.
- Page 22 EXPANSION PORTS The product includes two additional USB-C ports next to the main connection port. These are expansion ports to be used for future VelocityOne peripherals. Currently, there are no additional products to use in the ports. When available, we will issue a firmware update to the product to enable use with additional accessories in our range.
- Page 23 Search for Velocityone Flightstick Companion App on Microsoft Store, Play Store and App Store. Smart device companion app requires Android 8.0, iOS 15.4 or later. Not seeing what you’re looking for here? Visit turtlebeach.com/support for the latest Tech Support information.
- Page 24 OEM Regulatory Guidance document at the following URL http://www.turtlebeach.com/ homologation or contact Turtle Beach directly. Federal Communications Commission (FCC) Compliance Notices This section includes the following FCC statements for the Velocityone Flightstick: • Non-Modification Statement • Class B Interference Statement •...
- Page 25 Non-Modification Statement Use only the supplied Internal antenna. Unauthorized antenna, modifications, or attachments could damage the Velocityone Flightstick and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
- Page 26 NCC警語: 取得審驗證明之低功率射頻器材， 非經核准， 公司、 商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信 ； 經發現有干擾現象時， 應立即停用， 並改善至無干擾時方得繼續使用。 前述合法通信， 指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、 科學及醫療用電波輻射性電機設備之干擾。 Declaration of Conformity Marking by this symbol: declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Operation frequency: 2402-2480MHz, Max output: 5.21dBm This equipment meets the following conformance standards: FCC PART15B...
- Page 27 Voyetra Turtle Beach Inc. is obligated as a producer with a main activity of selling under The Producer Responsibility Obligations (Packaging Waste) Regulations 2007. To fulfil our obligation we are registered with Comply Direct and their Recycling Room. Here you will find advice and information on packaging waste management, recycling symbols and the waste hierarchy principles of reduce, reuse and recycle.
- Page 28 WWW.TURTLEBEACH.COM TBS-0722-05-QSG-EN-A...
